Schurter 2570 IEC Appliance Terminals
Schurter 2570 IEC Appliance Terminals are designed to allow connections to the equipment circuitry using a separate detachable AC line cord. These Schurter terminals have a high-quality Polyamide 6 (PA6) housing which has a flammability rating of UL 94V-0. The 2570 terminals have an operating temperature range of -25°C to +70°C, a panel thickness of 0.6mm to 2mm for snap-in, and 1.5mm for split-panel. These terminals are available in inlet C8 solder, quick connect, and PCB variants and are suitable for appliances with protection class II.
Features
- 2.5A / 250VAC @ 50Hz IEC rating
- UL/CSA rating
- 2.5A / 250VAC @ 60Hz
- 7A / 125VAC @ 60Hz
- Dielectric strength
- >2.5kVAC between L-N
- >3kVAC between L/N-PE
- -25°C to +70°C operating temperature range
- Solder, quick connect, or PCB terminal
- Insulation cover is suitable for appliances with protection class II
- Panel thickness
- 0.6mm to 2mm for snap-in
- 1.5mm for split-panel

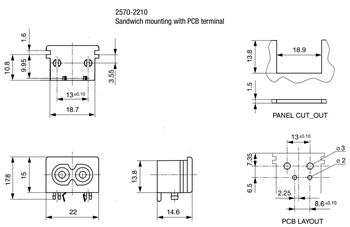

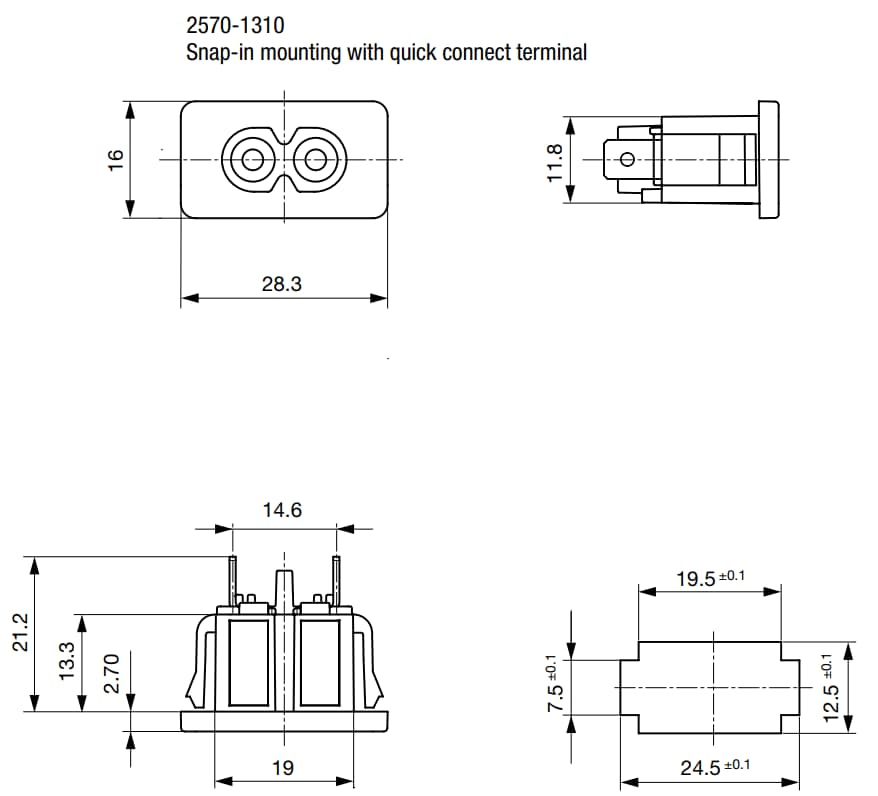

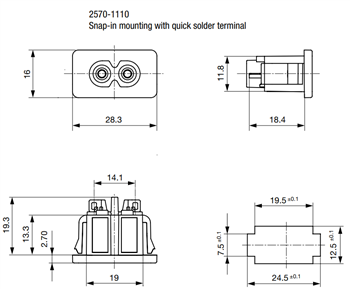

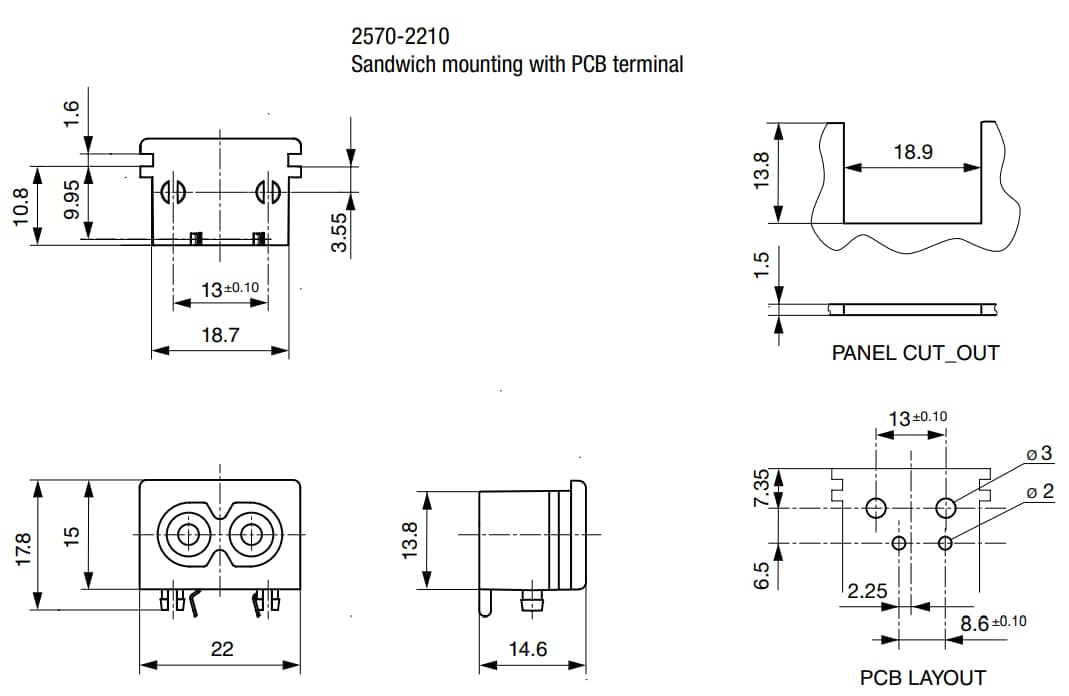

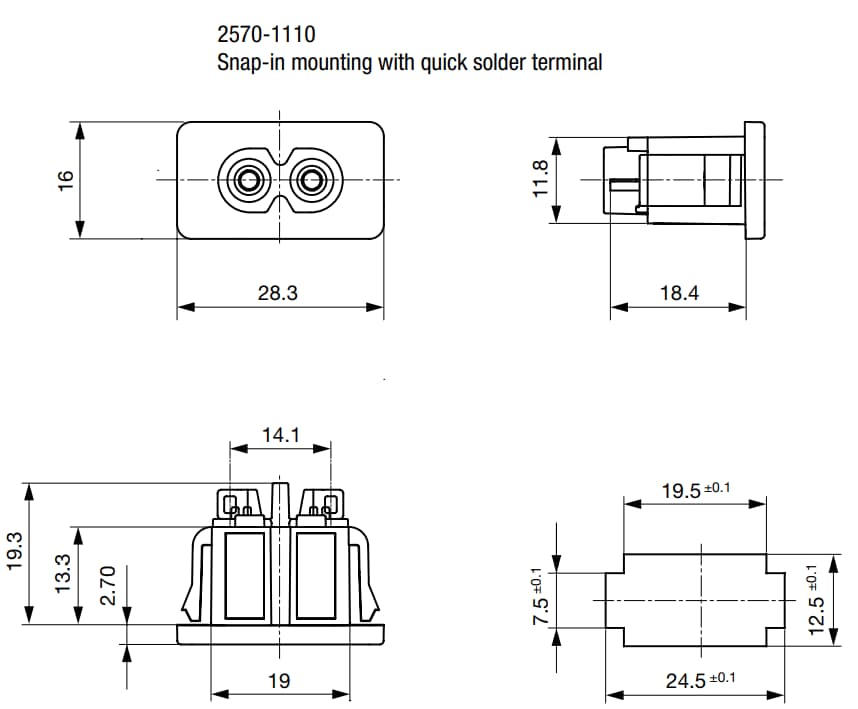

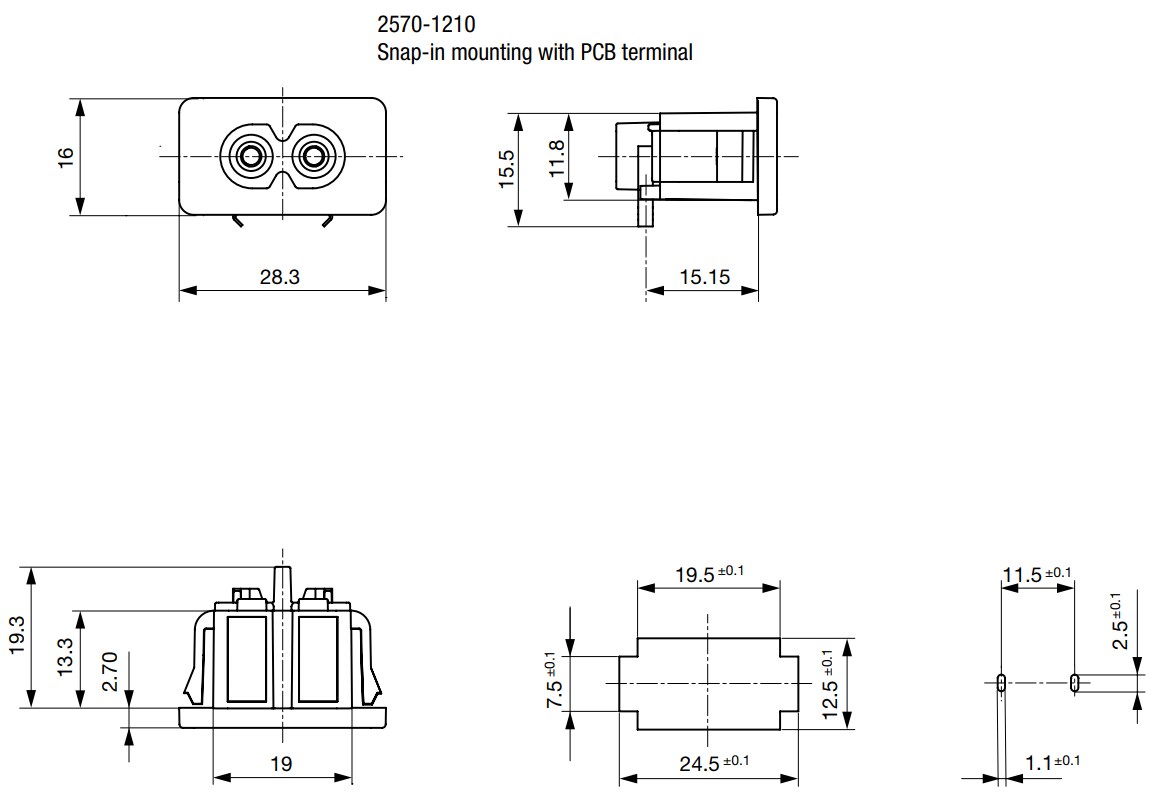

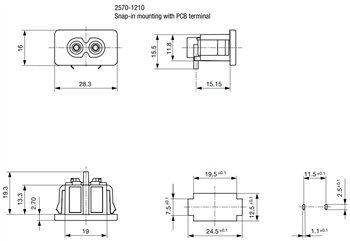

Terminal Dimensions (mm)
View Results ( 4 ) Page
| Part Number | Description |
|---|---|
| 4300.0102 | AC Power Entry Modules APPLIANCE INLET C8 SOLDER TERMINAL |
| 4300.0103 | AC Power Entry Modules APPLIANCE INLET C8 PCB TERMINAL SNAP N |
| 4300.0104 | AC Power Entry Modules APPLIANCE INLET C8 PCB TERMINAL SANWICH |
| 4300.0105 | AC Power Entry Modules APPLIANCE INLET C8 QUICK CONNECT TERMNL |
Published: 2018-02-09
| Updated: 2022-08-10
