Nisshinbo NJU7725x & NJU7726x High-Speed CMOS Comparators

Nisshinbo NJU7725x and NJU7726x High-Speed CMOS Comparators operate from a low 2.7V to 5.5V voltage and a low supply current of only 140µA/ch. This feature makes them ideal for battery-powered applications. The NJU7725x and NJU7726x are based on Dynamic Transient Stabilizer™ technology, which suppresses fluctuations in propagation delay time even if the reference voltage for voltage detection fluctuates. The NJU7725 provides a Push-Pull output, and the NJU7726x provides an Open-Drain output.

The Nisshinbo NJU7725x and NJU7726x High-Speed CMOS Comparators are available in ultra-small, leadless packages measuring 1.6mm x 1.6mm (DFN6) and 2.0mm x 2.0mm (DFN8). The devices are also offered in industrial standard SOT-23-5, SC-88A, and MSOP8 (VSP8) leaded packages.

Features

  • 2.7V to 5.5V supply voltage
  • 140µA/ch supply current
  • Propagation delay (TPLH / TPHL)
    • NJU7725x: 42ns / 35ns
    • NJU7726x: 125ns / 32ns
  • Rail-to-Rail common-mode input voltage range: 0.2V beyond supply rails
  • Dynamic Transient Stabilizer offers Rail-to-Rail input with no propagation delay fluctuation
  • Output
    • NJU7725x: Push-Pull
    • NJU7726x: Open-Drain
  • Output drive current
    • Sink (VO = 1V) 40mA
    • Source (VO = 4V, NJU7725x) 37mA
  • -40°C to 125°C operating temperature range
  • Package options
  • Leadless small packages
    • 1.6mm x 1.6mm DFN6-G1 (ESON6-G1)
    • 2.0mm x 2.0mm DFN8-U1 (ESON8-U1)
  • Standard leaded packages
    • SOT-23-5
    • SC-88A
    • MSOP8 (VSP8)

Applications

  • Protection circuit for overvoltage detection, overcurrent detection, or overheat detection
  • Window comparators
  • LED drivers
  • Relay drivers
  • Electronic equipment
  • Voltage level translators

Block Diagram

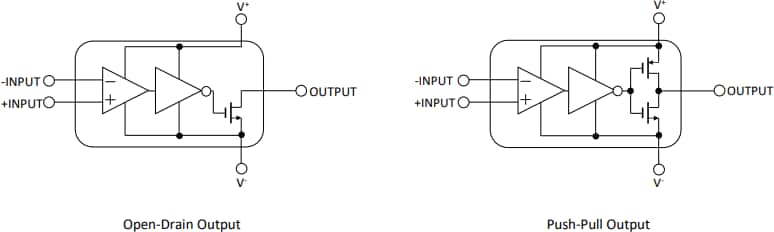

Block Diagram - Nisshinbo NJU7725x & NJU7726x High-Speed CMOS Comparators

Typical Characteristics

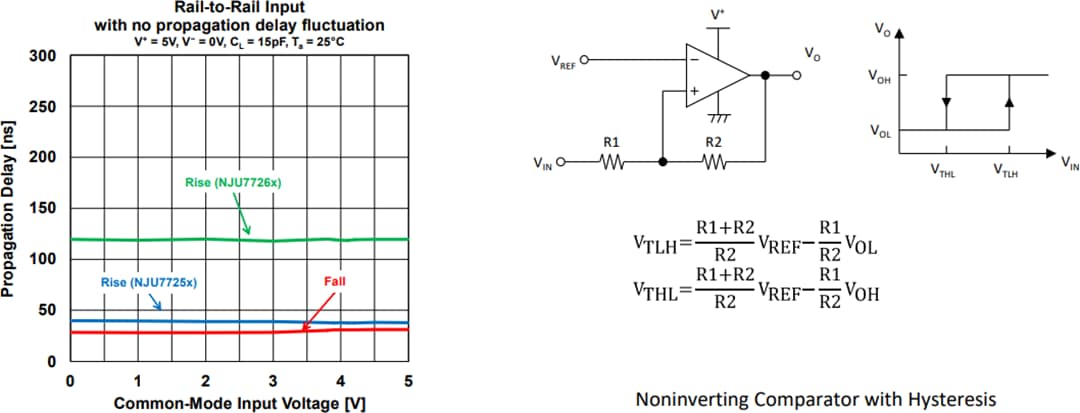

Performance Graph - Nisshinbo NJU7725x & NJU7726x High-Speed CMOS Comparators
