TRA6927M3NW-001

Name: TE Connectivity TRA6927M3NW-001
Brand: TE Connectivity
SKU: 814-TRA6927M3NW-001
Price: 46.84 EUR
Availability: InStock

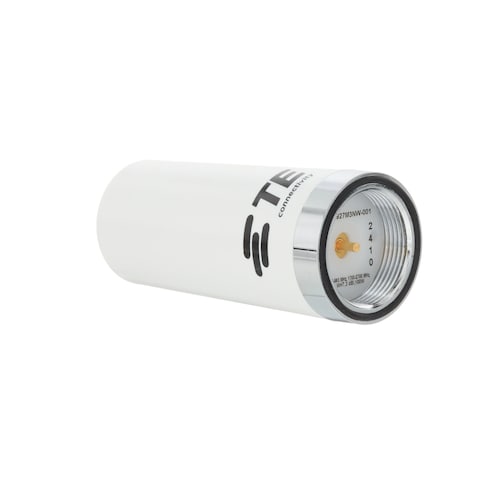

Images are for reference only
See Product Specifications

Mouser No:

814-TRA6927M3NW-001

Mfr. No:

TRA6927M3NW-001

Mfr.:

TE Connectivity

Description:

Antennas OMNI,Ph,NMO,698/1710 MHz

Datasheet:

TRA6927M3NW-001 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity TRA6927M3NW-001

In Stock: 18

Stock:: 18 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 1 Week Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	46,84 €	46,84 €
	38,54 €	385,40 €
	33,74 €	843,50 €
	31,18 €	3.118,00 €
	30,71 €	7.677,50 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Antennas
RoHS:
Product Type:	Cellular Antennas - GSM, LTE, 2G/3G/4G/5G
Product:	Outdoor Antennas
Type:	Passive Antenna
Minimum Frequency:	698 MHz
Maximum Frequency:	2.7 GHz
Protocol - Bluetooth, BLE - 802.15.1:	Bluetooth
Protocol - Cellular, NBIoT, LTE:	3G/4G, Cellular (NBIoT, LTE), GSM
Protocol - WiFi - 802.11:	WiMAX
Protocol - ANT, Thread, Zigbee - 802.15.4:	802.15.4 (ANT, Thread, Zigbee), 802.16
Mechanical Style:	Whip
Style:	Straight
Gain:	3.5 dBi, 5.5 dBi, 4.6 dBi
Impedance:	50 Ohms
VSWR:	2.5:1, 2.0:1, 2.0:1, 2.5:1, 2.0:1
Power Rating:	100 W
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 85 C
Number of Bands:	5 Band
Mounting Style:	NMO Mount
Termination Style:	Connector
Antenna Connector Type:	NMO Connector
Centre Frequency:	752 MHz, 883 MHz, 1.91 GHz, 2.14 GHz, 2.5 GHz
Application:	Cellular
Length:	3.65 cm
IP Rating:	IP67
Series:	TRA6927M3
Brand:	TE Connectivity
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MY
Factory Pack Quantity:	1
Subcategory:	Antennas
Tradename:	Phantom
Unit Weight:	120,528 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

TRA6927M3NW-001 Datasheet (PDF)

This functionality requires JavaScript to be enabled.

CNHTS:: 8529101000
USHTS:: 8517710000
ECCN:: 5A991.g

4G/3G Multiband Phantom® Antennas

TE Connectivity's (TE) 4G/3G Multiband Phantom^® Antennas are mechanically robust, suitable for both indoor as well as outdoor applications with wide bandwidth and a low angle radiation pattern. These multiband antennas operate simultaneously in 3G and 4G frequency bands, including CatM, NB-IoT, and full data-rate LTE. The multiband antennas are available in both on-ground-plane and no-ground-plane applications. This makes them suitable for various use cases, such as plastic/fiberglass enclosed IoT devices, vehicular/transport, or even external mounting on a bracket. These TE multiband antennas feature a 5-year warranty and are designed for data communication in applications such as public safety, transportation, IoT, and Machine-to-Machine (M2M) markets.
