5787430-1

Name: TE Connectivity 5787430-1
Brand: TE Connectivity
SKU: 571-5787430-1
Price: 3.61 EUR
Availability: InStock

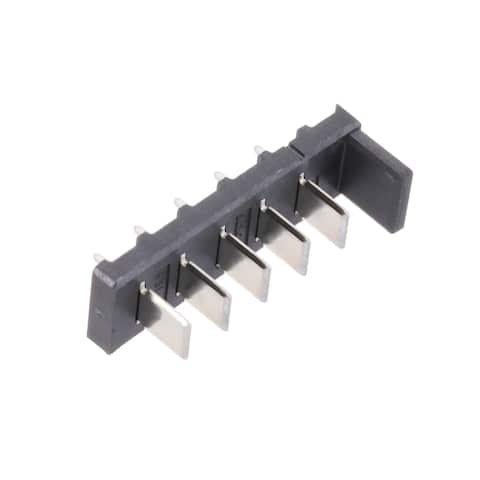

Images are for reference only
See Product Specifications

Mouser No:

571-5787430-1

Mfr. No:

5787430-1

Mfr.:

TE Connectivity

Description:

Headers & Wire Housings 5MM PTCH VRT SLDR R/HAND PLG BATT HLDR

Datasheet:

5787430-1 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity 5787430-1

In Stock: 4.370

Stock:: 4.370

Can Dispatch Immediately

An unexpected error occurred. Please try again later.
On Order:: 3.558
Factory Lead Time:: 1

Week Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	3,61 €	3,61 €
	3,35 €	33,50 €
	3,24 €	81,00 €
	3,13 €	156,50 €
	2,91 €	349,20 €
	2,60 €	624,00 €
	2,58 €	1.548,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Shrouded
Number of Positions:	5 Position
Pitch:	5 mm (0.197 in)
Number of Rows:	1 Row
Mounting Style:	SMD/SMT
Termination Style:	Solder
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Contact Plating:	Tin
Series:	AMPMODU MOD II
Tradename:	AMPMODU
Application:	Board-to-Board
Minimum Operating Temperature:	- 30 C
Maximum Operating Temperature:	+ 70 C
Packaging:	Tray
Brand:	TE Connectivity
Contact Material:	Brass
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Current Rating:	7 A
Housing Colour:	Black
Housing Material:	Polyphthalamide
Latching Type:	Unlatched
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	120
Subcategory:	Headers & Wire Housings
Voltage Rating:	12 V
Unit Weight:	3 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

5787430-1 Datasheet (PDF)

Images

Models

5787430-1 Symbol & Footprint by SnapMagic

RoHS Certificate (PDF)

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

AMPMODU Interconnection System

TE Connectivity's (TE) AMPMODU Interconnection System provides connections with a unique modular concept, utilizing precision-formed receptacle contacts and mating posts. Mating of the post and receptacle contacts of this system is very tolerant. This is made possible by a post with a burr-free lead-in and a receptacle contact featuring double cantilever beams and anti-overstress stops.

AMPMODU MOD II Connectors

TE Connectivity's (TE) AMPMODU MOD II Connectors feature a 0.100" (2.54mm) pitch with shrouded and unshrouded headers in surface-mount and through-hole configurations. AMPMODU MOD II headers are available in single- or double-row configurations with 0.025" square posts and a current rating of 3A max per contact. TE AMPMODU MOD II headers are mateable with receptacle housings from the AMPMODU MOD IV and AMPMODU MTE product lines.
