5747843-6

Name: TE Connectivity 5747843-6
Brand: TE Connectivity
SKU: 571-57478436
Price: 14.84 EUR
Availability: InStock

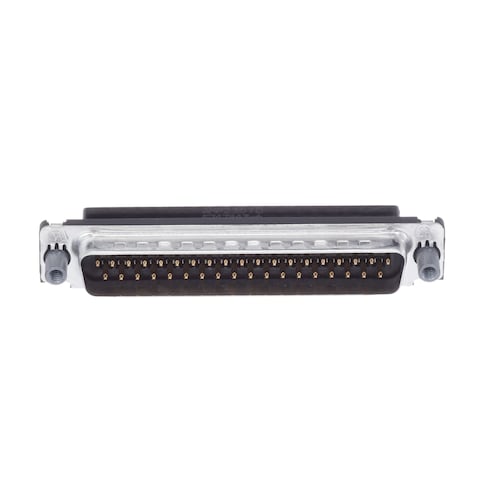

Images are for reference only
See Product Specifications

Mouser No:

571-57478436

Mfr. No:

5747843-6

Mfr.:

TE Connectivity

Description:

D-Sub Standard Connectors 37P PLUG PCB/MNT HD-20 RIDHT ANGLE

Datasheet:

5747843-6 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity 5747843-6

In Stock: 211

Stock:: 211 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 10 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	14,84 €	14,84 €
	13,59 €	135,90 €
	12,74 €	318,50 €
	11,39 €	592,28 €
	10,60 €	1.102,40 €
	10,47 €	2.722,20 €
	10,34 €	5.376,80 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	D-Sub Standard Connectors
RoHS:
Number of Positions:	37 Position
Contact Gender:	Without Pin Contacts
Termination Style:	Through Hole
Mounting Style:	Board Lock
Mounting Angle:	Right Angle
Number of Rows:	2 Row
Gender:	Male
Contact Plating:	Gold
Type:	Plug
Shell Size:	4 (C)
Shell Material:	Steel
Shell Plating:	Tin
Filtered:	Unfiltered
Series:	HD-20
Brand:	TE Connectivity
Contact Material:	Brass
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MX
Product Type:	D-Sub Connectors - Standard Density
Factory Pack Quantity:	52
Subcategory:	D-Sub Connectors
Tradename:	AMPLIMITE
Unit Weight:	79 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

5747843-6 Datasheet

Images

Models

5747843-6 Symbol & Footprint by SnapMagic

PCN

RoHS Certificate (PDF)

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 85366999
BRHTS:: 85366990
ECCN:: EAR99

AMPLIMITE D-Subminiature Connectors

TE Connectivity's (TE) AMPLIMITE D-Subminiature Connectors are compact pin and socket connectors designed especially for high-density packages. The D-Subminiature connectors are designed for multiple applications along with specialized accessories that provide a cost-effective solution for complex applications. TE AMPLIMITE Standard D-Subminiature connectors are available with MIL-DTL-24308 qualification.

AMPLIMITE Standard D-Subminiature Connectors

TE Connectivity's (TE) AMPLIMITE Standard D-Subminiature Connectors feature a UL 94V-0 rating, 4 to 40 threaded inserts, and HD-20 and HD-22 availability. AMPLIMITE Standard Connectors have front metal, full metal, and plastic shell features that allow the choice of connectors with suitable durability. TE AMPLIMITE Standard D-Subminiature Connectors have a rugged, easy-to-use design ideal for industrial controls, factory automation, base stations, and consumer electronics.
