5520257-2

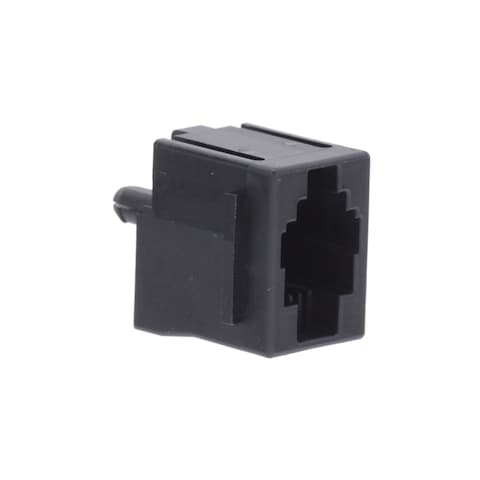

Name: TE Connectivity 5520257-2
Brand: TE Connectivity
SKU: 571-5520257-2
Price: 1.28 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-5520257-2

Mfr. No:

5520257-2

Mfr.:

TE Connectivity

Description:

Modular Connectors / Ethernet Connectors HANDSET

Datasheet:

5520257-2 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 3.717

Stock:: 3.717 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 1 Week Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	1,28 €	1,28 €
	1,14 €	11,40 €
	1,01 €	25,25 €
	0,877 €	87,70 €
	0,839 €	251,70 €
	0,826 €	495,60 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Modular Connectors / Ethernet Connectors
RoHS:
Product:	Connectors
Type:	Modular
Gender:	Jack (Female)
USOC Codes:	RJ22
Configuration:	1x1
Number of Positions/Contacts per Port:	4P4C
Shielding:	Unshielded
Performance Category:	Cat 3
Mounting Style:	Through Hole
Mounting Angle:	Vertical
Termination Style:	Solder
Current Rating:	200 mA, 1.5 A
Voltage Rating:	150 V
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 85 C
Color:	Black
Tab Direction:	Top Entry
Series:	Single Port Modular Jack
Application:	10 Base-T
Brand:	TE Connectivity
Contact Material:	Phosphor Bronze
Contact Plating:	Gold
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Flammability Rating:	UL 94 V-0
Number of Ports:	1 Port
Number of Positions:	4 Position
Product Type:	Modular Connectors / Ethernet Connectors
Factory Pack Quantity:	150
Subcategory:	Modular Connectors / Ethernet Connectors
Unit Weight:	3,172 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

5520257-2 Datasheet

Images

Models

5520257-2 Symbol & Footprint by SnapMagic

PCN

Product Change Notification (PDF)

RoHS Certificate (PDF)

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

10 Gig Modular Jacks

TE Connectivity's standard modular jacks, a key communications tool, allow for global standardization of network connections. The popularity of this interconnect is based on its proven reliability and ease of use. TE Connectivity's diverse product portfolio may have the solution you require. We have recently extended our portfolio, introducing a 10 Gigabit Modular Jack with or without integrated magnetics.
