284123-1

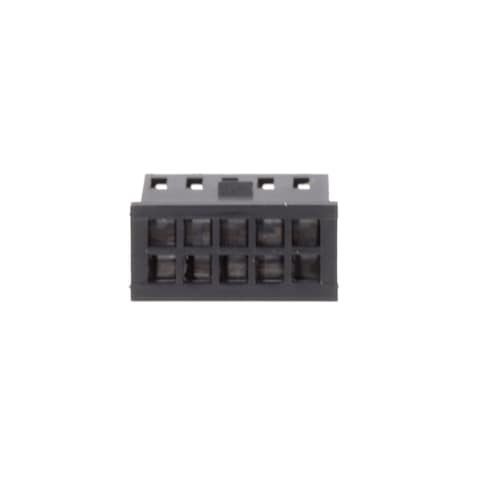

Name: TE Connectivity 284123-1
Brand: TE Connectivity
SKU: 571-284123-1
Price: 1.33 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-284123-1

Mfr. No:

284123-1

Mfr.:

TE Connectivity

Description:

Headers & Wire Housings 10P (5X2) AMPMODU MOD II RC

Datasheet:

284123-1 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity 284123-1

In Stock: 2.594

Stock:: 2.594 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 30 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	1,33 €	1,33 €
	1,14 €	11,40 €
	0,972 €	97,20 €
	0,86 €	430,00 €
	0,819 €	819,00 €
	0,729 €	3.645,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Headers & Wire Housings
RoHS:
Product:	Wire Housings
Type:	Receptacle Housing
Number of Positions:	5 Position
Pitch:	2.54 mm (0.1 in)
Number of Rows:	2 Row
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Contact Gender:	Socket (Female)
Series:	AMPMODU MOD II
Tradename:	AMPMODU
Application:	Wire-to-Board
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 80 C
Packaging:	Bulk
Brand:	TE Connectivity
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	1000
Subcategory:	Headers & Wire Housings
Unit Weight:	20 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

284123-1 Datasheet (PDF)

Images

PCN

Product Change Notification (PDF)

RoHS Certificate (PDF)

TARIC:: 8536699099
CAHTS:: 8536900020
USHTS:: 8538906000
JPHTS:: 8536900002
BRHTS:: 85369090
ECCN:: EAR99

AMPMODU Interconnection System

TE Connectivity's (TE) AMPMODU Interconnection System provides connections with a unique modular concept, utilizing precision-formed receptacle contacts and mating posts. Mating of the post and receptacle contacts of this system is very tolerant. This is made possible by a post with a burr-free lead-in and a receptacle contact featuring double cantilever beams and anti-overstress stops.

AMPMODU MOD II Connectors

TE Connectivity's (TE) AMPMODU MOD II Connectors feature a 0.100" (2.54mm) pitch with shrouded and unshrouded headers in surface-mount and through-hole configurations. AMPMODU MOD II headers are available in single- or double-row configurations with 0.025" square posts and a current rating of 3A max per contact. TE AMPMODU MOD II headers are mateable with receptacle housings from the AMPMODU MOD IV and AMPMODU MTE product lines.
