2204535-1

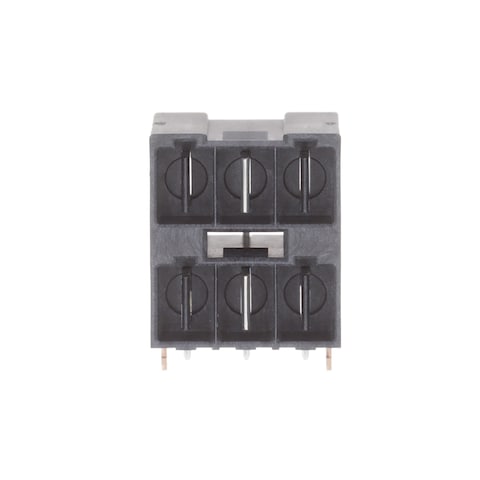

Name: TE Connectivity 2204535-1
Brand: TE Connectivity
SKU: 571-2204535-1
Price: 8.21 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-2204535-1

Mfr. No:

2204535-1

Mfr.:

TE Connectivity

Description:

Heavy Duty Power Connectors 2X3P STACKED RA HEADER,SOLDER

Datasheet:

2204535-1 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity 2204535-1

In Stock: 285

Stock:: 285 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 11 Weeks Estimated factory production time for quantities greater than shown.

Quantities greater than 285 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	8,21 €	8,21 €
	6,43 €	64,30 €
	6,29 €	125,80 €
	6,25 €	3.125,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Heavy Duty Power Connectors
RoHS:
Series:	ELCON Mini
Product:	Headers
Current Rating:	40 A
Number of Positions:	6 Position
Termination Style:	Through Hole
Voltage Rating:	400 V
Housing Material:	Liquid Crystal Polymer (LCP)
Contact Plating:	Silver
Contact Material:	Copper Alloy
Tradename:	ELCON
Brand:	TE Connectivity
Contact Gender:	Pin (Male)
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Maximum Operating Temperature:	+ 130 C
Minimum Operating Temperature:	- 40 C
Mounting Angle:	Right Angle
Mounting Style:	Press Fit
Number of Rows:	2 Row
Product Type:	Heavy Duty Power Connectors
Factory Pack Quantity:	100
Subcategory:	Power Connectors
Unit Weight:	2 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

2204535-1 Datasheet

Models

2204535-1 Symbol & Footprint by SnapMagic

RoHS Certificate (PDF)

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 85366999
BRHTS:: 85366990
ECCN:: EAR99

ELCON Mini Power Connectors & Cable Assemblies

TE Connectivity's (TE) ELCON Mini Power Connectors and Cable Assemblies support up to 40A current per contact and 400V_AC/DC voltage rating in an 8mm height form factor. ELCON Mini features a high-reliability interface and low resistance (0.3mΩ maximum contact resistance). These power connectors offer positive metal latch retention (supporting pull forces up to 100N) and optional coding contacts for sense-and-detect functionality. TE's ELCON Mini connectors also provide press-fit attachment options, original solder tail parts, multiple position configurations, and right-angle or vertical mounting types. ELCON Mini cable assemblies offer standard or high-flex designs for easier routability. Typical applications for the ELCON Mini include telecom base stations, power distribution, power supplies, servers, switches, routers, storage systems, and high-performance computing.
