2029181-3

Name: TE Connectivity 2029181-3
Brand: TE Connectivity
SKU: 571-2029181-3
Price: 0.93 EUR
Availability: InStock

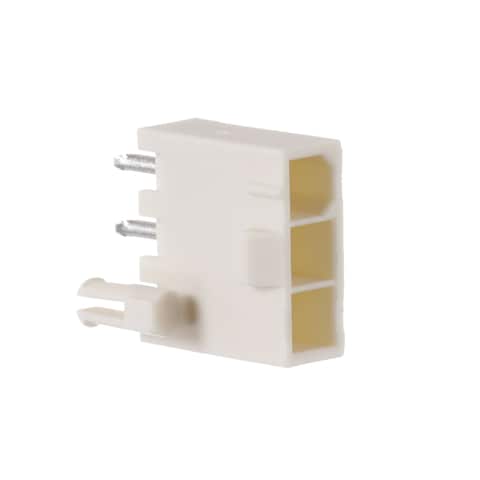

Images are for reference only
See Product Specifications

Mouser No:

571-2029181-3

Mfr. No:

2029181-3

Mfr.:

TE Connectivity

Description:

Power to the Board 3P VERT PLUG ASSY SNG ROW W/O DRN HOLE

Datasheet:

2029181-3 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity 2029181-3

In Stock: 8

Stock:: 8 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 16 Weeks Estimated factory production time for quantities greater than shown.

Quantities greater than 8 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	0,937 €	0,94 €
	0,795 €	7,95 €
	0,675 €	67,50 €
	0,608 €	304,00 €
	0,601 €	1.202,00 €
	0,543 €	2.715,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Power to the Board
RoHS:
Product Type:	Power to the Board
Contact Gender:	Pin (Male)
Current Rating:	9 A
Voltage Rating:	600 V
Number of Positions:	3 Position
Mounting Style:	Through Hole
Termination Style:	Solder Pin
Pitch:	4.2 mm
Packaging:	Bulk
Tradename:	VAL-U-LOK
Brand:	TE Connectivity
Contact Material:	Brass
Contact Plating:	Tin
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Housing Colour:	White
Housing Material:	Nylon
Maximum Operating Temperature:	+ 105 C
Minimum Operating Temperature:	- 40 C
Mounting Angle:	Straight
Number of Rows:	1 Row
Product:	Headers
Factory Pack Quantity:	1000
Subcategory:	Power Connectors
Unit Weight:	1,147 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

2029181-3 Datasheet

Images

RoHS Certificate (PDF)

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Glow Wire Capable Connectors

TE Connectivity's (TE) Glow Wire Capable Connectors are designed to meet industry safety and environmental requirements. TE's Glow Wire Capable Connectors offer a wide variety of housing and headers available in wire-to-wire, free-hanging, panel mount, and wire-to-board configurations. Glow Wire products comply with industry requirements and are evaluated and tested to meet the specifications of the IEC Glow Wire Test on material flammability and fire resistance. These connectors help designers meet the flammability requirements of IEC 60335-1.
