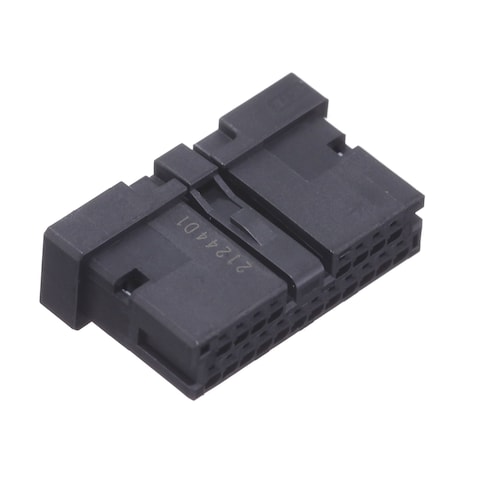

2-2834461-0

TE Connectivity
571-2-2834461-0
2-2834461-0

Mfr.:

Description:
Headers & Wire Housings MINI DYNAMIC REC HSG ASSY 20P X-KEY BLK

Datasheet:
ECAD Model:
Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.
More Information
Learn more about TE Connectivity 2-2834461-0

In Stock: 341

Stock:
341 Can Dispatch Immediately
Factory Lead Time:
14 Weeks Estimated factory production time for quantities greater than shown.
Minimum: 1   Multiples: 1
Unit Price:
-,-- €
Ext. Price:
-,-- €
Est. Tariff:

Pricing (EUR)

Qty. Unit Price
Ext. Price
3,66 € 3,66 €
3,57 € 35,70 €
3,49 € 87,25 €
3,41 € 170,50 €
3,06 € 306,00 €
2,72 € 489,60 €

Product Attribute Attribute Value Select Attribute
TE Connectivity
Product Category: Headers & Wire Housings
RoHS:
Wire Housings
Receptacle Assembly
20 Position
1.8 mm (0.071 in)
2 Row
2.75 mm (0.108 in)
Cable Mount / Free Hanging
Crimp
Straight
Dynamic Mini
DYNAMIC SERIES
26 AWG to 22 AWG
- 40 C
+ 125 C
Brand: TE Connectivity
Country of Assembly: Not Available
Country of Diffusion: Not Available
Country of Origin: CN
Current Rating: 3 A
Housing Colour: Black
Housing Gender: Receptacle
Housing Material: Polybutylene Terephthalate (PBT)
Insulation Resistance: 1 GOhms
Product Type: Headers & Wire Housings
Factory Pack Quantity: 180
Subcategory: Headers & Wire Housings
Voltage Rating: 250 VAC, 125 VDC
Products found:
To show similar products, select at least one checkbox
Select at least one checkbox above to show similar products in this category.
Attributes selected: 0

Datasheet

PCN

This functionality requires JavaScript to be enabled.

TARIC:
8547200000
USHTS:
8538906000
ECCN:
EAR99

Dynamic Series Ruggedized Connectors

TE Connectivity's Dynamic Series Ruggedized Connectors are designed for use in control systems and in a wide range of applications requiring high-density, signal, and power. The series features a ruggedized, industrialized package that provides connector solutions ranging from signal-level circuitry to power circuit connectivity. The portfolio includes wire-to-board, wire-to-panel, and wire-to-wire connectors with a diverse range of housings. Standard crimp and spring clamp variations of parts are available. The standardized contacts limit the amount of application tooling required. A centralized wiring system saves time and costs by offering a modular capability that allows for expansion as needed. Typical applications for TE Dynamic Series Ruggedized Connectors include industrial control, Human Machine Interface (HMI), data communication, robotics, power distribution, and more.

Dynamic Mini Series Connectors

TE Connectivity's (TE) Dynamic Mini Series Connectors are designed for signal transmission on the PCB and have a lower profile than the Dynamic D1000, providing valuable extra space on the board. TE's Dynamic Series Connectors perform to LV 214 test requirements. A positive audible locking feature makes life easier for service engineers carrying out installation and maintenance in the field. Housings in high-temperature nylon permit reflow soldering, speeding up system assembly for increased cost effectiveness. High reliability comes from the high retention force that the Mini Dynamic Series Connectors exhibit between the contact and the housing, thanks to their "second lock" design. The Mini Dynamic Series is smaller in size but offers the same performance as existing bigger alternatives.
