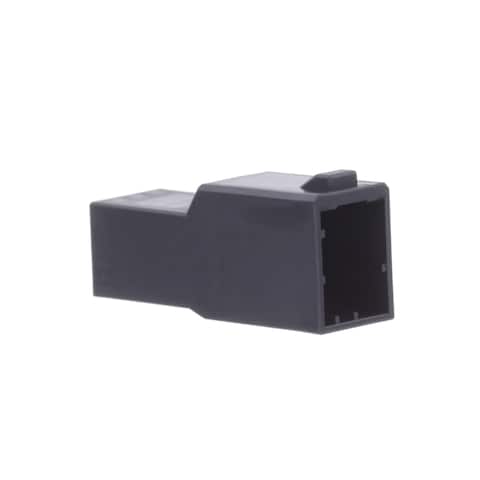

2-1318115-3

Name: TE Connectivity 2-1318115-3
Brand: TE Connectivity
SKU: 571-2-1318115-3
Price: 0.95 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-2-1318115-3

Mfr. No:

2-1318115-3

Mfr.:

TE Connectivity

Description:

Headers & Wire Housings TAB HSG 6P F/H Y D2100

Datasheet:

2-1318115-3 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity 2-1318115-3

In Stock: 882

Stock:: 882 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 12 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	0,955 €	0,96 €
	0,854 €	8,54 €
	0,844 €	211,00 €
	0,536 €	643,20 €
	0,498 €	1.394,40 €
	0,474 €	2.464,80 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Headers & Wire Housings
RoHS:
Product:	Wire Housings
Type:	Plug Housing
Number of Positions:	6 Position
Pitch:	2.5 mm (0.098 in)
Number of Rows:	2 Row
Row Spacing:	3.75 mm (0.148 in)
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Contact Gender:	Pin (Male)
Series:	D-2000
Tradename:	DYNAMIC SERIES
Application:	Wire-to-Wire
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 105 C
Packaging:	Bulk
Brand:	TE Connectivity
Contact Type:	Tab
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	JP
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Housing Gender:	Plug
Housing Material:	Polyester
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	400
Subcategory:	Headers & Wire Housings
Voltage Rating:	250 V
Unit Weight:	3,600 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

2-1318115-3 Datasheet

Images

PCN

RoHS Certificate (PDF)

TARIC:: 8536901000
CNHTS:: 8547200000
CAHTS:: 8536690020
USHTS:: 8538906000
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Dynamic Series Ruggedized Connectors

TE Connectivity's Dynamic Series Ruggedized Connectors are designed for use in control systems and in a wide range of applications requiring high-density, signal, and power. The series features a ruggedized, industrialized package that provides connector solutions ranging from signal-level circuitry to power circuit connectivity. The portfolio includes wire-to-board, wire-to-panel, and wire-to-wire connectors with a diverse range of housings. Standard crimp and spring clamp variations of parts are available. The standardized contacts limit the amount of application tooling required. A centralized wiring system saves time and costs by offering a modular capability that allows for expansion as needed. Typical applications for TE Dynamic Series Ruggedized Connectors include industrial control, Human Machine Interface (HMI), data communication, robotics, power distribution, and more.
