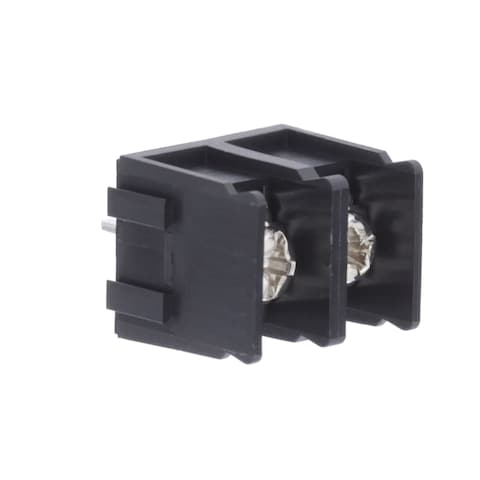

1977477-2

TE Connectivity
571-1977477-2
1977477-2

Mfr.:

Description:
Barrier Terminal Blocks Module Dual Barrier, .325 CL, 2 Pos.

Datasheet:
ECAD Model:
Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.
More Information
Learn more about TE Connectivity 1977477-2

In Stock: 2.340

Stock:
2.340 Can Dispatch Immediately
Factory Lead Time:
24 Weeks Estimated factory production time for quantities greater than shown.
Minimum: 1   Multiples: 1
Unit Price:
-,-- €
Ext. Price:
-,-- €
Est. Tariff:

Pricing (EUR)

Qty. Unit Price
Ext. Price
2,30 € 2,30 €
1,65 € 16,50 €
1,20 € 30,00 €
1,13 € 56,50 €
1,09 € 109,00 €
0,972 € 243,00 €
0,912 € 456,00 €

Product Attribute Attribute Value Select Attribute
TE Connectivity
Product Category: Barrier Terminal Blocks
RoHS:
Barrier Terminal Blocks
2 Position
8.26 mm
15 A
300 V
22 AWG
16 AWG
Dual Barrier Strip
1 Row
Through Hole
Black
4DB
Bulk
Brand: TE Connectivity
Country of Assembly: Not Available
Country of Diffusion: Not Available
Country of Origin: TW
Flammability Rating: UL 94 V-0
Housing Material: Polyamide (PA)
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 40 C
Mounting Angle: Vertical
Product Type: Barrier Terminal Blocks
Factory Pack Quantity: 500
Subcategory: Terminal Blocks
Termination Style: Screw
Unit Weight: 4,536 g
Products found:
To show similar products, select at least one checkbox
Select at least one checkbox above to show similar products in this category.
Attributes selected: 0

Datasheet

Images

Models

TARIC:
8536693000
CNHTS:
8536901100
CAHTS:
8536690020
USHTS:
8536694040
JPHTS:
853669000
KRHTS:
8536691000
MXHTS:
8536699999
BRHTS:
85366990
ECCN:
EAR99

Modular Dual Barrier Terminal Blocks

TE Connectivity's Modular Dual Barrier Terminal Blocks offer a dual barrier in a single row and are molded in both two and three position housings with dovetail interlocking features to allow users to build blocks up to 16 positions, without losing the 0.235-inch centerline spacing, using only two part numbers. TE Connectivity Modular Dual Barrier Terminal Blocks feature a screw termination, UL 94V-0 rated black housing, and are ideal for commercial and industrial equipment where field wiring of devices is necessary.
