1577616-1

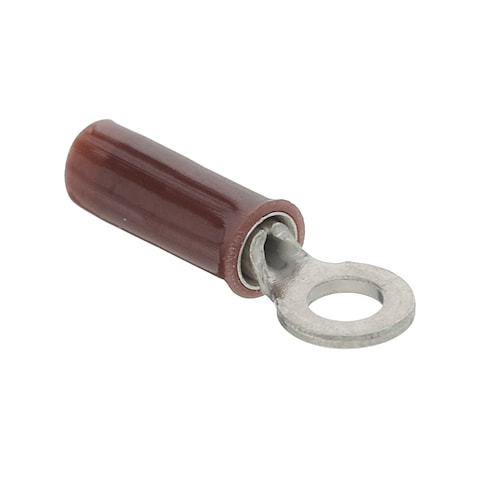

Name: TE Connectivity 1577616-1
Brand: TE Connectivity
SKU: 571-1577616-1
Price: 3.43 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-1577616-1

Mfr. No:

1577616-1

Mfr.:

TE Connectivity

Description:

Terminals TERMINAL SOCKT DIA 4 AWG 14 18 BLANK

Datasheet:

1577616-1 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity 1577616-1

In Stock: 2.888

Stock:: 2.888 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 31 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	3,43 €	3,43 €
	2,90 €	29,00 €
	2,60 €	65,00 €
	2,48 €	248,00 €
	2,47 €	1.235,00 €
	2,16 €	2.160,00 €
	2,12 €	5.300,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Terminals
RoHS:
Product:	Screw Terminals
Type:	Ring
Termination Style:	Crimp
Insulation:	Insulated
Stud/Tab Size:	# 4
Wire Gauge Max:	22 AWG
Mounting Style:	Screw
Color:	Brown
Contact Plating:	Nickel
Contact Material:	Copper
Series:	STRATO-THERM
Brand:	TE Connectivity
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	IN
Insulation Material:	Polyetheretherketone (PEEK)
Length:	18.03 mm
Material:	Copper
Mounting Angle:	Straight
Product Type:	Terminals
Factory Pack Quantity:	1
Subcategory:	Terminals
Width:	5.54 mm
Wire Gauge:	22 AWG
Unit Weight:	550 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

1577616-1 Datasheet

Images

1577616-1

RoHS Certificate (PDF)

TARIC:: 8536901000
CNHTS:: 8536901100
CAHTS:: 8536900020
USHTS:: 8536904000
JPHTS:: 853690000
KRHTS:: 8536909010
MXHTS:: 8536902800
BRHTS:: 85369090
ECCN:: EAR99

SOLISTRAND Terminals & Splices

TE Connectivity's (TE) SOLISTRAND Terminals and Splices are specially designed to terminate solid and stranded wire, irregular-shaped conductors, and wire-conductor combinations while still retaining the superior performance characteristics of single-purpose terminals and splices. The series resists corrosion and vibration, and the tensile strength is well within the limits of commercial and military specifications. TE Connectivity offers SOLISTRAND crimping tools to ensure terminations are consistent and uniform for easier quality control and reliable performance. The TE SOLISTRAND line includes terminals, parallel and butt splices, flat rings, spades, hooks, and flanged tongue terminals in sizes from 26AWG (0.1mm²) through 600 MCM (304mm²).
