1-746610-9

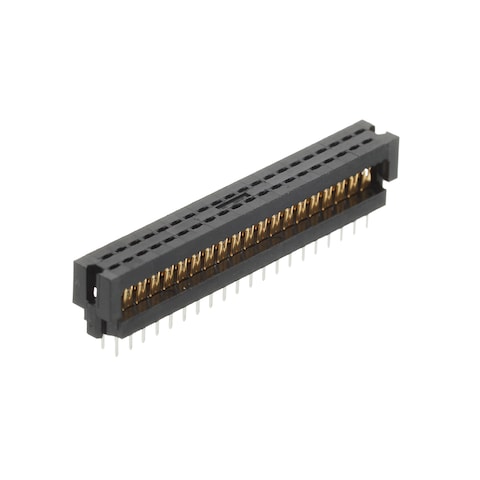

Name: TE Connectivity 1-746610-9
Brand: TE Connectivity
SKU: 571-1-7466109
Price: 2.84 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-1-7466109

Mfr. No:

1-746610-9

Mfr.:

TE Connectivity

Description:

Headers & Wire Housings 40P DIP PLUG IDC

Datasheet:

1-746610-9 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity 1-746610-9

In Stock: 861

Stock:: 861 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 11 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	2,84 €	2,84 €
	2,49 €	24,90 €
	2,28 €	114,00 €
	2,17 €	217,00 €
	2,01 €	502,50 €
	1,99 €	995,00 €
	1,95 €	5.460,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Ribbon Cable
Number of Positions:	40 Position
Pitch:	2.54 mm (0.1 in)
Number of Rows:	2 Row
Row Spacing:	2 mm (0.079 in)
Mounting Style:	Through Hole
Termination Style:	Solder Pin
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Contact Plating:	Gold
Series:	AMP-LATCH
Tradename:	AMP-LATCH
Application:	Wire-to-Board
Minimum Operating Temperature:	- 65 C
Maximum Operating Temperature:	+ 105 C
Packaging:	Tube
Brand:	TE Connectivity
Contact Material:	Phosphor Bronze
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Housing Colour:	Black
Housing Material:	Thermoplastic (TP)
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	50
Subcategory:	Headers & Wire Housings
Unit Weight:	4,309 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

1-746610-9 Datasheet

Images

PCN

Product Change Notification (PDF)

RoHS Certificate (PDF)

TARIC:: 8536693000
CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

AMP-LATCH Ribbon Cable Connectors

TE Connectivity's (TE) AMP-LATCH connectors are wire-to-board devices used to make the transition between cable and PC board circuitry. The mass termination capabilities of the AMP-LATCH family of connectors have made ribbon cable popular within the Electronics Industry. The ability to terminate up to 64 conductors simultaneously, without stripping or otherwise preparing the cable, saves labor. The AMP-LATCH Line is available in three separate cable centerline spacings, including .050 (1.27), .039 (1.00), and .025 (0.64). Applications include computers/electronics, business equipment, and medical equipment.
