1-745491-7

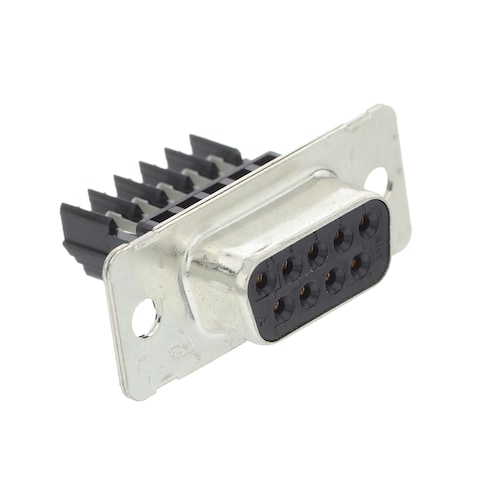

Name: TE Connectivity 1-745491-7
Brand: TE Connectivity
SKU: 571-1-745491-7
Price: 4.65 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-1-745491-7

Mfr. No:

1-745491-7

Mfr.:

TE Connectivity

Description:

D-Sub Standard Connectors HDE-20 9P SOCKET

Datasheet:

1-745491-7 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity 1-745491-7

In Stock: 234

Stock:: 234 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 1 Week Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	4,65 €	4,65 €
	4,24 €	42,40 €
	4,05 €	101,25 €
	3,50 €	192,50 €
	3,25 €	357,50 €
	2,83 €	778,25 €
	2,72 €	1.496,00 €
	2,64 €	2.758,80 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	D-Sub Standard Connectors
RoHS:
Type:	Receptacle
Number of Positions:	9 Position
Number of Rows:	2 Row
Mounting Style:	Wire
Termination Style:	IDC
Mounting Angle:	Straight
Contact Gender:	Without Socket Contacts
Series:	HDE-20
Tradename:	AMPLIMITE
Brand:	TE Connectivity
Contact Material:	Phosphor Bronze
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Filtered:	Unfiltered
Gender:	Female
Product Type:	D-Sub Connectors - Standard Density
Shell Material:	Steel
Shell Plating:	Tin
Shell Size:	1 (E)
Factory Pack Quantity:	55
Subcategory:	D-Sub Connectors
Unit Weight:	5,670 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

1-745491-7 Datasheet

Images

PCN

RoHS Certificate (PDF)

TARIC:: 8536699099
CNHTS:: 8536901100
CAHTS:: 8536690090
USHTS:: 8536698000
JPHTS:: 853669000
KRHTS:: 8536699000
MXHTS:: 85366999
BRHTS:: 85366990
ECCN:: EAR99

AMPLIMITE D-Subminiature Connectors

TE Connectivity's (TE) AMPLIMITE D-Subminiature Connectors are compact pin and socket connectors designed especially for high-density packages. The D-Subminiature connectors are designed for multiple applications along with specialized accessories that provide a cost-effective solution for complex applications. TE AMPLIMITE Standard D-Subminiature connectors are available with MIL-DTL-24308 qualification.

AMPLIMITE Standard D-Subminiature Connectors

TE Connectivity's (TE) AMPLIMITE Standard D-Subminiature Connectors feature a UL 94V-0 rating, 4 to 40 threaded inserts, and HD-20 and HD-22 availability. AMPLIMITE Standard Connectors have front metal, full metal, and plastic shell features that allow the choice of connectors with suitable durability. TE AMPLIMITE Standard D-Subminiature Connectors have a rugged, easy-to-use design ideal for industrial controls, factory automation, base stations, and consumer electronics.
