1-281838-2

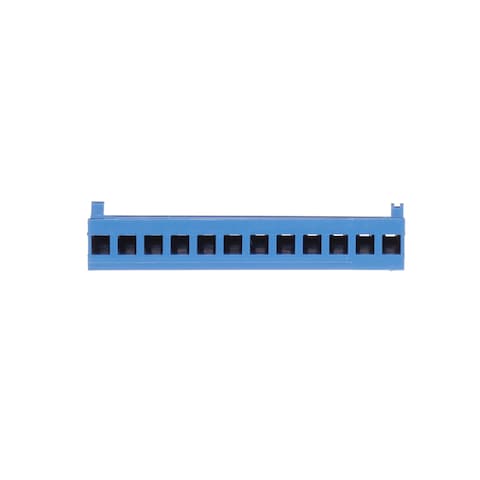

Name: TE Connectivity 1-281838-2
Brand: TE Connectivity
SKU: 571-1-281838-2
Price: 1.76 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-1-281838-2

Mfr. No:

1-281838-2

Mfr.:

TE Connectivity

Description:

Headers & Wire Housings RECPT 1X12P CRIMP HE14

Datasheet:

1-281838-2 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 1.451

Stock:: 1.451 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 40 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	1,76 €	1,76 €
	1,51 €	15,10 €
	1,34 €	33,50 €
	1,28 €	128,00 €
	1,20 €	300,00 €
	1,14 €	570,00 €
	1,11 €	1.110,00 €
	0,989 €	2.472,50 €
	0,946 €	4.730,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Headers & Wire Housings
RoHS:
Product:	Wire Housings
Type:	Receptacle Housing
Number of Positions:	12 Position
Pitch:	2.54 mm (0.1 in)
Number of Rows:	1 Row
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	IDC
Contact Gender:	Socket (Female)
Contact Plating:	Tin
Series:	HE13 / HE14
Tradename:	AMPMODU
Application:	Wire-to-Board
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Bulk
Brand:	TE Connectivity
Contact Type:	Socket (Female)
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	PL
Housing Colour:	Blue
Housing Gender:	Receptacle
Housing Material:	Polybutylene Terephthalate (PBT)
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	500
Subcategory:	Headers & Wire Housings
Unit Weight:	16,300 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

1-281838-2 Datasheet

Images

PCN

RoHS Certificate (PDF)

TARIC:: 8547200090
CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8538906000
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

AMPMODU Interconnection System

TE Connectivity's (TE) AMPMODU Interconnection System provides connections with a unique modular concept, utilizing precision-formed receptacle contacts and mating posts. Mating of the post and receptacle contacts of this system is very tolerant. This is made possible by a post with a burr-free lead-in and a receptacle contact featuring double cantilever beams and anti-overstress stops.
