DTMH04-2PD

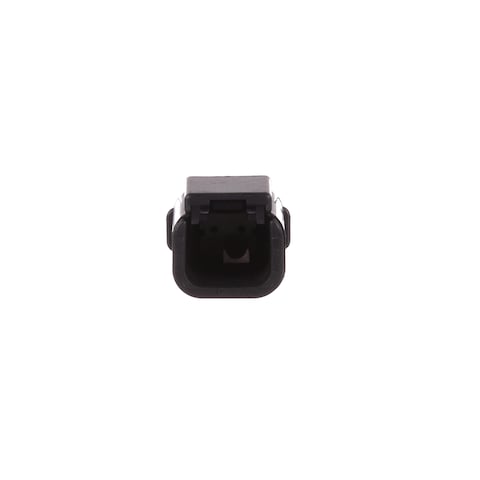

Name: TE Connectivity DTMH04-2PD
Brand: TE Connectivity / DEUTSCH
SKU: 571-DTMH04-2PD
Price: 2.49 EUR
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

571-DTMH04-2PD

Mfr. No:

DTMH04-2PD

Mfr.:

TE Connectivity / DEUTSCH

Description:

Automotive Connectors REC, 2P, BLK, N, HI TEMP, D

Datasheet:

DTMH04-2PD Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity / DEUTSCH DTMH04-2PD

Availability

Stock:: 0

You can still purchase this product for backorder.

An unexpected error occurred. Please try again later.
On Order:: 995
Factory Lead Time:: 8

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	2,49 €	2,49 €
	2,27 €	22,70 €
	2,21 €	55,25 €
	2,06 €	206,00 €
	1,77 €	442,50 €
	1,66 €	830,00 €
	1,53 €	1.530,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Automotive Connectors
RoHS:
REACH - SVHC:
Product:	Connectors
Number of Positions:	2 Position
Pitch:	4.19 mm (0.165 in)
Gender:	Receptacle (Female)
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Wire Gauge Min:	20 AWG
Wire Gauge Max:	16 AWG
Color:	Black
Series:	DTM
Brand:	TE Connectivity / DEUTSCH
Contact Gender:	Without Pin Contacts
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MX
Current Rating:	7.5 A
Dimensions:	18.52 mm x 16.21 mm x 41.15 mm
Height:	16.21 mm
Housing Material:	Polyamide (PA)
Insulation:	Insulated
Length:	41.15 mm
Material:	Plastic
Mating Gender:	Plug
Mating Part Number:	DTMH06-2SD, DTM06-2SD
Maximum Operating Temperature:	+ 150 C
Minimum Operating Temperature:	- 55 C
Mounting Angle:	Straight
Number of Rows:	1 Row
Product Type:	Automotive Connectors
Factory Pack Quantity:	1
Subcategory:	Automotive Connectors
Tradename:	DT
Type:	Receptacle
Voltage Rating:	250 V
Width:	18.52 mm
Wire Gauge Range:	16 AWG to 20 AWG
Unit Weight:	5,600 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

DTMH04-2PD Datasheet

Images

PCN

Product Catalogs

Terminals and Connectors (PDF)

RoHS Certificate (PDF)

TARIC:: 8538909999
CNHTS:: 8547200000
CAHTS:: 8538903900
USHTS:: 8538906000
JPHTS:: 853890000
MXHTS:: 8538900100
BRHTS:: 85389090
ECCN:: EAR99

Industrial & Commercial Transportation

TE Connectivity's (TE) comprehensive line of Industrial & Commercial Transportation products includes an unparalleled portfolio of rugged electrical connector products and sensor technologies. TE’s environmentally sealed connectors are designed to withstand the harshest environmental conditions and to keep vehicles moving forward. TE's portfolio of heavy-duty sensors helps vehicles operate safer, cleaner, and smarter. Applications range from heavy-duty trucks to construction equipment, mining vehicles to fire trucks, as well as boats, motorcycles, and tractors.

DT Family Connectors

TE Connectivity's (TE) DEUTSCH DT Family of Connectors are environmentally-sealed connectors designed for cable to cable applications on the engine or transmission, under the hood, on the chassis, or in the cab. On signal level circuits in harsh environmental conditions where small connection degradation may be critical, TE DT general purpose connectors provide reliability and performance as well as cost-effectiveness.

Harsh Environment Products

TE Connectivity's (TE) Harsh Environment Products are built to withstand dirt, moisture, salt, and vibration encountered in harsh environments. The harsh environment products include connectors, relays, transducers, receptacles, sensors, and many more. TE Harsh Environment Products improve efficiency, safety, and offer high-reliability.

DTM Connectors

TE Connectivity's (TE) DEUTSCH DTM Connectors feature a miniature contact with an enhanced design based on the DEUTSCH DT series. The DTM is designed for use in harsh environment applications where reliable signal circuits are critical to operating performance. Typical applications include on or around the engine, the transmission, and under the hood. TE DTM connectors provide peak connector performance everywhere data signals or critical electronic circuits are needed.
