53007-1

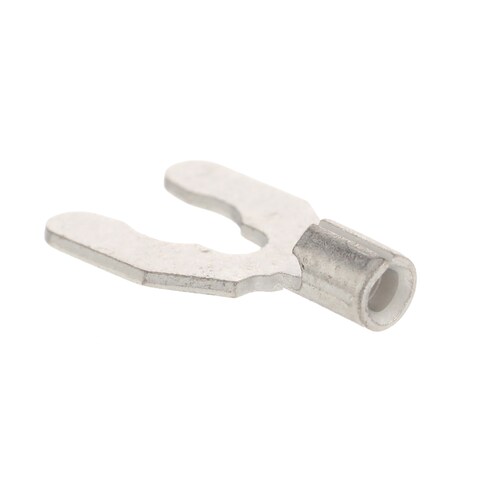

Name: TE Connectivity 53007-1
Brand: TE Connectivity / AMP
SKU: 571-53007-1
Price: 0.34 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-53007-1

Mfr. No:

53007-1

Mfr.:

TE Connectivity / AMP

Description:

Terminals BDG SP SPD 22-16COMM 22-18MIL8

Datasheet:

53007-1 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity / AMP 53007-1

In Stock: 579

Stock:: 579 Can Dispatch Immediately

An unexpected error occurred. Please try again later.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	0,344 €	0,34 €
	0,292 €	2,92 €
	0,256 €	6,40 €
	0,226 €	22,60 €
	0,203 €	50,75 €
1.000	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Terminals
RoHS:
Product:	Screw Terminals
Type:	Spade
Termination Style:	Crimp
Insulation:	Not Insulated
Stud/Tab Size:	# 8
Wire Gauge Max:	16 AWG
Mounting Style:	Screw
Contact Plating:	Tin
Contact Material:	Phosphor Bronze
Series:	BUDGET
Tradename:	SOLISTRAND
Packaging:	Bulk
Brand:	TE Connectivity / AMP
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Insulation Material:	Not Insulated
Length:	16.17 mm
Material:	Copper
Mounting Angle:	Straight
Product Type:	Terminals
Factory Pack Quantity:	1000
Subcategory:	Terminals
Wire Gauge:	16 AWG
Unit Weight:	647 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

53007-1 Datasheet (PDF)

RoHS Certificate (PDF)

TARIC:: 8536901000
CNHTS:: 8538900000
CAHTS:: 8536900020
USHTS:: 8536904000
JPHTS:: 853690000
KRHTS:: 8536909010
MXHTS:: 8536902800
BRHTS:: 85369090
ECCN:: EAR99

Terminals & Splices

TE Connectivity's Terminals and Splices can help make the job fast and easy whether it's making a few connections in the lab or millions on an assembly line. With a broad range of sizes, materials, retention features, temperature ranges, and insulation options, users can select just the characteristics needed for their application. TE's application tooling, from hand tools to fully automated applicators, can help to assure consistency of the crimp connections.

SOLISTRAND Terminals & Splices

TE Connectivity's (TE) SOLISTRAND Terminals and Splices are specially designed to terminate solid and stranded wire, irregular-shaped conductors, and wire-conductor combinations while still retaining the superior performance characteristics of single-purpose terminals and splices. The series resists corrosion and vibration, and the tensile strength is well within the limits of commercial and military specifications. TE Connectivity offers SOLISTRAND crimping tools to ensure terminations are consistent and uniform for easier quality control and reliable performance. The TE SOLISTRAND line includes terminals, parallel and butt splices, flat rings, spades, hooks, and flanged tongue terminals in sizes from 26AWG (0.1mm²) through 600 MCM (304mm²).
