2-1470108-6

Name: TE Connectivity 2-1470108-6
Brand: TE Connectivity / AMP
SKU: 571-2-1470108-6
Price: 1.44 EUR
Availability: InStock

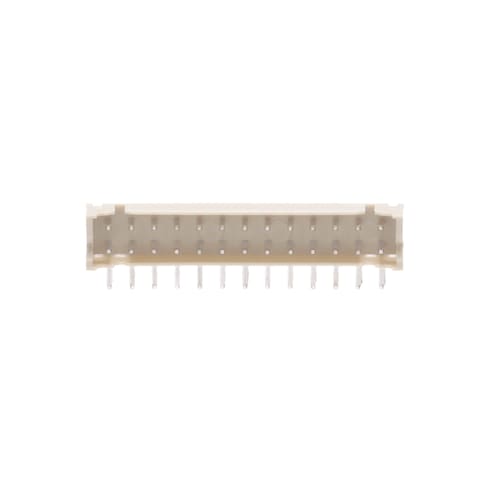

Images are for reference only
See Product Specifications

Mouser No:

571-2-1470108-6

Mfr. No:

2-1470108-6

Mfr.:

TE Connectivity / AMP

Description:

Headers & Wire Housings 2.0mm Pitch Header Dip 26p

Datasheet:

2-1470108-6 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 1.289

Stock:: 1.289 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 12 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	1,44 €	1,44 €
	1,26 €	12,60 €
	1,20 €	24,00 €
	1,12 €	112,00 €
	1,04 €	270,40 €
	0,929 €	464,50 €
	0,886 €	886,00 €
	0,775 €	1.937,50 €
	0,738 €	3.690,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Shrouded
Number of Positions:	26 Position
Pitch:	2 mm (0.079 in)
Number of Rows:	2 Row
Mounting Style:	Through Hole
Termination Style:	Solder Pin
Mounting Angle:	Right Angle
Contact Gender:	Pin (Male)
Contact Plating:	Tin
Series:	AMPMODU MOD I
Tradename:	AMPMODU
Application:	Wire-to-Board
Minimum Operating Temperature:	- 65 C
Maximum Operating Temperature:	+ 105 C
Packaging:	Tube
Brand:	TE Connectivity / AMP
Contact Material:	Copper Alloy
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Current Rating:	3 A
Housing Colour:	Natural
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	20
Subcategory:	Headers & Wire Housings
Voltage Rating:	100 VDC

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

2-1470108-6 Datasheet

Images

Models

2-1470108-6 Symbol & Footprint by SnapMagic

RoHS Certificate (PDF)

TARIC:: 8536693000
CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

AMPMODU Interconnection System

TE Connectivity's (TE) AMPMODU Interconnection System provides connections with a unique modular concept, utilizing precision-formed receptacle contacts and mating posts. Mating of the post and receptacle contacts of this system is very tolerant. This is made possible by a post with a burr-free lead-in and a receptacle contact featuring double cantilever beams and anti-overstress stops.
