1996771-1

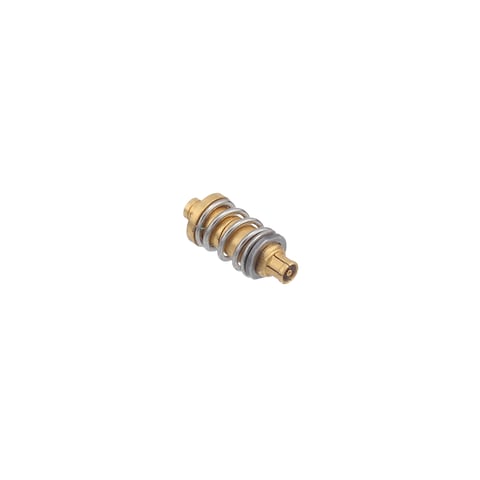

Name: TE Connectivity 1996771-1
Brand: TE Connectivity / AMP
SKU: 571-1996771-1
Price: 66.31 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-1996771-1

Mfr. No:

1996771-1

Mfr.:

TE Connectivity / AMP

Description:

RF Connectors / Coaxial Connectors CNTCT .047 SEMIRIGID SMPM STR CBL CONN

Datasheet:

1996771-1 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity / AMP 1996771-1

In Stock: 159

Stock:: 159 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 40 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

This Product Ships FREE

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	66,31 €	66,31 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	RF Connectors / Coaxial Connectors
RoHS:
REACH - SVHC:
Product:	Connectors
RF Series:	SMPM
Gender:	Jack (Socket)
Impedance:	50 Ohms
Maximum Frequency:	26.5 GHz
Termination Style:	Solder
Orientation:	Straight
Polarity:	Standard
Mounting Style:	Panel Mount
Cable Type:	0.047 in. Semi-Rigid
Packaging:	Bulk
Body Finish:	Gold
Body Material:	Beryllium Copper
Brand:	TE Connectivity / AMP
Contact Material:	Beryllium Copper
Contact Plating:	Gold
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Insulation Resistance:	5 GOhms
Maximum Operating Temperature:	+ 105 C
Minimum Operating Temperature:	- 55 C
Product Type:	RF Connectors / Coaxial Connectors
Series:	VITA 67
Factory Pack Quantity:	1
Subcategory:	RF Interconnects
Tradename:	VITA
Voltage Rating:	200 V
Unit Weight:	2 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

1996771-1 Datasheet

Images

PCN

RoHS Certificate (PDF)

TARIC:: 8536699099
CNHTS:: 8536901100
CAHTS:: 8536690040
USHTS:: 8536694030
JPHTS:: 853669000
KRHTS:: 8536699000
MXHTS:: 85366999
BRHTS:: 85366990
ECCN:: EAR99

VPX Ecosystem

TE Connectivity’s VPX Ecosystem systems gives designers a complete array for high-speed data, optical, RF, power, and mezzanine connectivity. More choice means more flexibility in achieving specific system architectures with standards-based solutions. VPX lets the user achieve the high-speed signal integrity advanced applications require in rugged, reliable connectors. VPX is a ruggedized approach to embedded computing that aims to satisfy high-speed processing needs in harsh environments such as flight, ground defense, and other military applications.

VITA 67 RF Modules

TE Connectivity's VITA 67 RF Modules are modular systems designed to allow backplane/daughtercard multi-contact mating within a robust platform. These VITA 67 modules withstand the mechanical rigors of military and aerospace applications. VITA 67.1 is a half width module with four RF contacts, VITA 67.2 is a full width module which fits eight RF contacts into the space occupied by a single VITA 46 VPX signal module. TE VITA 67 standard requirement is a frequency range of DC to 26.5GHz.
