1735284-4

Name: TE Connectivity 1735284-4
Brand: TE Connectivity / AMP
SKU: 571-1735284-4
Price: 3.54 EUR
Availability: InStock

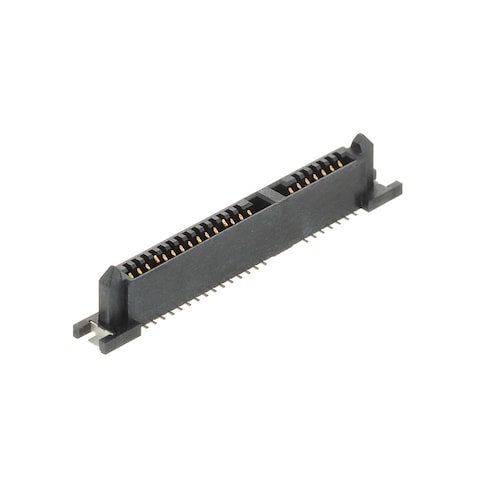

Images are for reference only
See Product Specifications

Mouser No:

571-1735284-4

Mfr. No:

1735284-4

Mfr.:

TE Connectivity / AMP

Description:

I/O Connectors SATA BACKPLANE RECPT VERTICAL SMT

Datasheet:

1735284-4 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity / AMP 1735284-4

In Stock: 1.003

Stock:: 1.003 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 9 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	3,54 €	3,54 €
	3,02 €	30,20 €
	2,69 €	67,25 €
	2,56 €	256,00 €
	2,33 €	582,50 €
	2,21 €	884,00 €
	2,13 €	2.556,00 €
	2,08 €	5.824,00 €
	1,89 €	9.828,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	I/O Connectors
RoHS:
Product:	Serial Connectors
Gender:	Female
Number of Positions:	22 Position
Pitch:	1.27 mm
Contact Plating:	Gold
Mounting Style:	PCB Mount
Termination Style:	SMD/SMT
Mounting Angle:	Vertical
Series:	SATA
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 85 C
Brand:	TE Connectivity / AMP
Contact Material:	Copper Alloy
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Flammability Rating:	UL 94 V-0
Housing Material:	Thermoplastic (TP)
Product Type:	I/O Connectors
Factory Pack Quantity:	400
Subcategory:	I/O Connectors
Type:	SATA
Unit Weight:	71,066 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

1735284-4 Datasheet

Images

PCN

Product Change Notification (PDF)

RoHS Certificate (PDF)

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 85366999
BRHTS:: 85366990
ECCN:: EAR99

Serial ATA (SATA) Connectors

TE Connectivity's (TE) Serial ATA (SATA) Connectors feature alignment-free and slant-insertion SATA styles that provide solutions for alignment and PCB space savings. These connectors are compliant with Serial ATA 3.0 specifications with high-speed data transfer rates. They offer a point-to-point link with hot-plugging capability. TE SATA Connectors are available in a wide range of selections in height, orientations, and other standard features to meet mechanical requirements. Typical applications include hard disk drives (HDDs), solid-state drives (SSDs) optical disk drives (ODDs), desktop and notebook PCs, multimedia peripherals, mid-range servers, and storage systems.
