170141-2

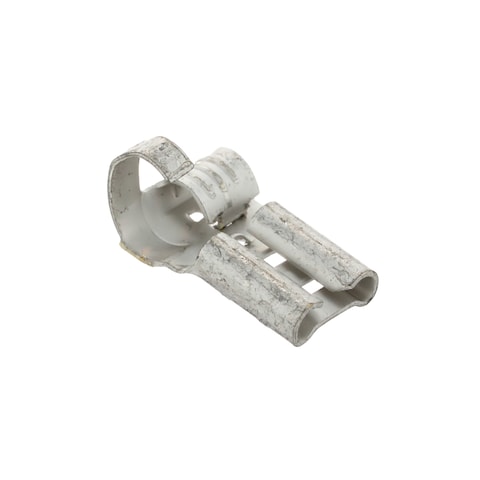

Name: TE Connectivity 170141-2
Brand: TE Connectivity / AMP
SKU: 571-170141-2
Price: 0.31 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-170141-2

Mfr. No:

170141-2

Mfr.:

TE Connectivity / AMP

Description:

Terminals 187 FLG FASTON REC

Datasheet:

170141-2 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity / AMP 170141-2

In Stock: 106

Stock:: 106 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 22 Weeks Estimated factory production time for quantities greater than shown.

Quantities greater than 106 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	0,31 €	0,31 €
	0,264 €	2,64 €
	0,233 €	5,83 €
	0,202 €	20,20 €
	0,179 €	44,75 €
	0,17 €	170,00 €
	0,16 €	480,00 €
	0,151 €	755,00 €
	0,11 €	1.100,00 €

Alternative Packaging

Mfr. Part No.:

170140-2

Packaging:

Reel

Availability:

In Stock

Price:

0,04 €

Min:

7000

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Terminals
RoHS:
Product:	Quick Disconnects
Type:	Receptacle
Termination Style:	Crimp
Gender:	Female
Insulation:	Not Insulated
Stud/Tab Size:	4.75 mm x 0.51 mm
Wire Gauge Max:	16 AWG
Contact Plating:	Tin
Contact Material:	Brass
Series:	187 FASTON
Tradename:	FASTON
Brand:	TE Connectivity / AMP
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MX
Insulation Material:	Not Insulated
Length:	13.5 mm
Material:	Brass
Mounting Angle:	Right Angle
Product Type:	Terminals
Factory Pack Quantity:	1000
Subcategory:	Terminals
Wire Gauge:	16 AWG
Unit Weight:	452 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

TARIC:: 8536901000
CNHTS:: 8538900000
CAHTS:: 8536900020
USHTS:: 8536904000
JPHTS:: 853690000
KRHTS:: 8536909010
MXHTS:: 8536902800
BRHTS:: 85369090
ECCN:: EAR99

FASTON Electrical Quick Connects

TE Connectivity's (TE) FASTON Electrical Quick Connects offer speed of application, uniform reliability, and low per-line cost. Products include flag receptacles, straight receptacles, wire crimp tabs, printed circuit board tabs, and board-mount tabs. Features include a locking action and a contact area that increases the contact surface and locks the tabs and receptacles at the proper insertion depth for firm retention. The portfolio includes standard products, as well as low-insertion-force terminals, high-temperature terminals, low-profile terminals, and more. A complete line of application tooling has been developed specifically for these terminals. Crimping dimensions for each terminal are precisely controlled so all connections are identical in performance. TE FASTON Electrical Quick Connects are available in insulated or uninsulated versions.

Terminals & Splices

TE Connectivity's Terminals and Splices can help make the job fast and easy whether it's making a few connections in the lab or millions on an assembly line. With a broad range of sizes, materials, retention features, temperature ranges, and insulation options, users can select just the characteristics needed for their application. TE's application tooling, from hand tools to fully automated applicators, can help to assure consistency of the crimp connections.

PIDG Terminals

TE Connectivity's (TE) PIDG Terminals are designed for uniform reliability in the most difficult circuit environments. These terminals consist of tin-plated copper or tin-plated phosphor bronze body for spring spades, plus a copper and color insulation sleeve fitted over a terminal barrel. The specialized design of tool dies and the terminal construction allows for uniform insulation thickness under crimping pressure, transmitting this pressure evenly to the center of the crimping area. TE's PIDG Terminals are ideal for instruments and controls, lighting, power supplies, panel boxes, lifting equipment, motors, and appliances, as well as transportation and aerospace applications.
