1-353293-9

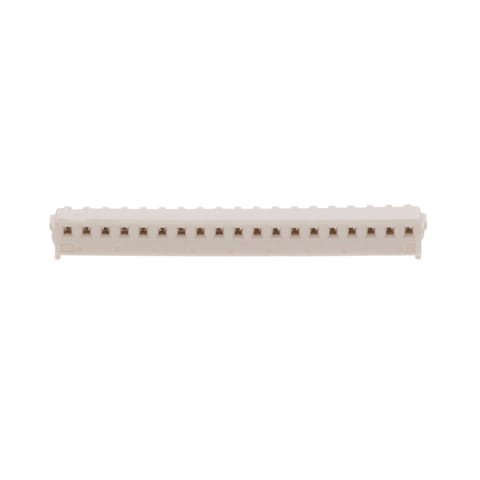

Name: TE Connectivity 1-353293-9
Brand: TE Connectivity / AMP
SKU: 571-1-353293-9
Price: 0.77 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-1-353293-9

Mfr. No:

1-353293-9

Mfr.:

TE Connectivity / AMP

Description:

Headers & Wire Housings RCPT 19 POS GRY MINI 1.5mm

Datasheet:

1-353293-9 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 4.681

Stock:: 4.681 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 7 Weeks Estimated factory production time for quantities greater than shown.

Quantities greater than 4681 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	0,774 €	0,77 €
	0,66 €	6,60 €
	0,589 €	14,73 €
	0,561 €	56,10 €
	0,525 €	131,25 €
	0,50 €	250,00 €
	0,476 €	476,00 €
	0,445 €	1.112,50 €
	0,388 €	1.940,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Headers & Wire Housings
RoHS:
Product:	Wire Housings
Type:	Receptacle Housing
Number of Positions:	19 Position
Pitch:	1.5 mm (0.059 in)
Number of Rows:	1 Row
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	IDC
Contact Gender:	Socket (Female)
Contact Plating:	Tin
Series:	Mini CT
Tradename:	Common Termination
Application:	Wire-to-Board
Wire Gauge:	28 AWG to 26 AWG
Minimum Operating Temperature:	- 30 C
Maximum Operating Temperature:	+ 105 C
Packaging:	Bulk
Brand:	TE Connectivity / AMP
Contact Material:	Phosphor Bronze
Contact Type:	Socket
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Current Rating:	2 A
Housing Colour:	Gray
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	500
Subcategory:	Headers & Wire Housings
Voltage Rating:	50 V
Unit Weight:	1 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

1-353293-9 Datasheet

Images

RoHS Certificate (PDF)

TARIC:: 8536699099
CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8538906000
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Mini CT Connectors

TE Connectivity / AMP Mini CT Connectors are super-miniature, wire-to-board and wire-to-wire connections using panel-mount intermediary post headers. From 2 to 20 positions, applicable wire sizes AWG28-26, the Mini CT Connectors are used for harness-making by AMP high-speed crimping machines. The Tyco Electronics / AMP Mini CT Connectors consist of wire-mount receptacle connectors and a variety of post headers and two-row headers. The post headers include one-row type headers (DIP, SMT, intermediary panel-mount type) and two-row type headers (DIP, intermediary panel-mount type). Two-row type post headers incorporate two receptacle connectors in a holder.
