Name: TE Connectivity 1-292206-3
Brand: TE Connectivity / AMP
SKU: 571-1-292206-3
Price: 0.82 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-1-292206-3

Mfr. No:

1-292206-3

Mfr.:

TE Connectivity / AMP

Description:

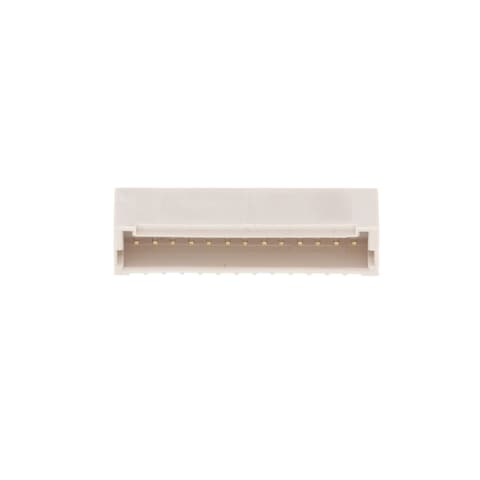

Headers & Wire Housings 13P DIP HDR R/A MINI NAT 1.5mm

Datasheet:

1-292206-3 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 2.565

Stock:: 2.565 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 7 Weeks Estimated factory production time for quantities greater than shown.

Quantities greater than 2565 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	0,826 €	0,83 €
	0,703 €	7,03 €
	0,598 €	59,80 €
	0,524 €	262,00 €
	0,498 €	498,00 €
	0,483 €	1.255,80 €
	0,433 €	2.251,60 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Shrouded
Number of Positions:	13 Position
Pitch:	1.5 mm (0.059 in)
Number of Rows:	1 Row
Mounting Style:	Through Hole
Termination Style:	Solder Pin
Mounting Angle:	Right Angle
Contact Gender:	Pin (Male)
Contact Plating:	Tin
Series:	Mini CT
Tradename:	Common Termination
Application:	Wire-to-Board
Wire Gauge:	28 AWG to 24 AWG
Minimum Operating Temperature:	- 30 C
Maximum Operating Temperature:	+ 105 C
Packaging:	Tray
Brand:	TE Connectivity / AMP
Contact Material:	Brass
Contact Type:	Pin
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Current Rating:	2 A
Housing Colour:	Natural
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	650
Subcategory:	Headers & Wire Housings
Voltage Rating:	50 V
Unit Weight:	753 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

1-292206-3 Datasheet

Images

RoHS Certificate (PDF)

TARIC:: 8536693000
CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

HPI and CT Connectors

TE Connectivity / AMP High Performance Interconnects (HPI) polarized connectors feature reliable wire-to-board sockets and headers that provide audible click feedback when mating. The connectors are available in 2 to 15 positions and accommodate AWG 30 to 24 wire. TE Connectivity / AMP Common Termination (CT) Connectors feature mini 1.5mm and 2mm post header, receptacle, and crimp type housing assemblies for wire-to-board applications. The devices are available in 1 row and 2 row types and feature insulation displacement contacts (IDC).
