JBXHC0G07FSSDSR

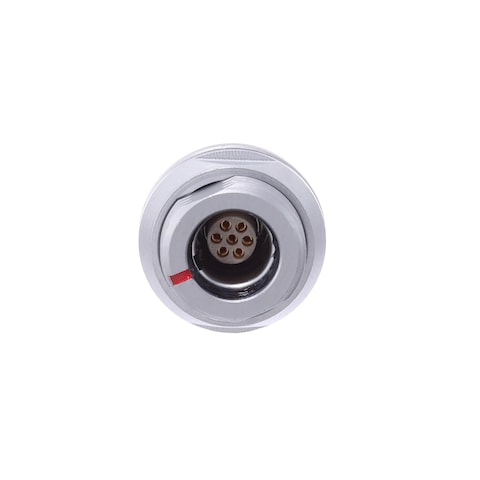

Name: Souriau JBXHC0G07FSSDSR
Brand: Souriau
SKU: 649-JBXHC0G07FSSDSR
Price: 69.67 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

649-JBXHC0G07FSSDSR

Mfr. No:

JBXHC0G07FSSDSR

Mfr.:

Souriau

Description:

Circular Push Pull Connectors

Datasheet:

JBXHC0G07FSSDSR Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 24

Stock:: 24 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 22 Weeks Estimated factory production time for quantities greater than shown.

Quantities greater than 24 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

This Product Ships FREE

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	69,67 €	69,67 €
	63,96 €	639,60 €
	57,65 €	1.441,25 €
	54,57 €	5.457,00 €
250	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Souriau
Product Category:	Circular Push Pull Connectors
REACH - SVHC:
Product:	Connectors
Connector Type:	Receptacle
Contact Gender:	Socket (Female)
Number of Contacts:	7 Contact
Shell Size:	0
Mounting Style:	Panel Mount
Termination Style:	Solder Cup
IP Rating:	IP68
Series:	JBX
Brand:	Souriau
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	FR
Product Type:	Circular Push Pull Connectors
Factory Pack Quantity:	25
Subcategory:	Circular Connectors
Part # Aliases:	JBXHC0G07FSSDSR

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

JBXHC0G07FSSDSR Datasheet

This functionality requires JavaScript to be enabled.

TARIC:: 8536699099
CAHTS:: 8536690040
USHTS:: 8536694030
JPHTS:: 853669000
KRHTS:: 8536699000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Push-Pull Connectors - Metal & Plastic

Souriau Push-Pull Connectors are designed for high-reliability applications requiring Waterproof IP68 or IP40 performance combined with a quick-and-easy connect/disconnect method. The unique design of these connectors provides a small footprint for ease-of-use in limited spaces and a shielded metal housing for reliable performance in high vibration and shock environments. JBX Push-Pull Connectors offer termination in solder, crimp, PCB, R/A, and PCB contacts and are mechanically keyed to ensure correct polarization and alignment. JDX Hybrid Mixed Power and Signal Waterproof Connectors allow designers to integrate 2 or 3 power contacts with 6 to 8 signal contacts in one connector housing.

JBX Push-Pull Circular Connectors

Souriau JBX Push-Pull Connectors are designed for high-reliability applications requiring Waterproof IP68 or IP40 performance combined with a quick-and-easy connect/disconnect method. The unique design of these connectors provides a small footprint for ease-of-use in limited spaces. The JBX Series offers metal EMI shielded housings for reliable performance in high vibration and shock environments.
