TSW-102-26-T-T

Name: Samtec TSW-102-26-T-T
Brand: Samtec
SKU: 200-TSW10226TT
Price: 0.49 EUR
Availability: InStock

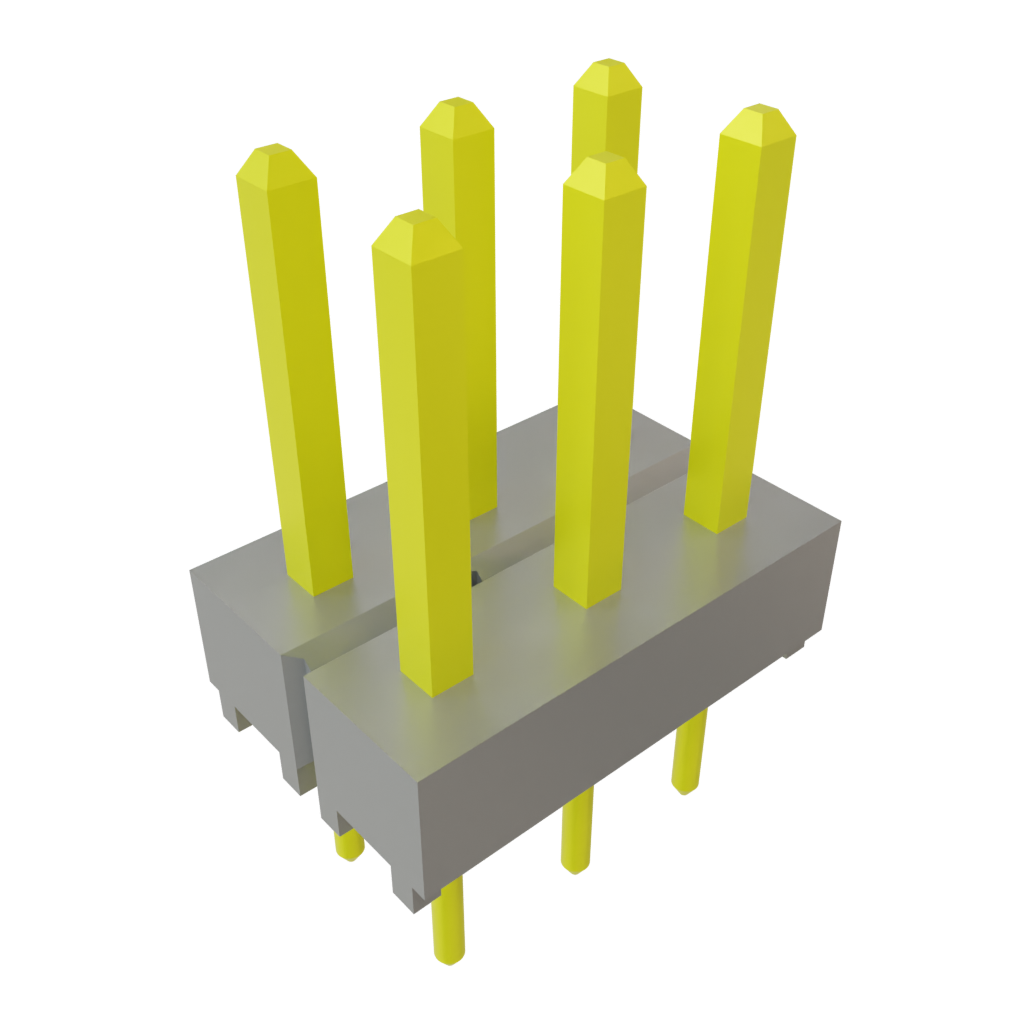

Images are for reference only
See Product Specifications

Mouser No:

200-TSW10226TT

Mfr. No:

TSW-102-26-T-T

Mfr.:

Samtec

Description:

Headers & Wire Housings Classic PCB Header Strips

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec TSW-102-26-T-T

In Stock: 425

Stock:: 425 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 2 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	0,499 €	0,50 €
	0,407 €	20,35 €
	0,337 €	33,70 €
	0,28 €	140,00 €
	0,259 €	259,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Pin Strip
Number of Positions:	6 Position
Pitch:	2.54 mm (0.1 in)
Number of Rows:	3 Row
Mounting Style:	Through Hole
Termination Style:	Solder Pin
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Contact Plating:	Tin
Mating Post Length:	5.84 mm (0.23 in)
Termination Post Length:	3.2 mm (0.126 in)
Series:	TSW
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 105 C
Packaging:	Bulk
Brand:	Samtec
Contact Material:	Phosphor Bronze
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MY
Current Rating:	4.3 A, 4.6 A, 5.2 A, 5.7 A, 6.3 A
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Housing Material:	Polybutylene Terephthalate (PBT)
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	1
Subcategory:	Headers & Wire Housings
Voltage Rating:	450 VAC, 500 VAC, 515 VAC, 550 VAC

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Images


Specification Sheets

Technical Resources

Test Report (PDF)

USHTS:: 8536694040
ECCN:: EAR99

TSW .100" Through-Hole .025" Square-Post Headers

Samtec TSW Through-Hole Square-Post Headers offer a 400V_AC to 550V_AC voltage range, a 6.3A current rating, and phosphor bronze construction. These TSW headers are an Extended Life Product™ (E.L.P.™), passing 10-year Mixed Flowing Gas (MFG) ratings and achieving high mating cycles (250 to 2500). E.L.P. products are tested to rigorous standards that evaluate contact resistance in simulated storage and field conditions. Samtec TSW Through-Hole Square-Post Headers feature single-, double-, and triple-row options that operate in the -55°C to +125°C temperature range.
