TSM-106-01-L-SV-TR

Name: Samtec TSM-106-01-L-SV-TR
Brand: Samtec
SKU: 200-TSM10601LSVTR
Price: 0.93 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-TSM10601LSVTR

Mfr. No:

TSM-106-01-L-SV-TR

Mfr.:

Samtec

Description:

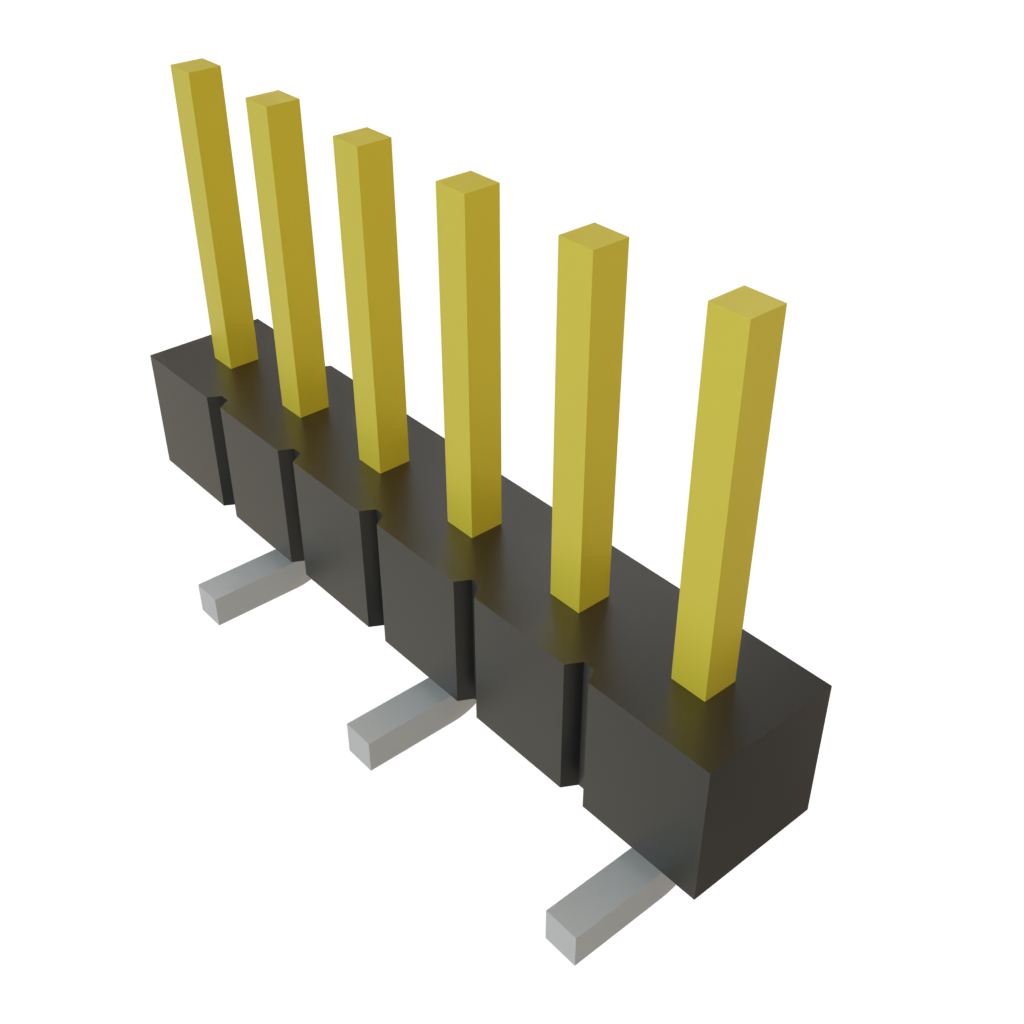

Headers & Wire Housings .100 Surface Mount Terminal Strip
