TMM-110-05-F-D-SM-A

Name: Samtec TMM-110-05-F-D-SM-A
Brand: Samtec
SKU: 200-TMM11005FDSMA
Price: 2.2 EUR
Availability: InStock

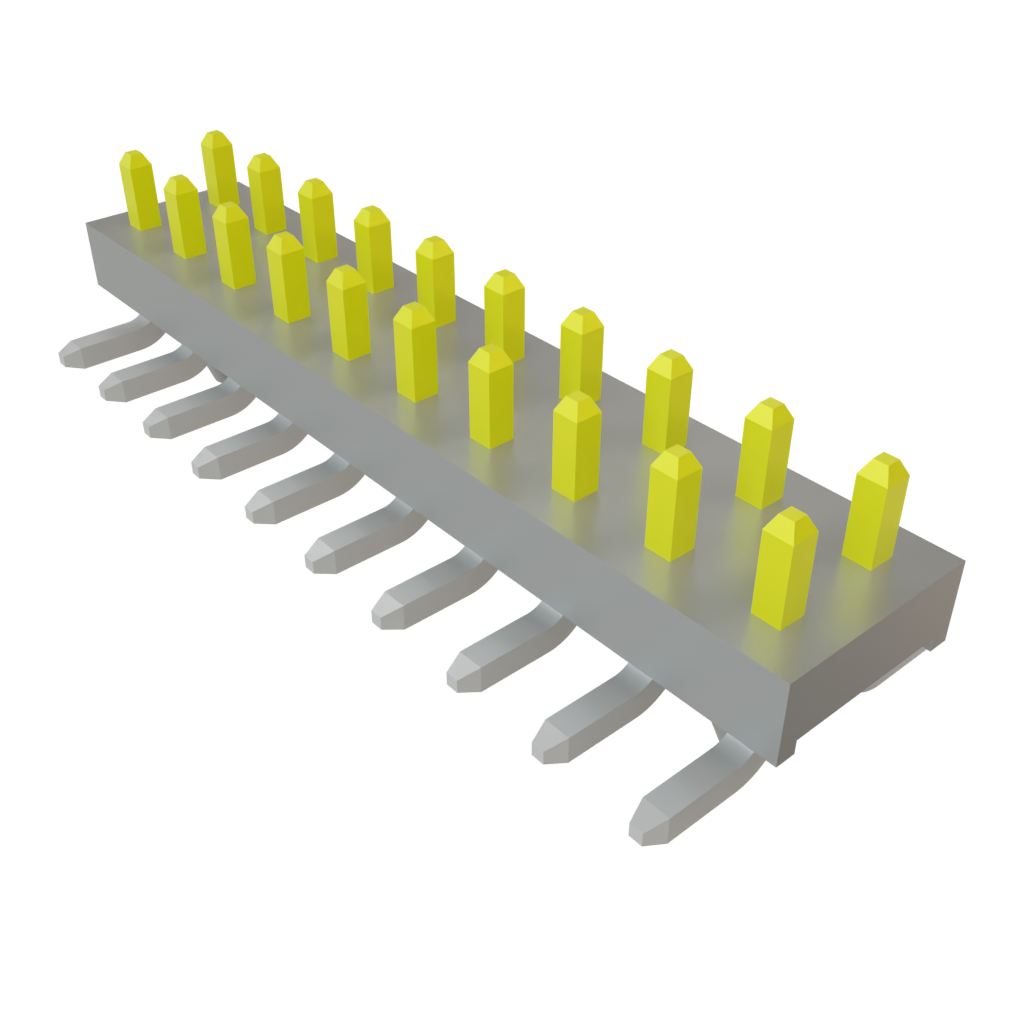

Images are for reference only
See Product Specifications

Mouser No:

200-TMM11005FDSMA

Mfr. No:

TMM-110-05-F-D-SM-A

Mfr.:

Samtec

Description:

Headers & Wire Housings Low Profile Tiger Eye Header Strips

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec TMM-110-05-F-D-SM-A

In Stock: 42

Stock:: 42 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 2 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	2,20 €	2,20 €
	1,89 €	109,62 €
	1,61 €	186,76 €
	1,38 €	720,36 €
	1,27 €	1.289,05 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
Product:	Headers
Type:	Pin Header
Number of Positions:	20 Position
Pitch:	2 mm (0.079 in)
Number of Rows:	2 Row
Mounting Style:	SMD/SMT
Termination Style:	Solder
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Contact Plating:	Gold
Mating Post Length:	1.65 mm (0.065 in)
Termination Post Length:	2.29 mm (0.09 in)
Series:	TMM
Tradename:	FleXYZ
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Tube
Brand:	Samtec
Contact Material:	Phosphor Bronze
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	VN
Current Rating:	3.2 A
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Housing Material:	Liquid Crystal Polymer (LCP)
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	29
Subcategory:	Headers & Wire Housings
Voltage Rating:	250 VAC, 281 VAC

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Images


Models

TMM-110-05-F-D-SM-A Symbol & Footprint by SnapMagic

Specification Sheets

Technical Resources

TARIC:: 8536693000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

TMM Tiger Eye™ Low Profile Header Strips

Samtec TMM Tiger Eye™ Low Profile Header Strips feature a 2mm pitch, configurations up to 200 pins in 4 rows, and 3.2A current rating per pin. These header strips are broken down based on their through-hole or SMT design and mateable counterparts. The TMM series offers a low-profile, phosphor-bronze terminal material, and black LCP insulator material. Samtec TMM Tiger Eye Low Profile Header Strips offer a 250V_AC to 281V_AC voltage rating and -55°C to +125°C temperature range.
