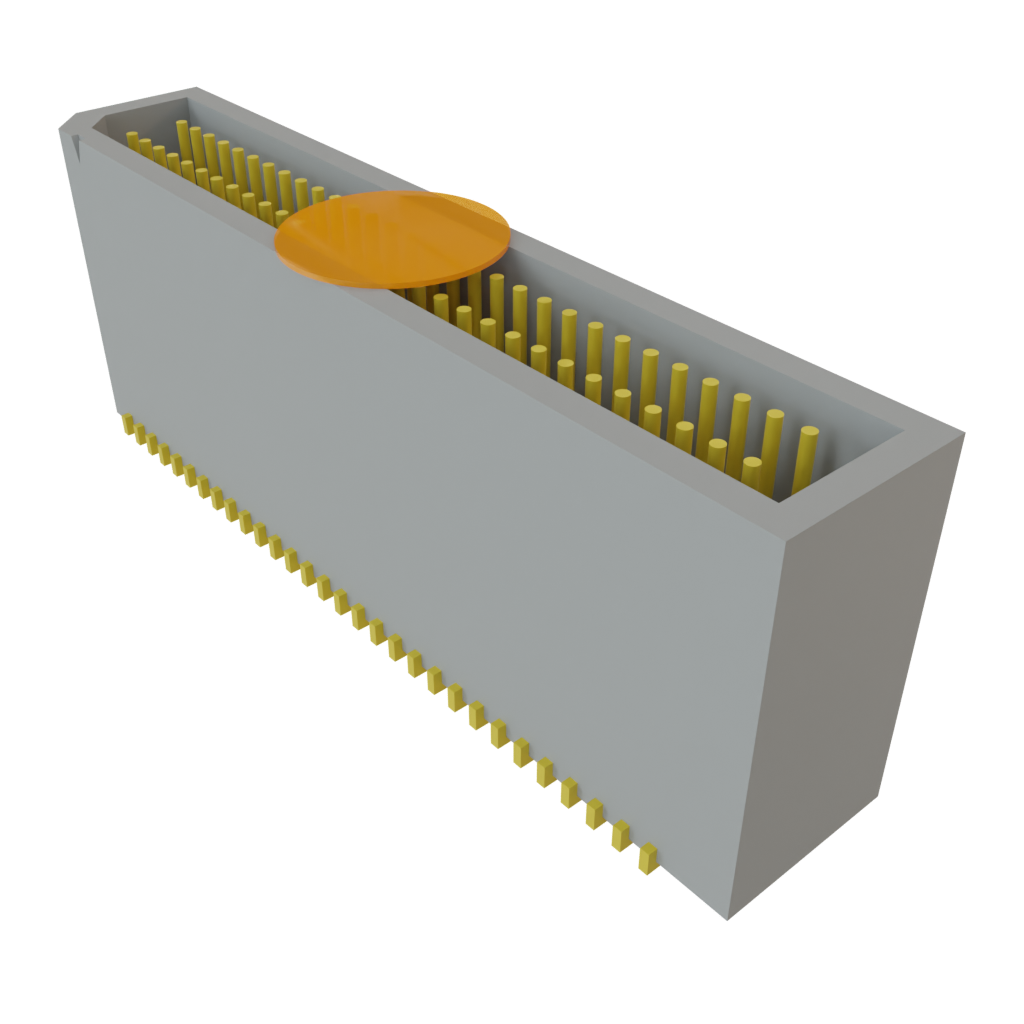

TEMS-130-02-07.0-H-D-A-K-TR

Name: Samtec TEMS-130-02-07.0-H-D-A-K-TR
Brand: Samtec
SKU: 200-TEMS1300207.0HDA
Price: 13.77 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-TEMS1300207.0HDA

Mfr. No:

TEMS-130-02-07.0-H-D-A-K-TR

Mfr.:

Samtec

Description:

Board to Board & Mezzanine Connectors 0.80MM TIGER EYE MICRO TERM

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 405

Stock:: 405 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 45 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	13,77 €	13,77 €
	12,41 €	124,10 €
	11,05 €	276,25 €
	9,02 €	451,00 €
	7,51 €	751,00 €
Full Reel (Order in multiples of 250)
	7,51 €	1.877,50 €
	7,31 €	3.655,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Mounting Style:	SMD/SMT
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Tradename:	Tiger Eye
Packaging:	Reel
Packaging:	Cut Tape
Brand:	Samtec
Contact Material:	Phosphor Bronze
Contact Plating:	Gold
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CR
Current Rating:	2.9 A
Data Rate:	8 Gb/s
Housing Material:	Liquid Crystal Polymer (LCP)
Maximum Data Rate:	8 Gbps
Mounting Angle:	Straight
Number of Positions:	60 Position
Number of Rows:	2 Row
Pitch:	0.8 mm (0.031 in)
Product:	Headers
Product Type:	Board to Board & Mezzanine Connectors
Series:	TEMS
Stack Height:	10 mm
Factory Pack Quantity:	250
Subcategory:	Board to Board & Mezzanine Connectors
Termination Style:	Solder
Voltage Rating:	235 VAC, 330 VDC
Unit Weight:	12,838 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Images


Models

TEMS-130-02-07.0-H-D-A-K-TR Symbol & Footprint by SnapMagic

Specification Sheets

Technical Resources

Test Report (PDF)

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Flexible Stacking Connectors

Samtec Flex Stacking Board Connectors feature a large variety of board-to-board connectors with design flexibility. These Samtec board-to-board connector systems are available in a variety of pitches, densities, stack heights, orientations, and other standard or modified options, making it easy to find the right connector for any application. Flex-Stack options include one-piece, low profile pass-through, elevated, hermaphroditic, shrouded, coplanar, parallel, and perpendicular. Post heights are adjustable in increments of 0.005” (0.13mm).
