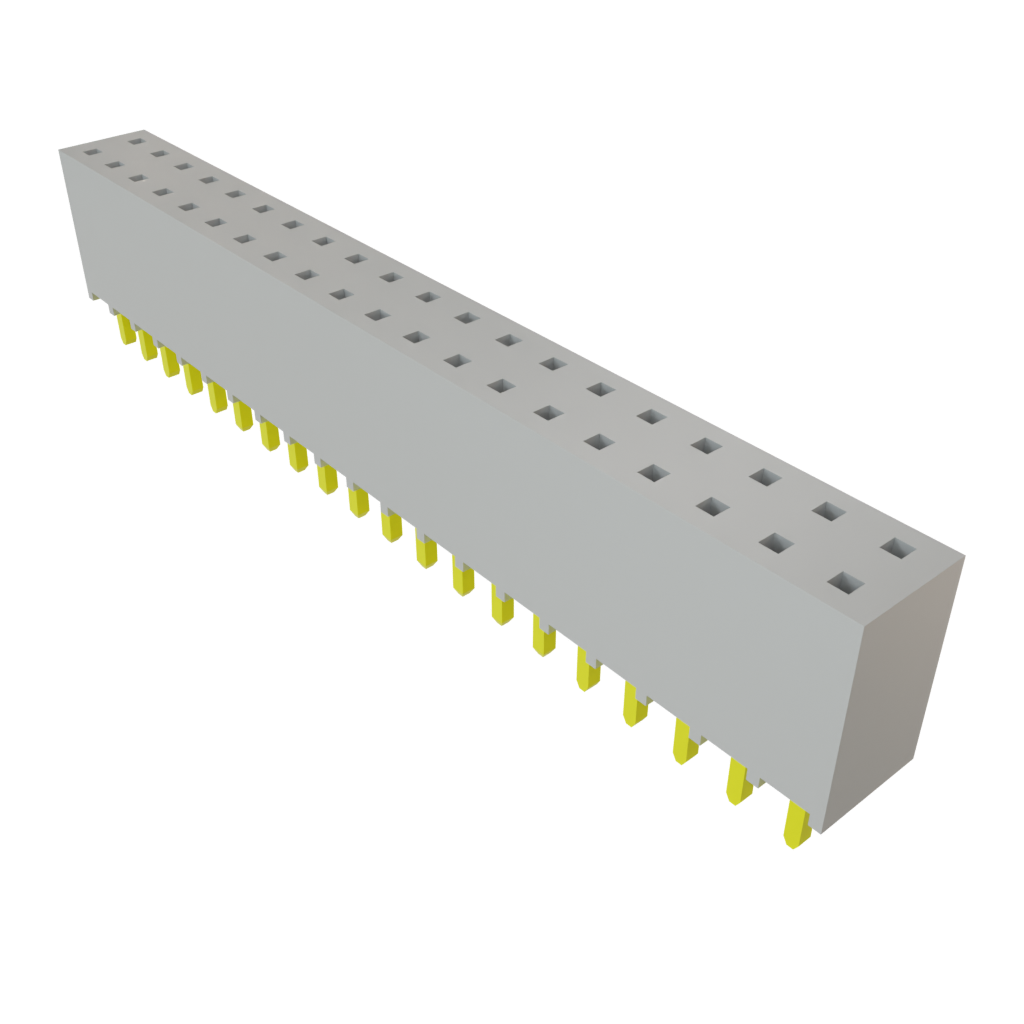

SSQ-120-01-S-D

Images are for reference only
See Product Specifications

Mouser No:

200-SSQ12001SD

Mfr. No:

SSQ-120-01-S-D

Mfr.:

Samtec

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Delivery Restriction:

Mouser does not presently sell this product in your region.

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
Delivery Restriction:	Mouser does not presently sell this product in your region.
RoHS:
Series:	SSQ
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Bulk
Application:	Board-to-Board, Cable
Brand:	Samtec
Contact Gender:	Socket (Female)
Contact Material:	Phosphor Bronze
Contact Plating:	Gold
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	VN
Current Rating:	6.3 A
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Housing Material:	Liquid Crystal Polymer (LCP)
Latching Type:	Unlatched
Mounting Angle:	Straight
Mounting Style:	Through Hole
Number of Positions:	40 Position
Number of Rows:	2 Row
Pitch:	2.54 mm (0.1 in)
Product:	Headers
Product Type:	Headers & Wire Housings
Row Spacing:	2.54 mm (0.1 in)
Factory Pack Quantity:	1
Subcategory:	Headers & Wire Housings
Termination Style:	Solder Pin
Tradename:	Tiger Buy
Type:	Socket
Unit Weight:	2,473 g
