SSQ-103-02-G-T-RA

Name: Samtec SSQ-103-02-G-T-RA
Brand: Samtec
SKU: 200-SSQ10302GTRA
Price: 2.98 EUR
Availability: InStock

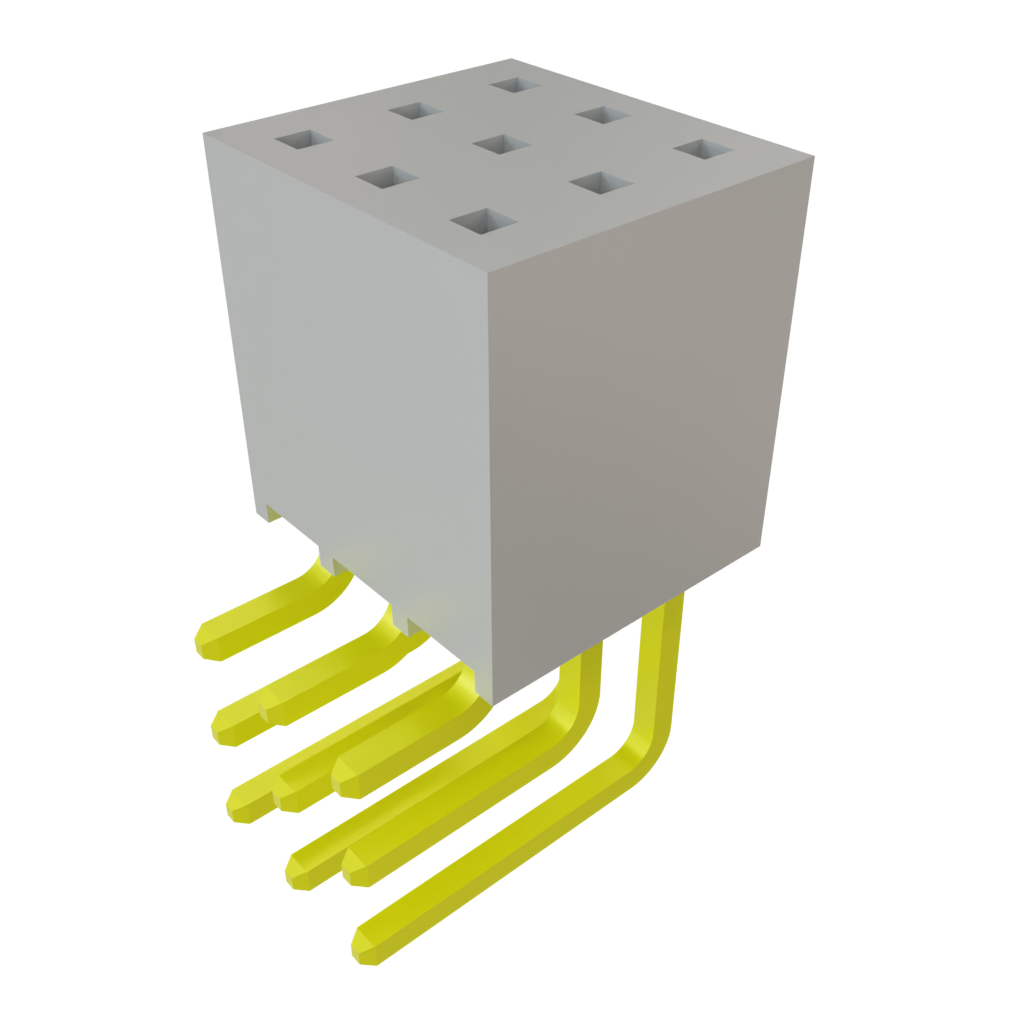

Images are for reference only
See Product Specifications

Mouser No:

200-SSQ10302GTRA

Mfr. No:

SSQ-103-02-G-T-RA

Mfr.:

Samtec

Description:

Headers & Wire Housings Tiger Buy Socket Strip with Square Tails

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec SSQ-103-02-G-T-RA

In Stock: 45

Stock:: 45 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 1 Week Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	2,98 €	2,98 €
	2,45 €	122,50 €
	2,08 €	208,00 €
	1,85 €	925,00 €
	1,72 €	1.720,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
RoHS:
Product:	Sockets
Type:	Socket
Number of Positions:	9 Position
Pitch:	2.54 mm (0.1 in)
Number of Rows:	3 Row
Mounting Style:	Through Hole
Termination Style:	Solder Pin
Mounting Angle:	Right Angle
Contact Plating:	Gold
Series:	SSQ
Tradename:	Tiger Buy
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Bulk
Brand:	Samtec
Contact Material:	Phosphor Bronze
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Current Rating:	6.3 A
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Housing Gender:	Socket
Housing Material:	Liquid Crystal Polymer (LCP)
Latching Type:	Unlatched
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	1
Subcategory:	Headers & Wire Housings
Voltage Rating:	465 VAC, 655 VDC

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Images


Models

SSQ-103-02-G-T-RA Symbol & Footprint by SnapMagic

Specification Sheets

Technical Resources

Test Report (PDF)

CNHTS:: 8536901100
USHTS:: 8536694040
ECCN:: EAR99

SSQ 0.100" Square Tailed Tiger Buy™ Socket Strips

Samtec SSQ 0.100" Pitch Square Tailed Tiger Buy™ Socket Strips are printed circuit board socket strips with high retention and cost-effective Tiger Buy contacts. The RoHS compliant SSQ components feature a square pin for through-hole applications. This makes them ideal for new designs and retrofit applications.
