SSM-120-S-DV-M

Name: Samtec SSM-120-S-DV-M
Brand: Samtec
SKU: 200-SSM120SDVM
Price: 7.34 EUR
Availability: InStock

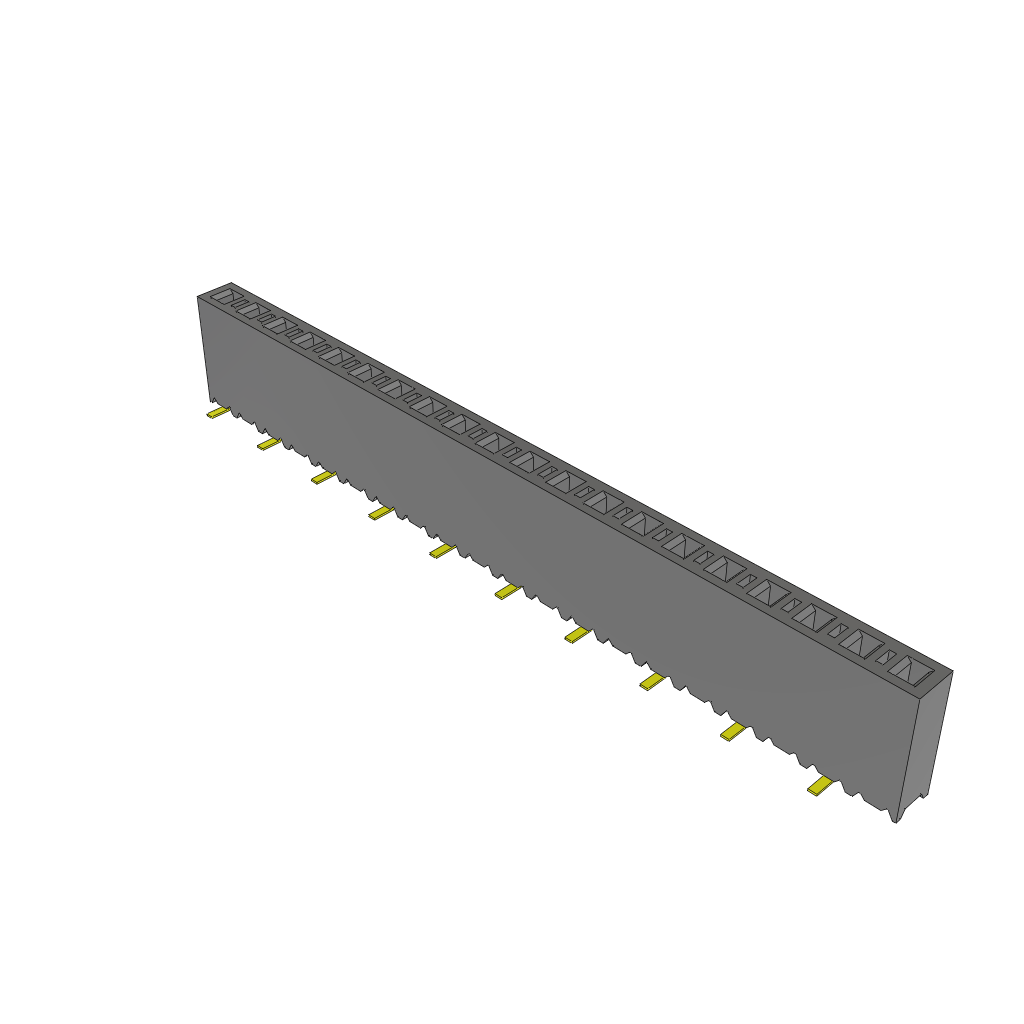

Images are for reference only
See Product Specifications

Mouser No:

200-SSM120SDVM

Mfr. No:

SSM-120-S-DV-M

Mfr.:

Samtec

Description:

Headers & Wire Housings Surface Mount PCB Socket Strips

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec SSM-120-S-DV-M

Availability

Stock:: An unexpected error occurred. Please try again later.

170 Can Dispatch in 10 Days

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	7,34 €	7,34 €
	6,86 €	75,46 €
	5,84 €	321,20 €
	5,40 €	594,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Socket
Number of Positions:	40 Position
Pitch:	2.54 mm (0.1 in)
Number of Rows:	2 Row
Row Spacing:	2.54 mm (0.1 in)
Mounting Style:	SMD/SMT
Termination Style:	Solder
Mounting Angle:	Straight
Contact Plating:	Gold
Series:	SSM
Tradename:	Tiger Claw
Application:	Board-to-Board, Cable
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Tube
Brand:	Samtec
Contact Material:	Phosphor Bronze
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Current Rating:	5.2 A
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Housing Gender:	Socket
Housing Material:	Liquid Crystal Polymer (LCP)
Latching Type:	Unlatched
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	11
Subcategory:	Headers & Wire Housings
Voltage Rating:	405 VAC/572 VDC

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Images

USHTS:: 8536694040
ECCN:: EAR99

SSM .100" (2.54mm) Tiger Claw™ SMT Socket Strips

Samtec SSM .100" (2.54mm) Tiger Claw™ Surface Mount Socket Strips are board-to-board connectors in a variety of densities, stack heights, and orientations. The SSM series features Tiger Claw™ contacts providing an ultra-low profile and dual wipe capability with pass-through functionality. The contact in the square post sockets allows for the long terminal strip pins to pass through the socket and PCB to another socket. This feature allows for space savings, routing flexibility, and fewer connectors. The highly reliable, rugged sockets are available in vertical and right-angle orientations which have passed 10 years in mixed flowing gas (MFG) environments. Popular mating connectors of the SSM series are the TSW, TSM, MTSW, DW, ZW, and HW series.
