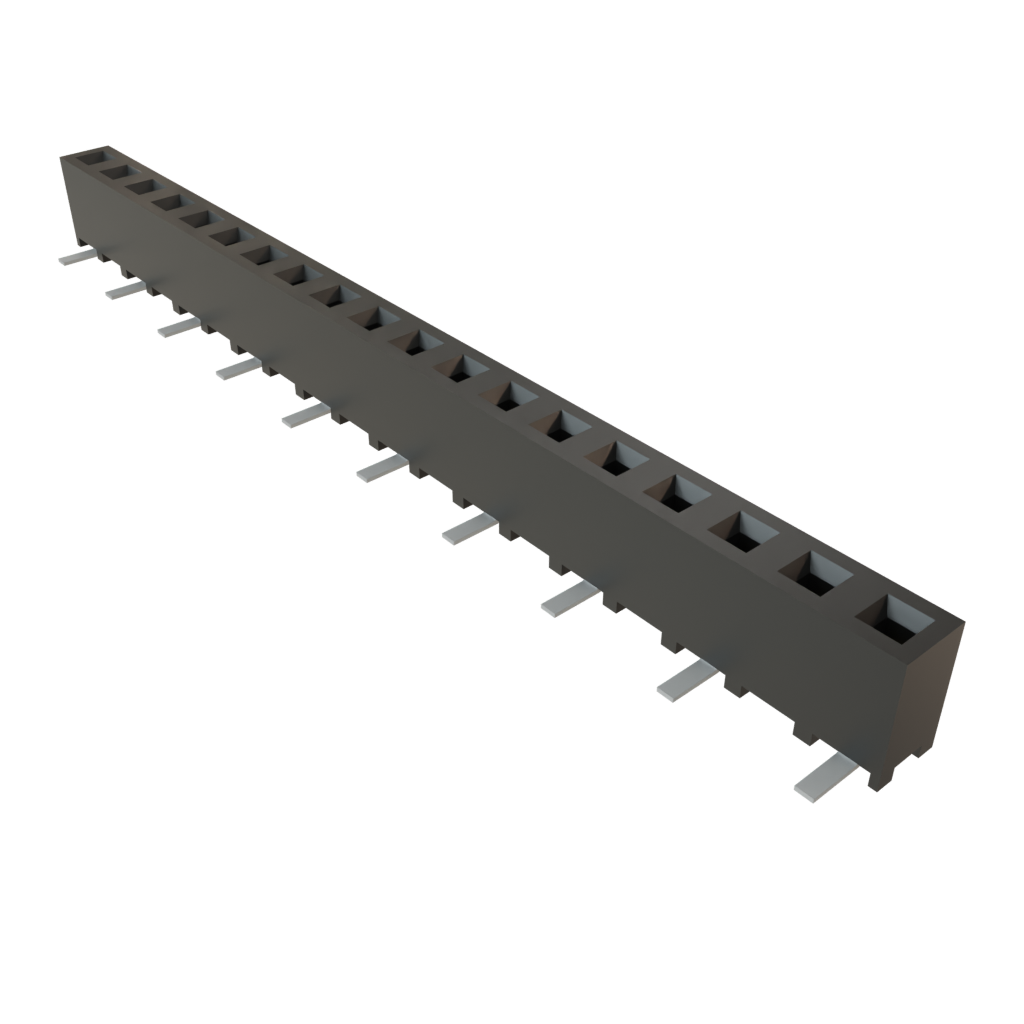

SMM-119-02-S-S

Name: Samtec SMM-119-02-S-S
Brand: Samtec
SKU: 200-SMM11902SS
Price: 4.95 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-SMM11902SS

Mfr. No:

SMM-119-02-S-S

Mfr.:

Samtec

Description:

Board to Board & Mezzanine Connectors Low Profile Socket Strips

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

Availability

Stock:: An unexpected error occurred. Please try again later.

175 Can Dispatch in 10 Days

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	4,95 €	4,95 €
	4,48 €	134,40 €
	4,07 €	244,20 €
	3,74 €	392,70 €
	3,46 €	1.764,60 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Sockets
Number of Positions:	38 Position
Pitch:	2 mm (0.079 in)
Number of Rows:	2 Row
Termination Style:	Solder
Mounting Angle:	Straight
Current Rating:	3.2 A
Voltage Rating:	350 V
Maximum Data Rate:	8 Gbps
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Contact Plating:	Gold
Contact Material:	Beryllium Copper
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	SMM
Packaging:	Tube
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MY
Data Rate:	8 Gbps
Flammability Rating:	UL 94 V-0
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	15
Subcategory:	Board to Board & Mezzanine Connectors
Tradename:	Tiger Eye

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Images


Models

SMM-119-02-S-S Symbol & Footprint by SnapMagic

Specification Sheets

Technical Resources

Test Report (PDF)

USHTS:: 8536694040
ECCN:: EAR99

Flexible Stacking Connectors

Samtec Flex Stacking Board Connectors feature a large variety of board-to-board connectors with design flexibility. These Samtec board-to-board connector systems are available in a variety of pitches, densities, stack heights, orientations, and other standard or modified options, making it easy to find the right connector for any application. Flex-Stack options include one-piece, low profile pass-through, elevated, hermaphroditic, shrouded, coplanar, parallel, and perpendicular. Post heights are adjustable in increments of 0.005” (0.13mm).
