SMB7H-J-P-HN-RA-TH1

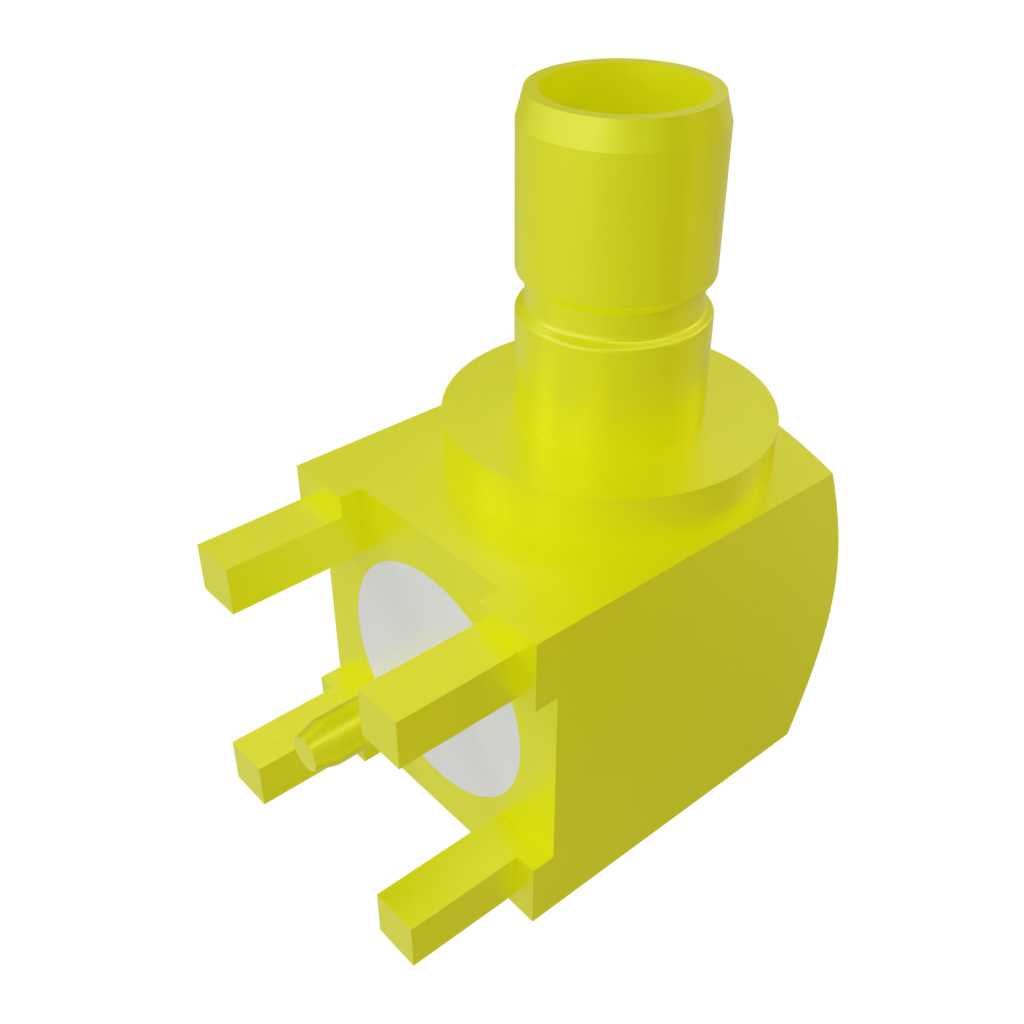

Name: Samtec SMB7H-J-P-HN-RA-TH1
Brand: Samtec
SKU: 200-SMB7H-JPHNRATH1
Price: 9.23 EUR
Availability: InStock

Mouser No:

200-SMB7H-JPHNRATH1

Mfr. No:

SMB7H-J-P-HN-RA-TH1

Mfr.:

Samtec

Description:

RF Connectors / Coaxial Connectors N/A

Datasheet:

SMB7H-J-P-HN-RA-TH1 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec SMB7H-J-P-HN-RA-TH1

Availability

Stock:: An unexpected error occurred. Please try again later.

548 Can Dispatch in 10 Days

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	9,23 €	9,23 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	RF Connectors / Coaxial Connectors
RoHS:
REACH - SVHC:
Product:	Connectors
RF Series:	SMB
Impedance:	75 Ohms
Maximum Frequency:	4 GHz
Termination Style:	Solder
Polarity:	Standard
Packaging:	Bulk
Body Material:	Brass
Brand:	Samtec
Contact Material:	Brass
Contact Plating:	Gold
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	TW
Frequency:	4 GHz
Maximum Operating Temperature:	+ 165 C
Minimum Operating Temperature:	- 65 C
Product Type:	RF Connectors / Coaxial Connectors
Series:	SMB7H
Factory Pack Quantity:	1
Subcategory:	RF Interconnects
Voltage Rating:	335 V

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

SMB7H-J-P-HN-RA-TH1 Datasheet (PDF)

Images


Specification Sheets

Technical Resources

Test Report (PDF)

TARIC:: 8536691000
CNHTS:: 8536901100
CAHTS:: 8536690010
USHTS:: 8536694010
JPHTS:: 853669000
KRHTS:: 8536691000
BRHTS:: 85366990
ECCN:: EAR99

Low Frequency RF Cables & Interconnects

Samtec offers a wide range of Low-Frequency RF Cables and Interconnects designed for 50Ω and 75Ω applications with a variety of straight and right-angle jacks, plugs, and bulkhead jacks. Vertical, right-angle, or edge-mount orientations and through-hole, surface-mount, or mixed technology PCB terminations are available for these products. The RF board connectors are available for board-to-board or cable-to-board, ganged, and blind-mate applications. Samtec RF cable assemblies are available with low-loss microwave/millimeter wave cables from 0.047 to 0.277, RG-type cables, 12G-SKI Belden cables, high-density ganged, and Samtec-optimized varieties. Additionally, Samtec RF cable connectors with bayonet, threaded, and push-on coupling features are available for a wide variety of industry-standard cables.
