SEAF8-30-05.0-L-04-3

Name: Samtec SEAF8-30-05.0-L-04-3
Brand: Samtec
SKU: 200-SEAF830-05-L-043
Price: 7.64 EUR
Availability: OutOfStock

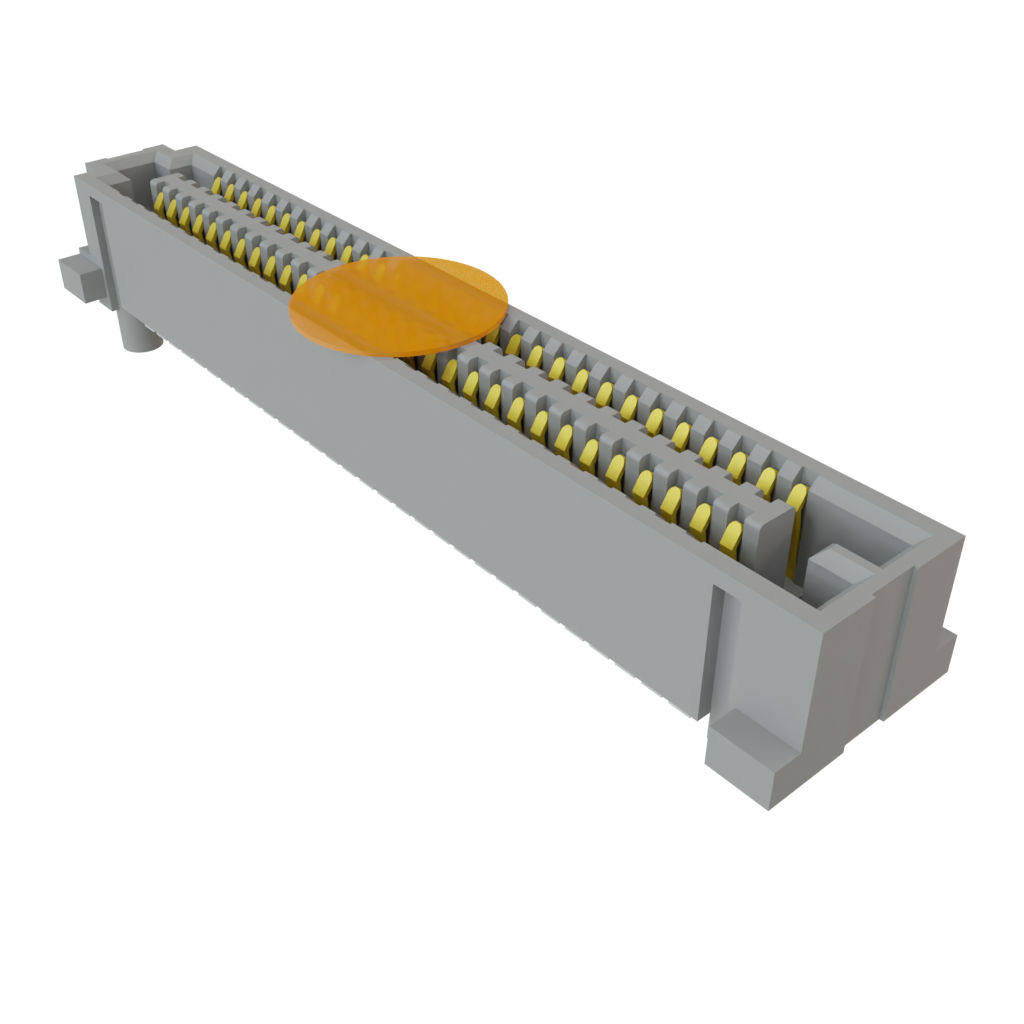

Images are for reference only
See Product Specifications

Mouser No:

200-SEAF830-05-L-043

Mfr. No:

SEAF8-30-05.0-L-04-3

Mfr.:

Samtec

Description:

Board to Board & Mezzanine Connectors 0.80MM SEARAY HS HD SKT ARRAY

Datasheet:

SEAF8-30-05.0-L-04-3 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

Availability

Stock:: Non-Stocked

An unexpected error occurred. Please try again later.
Factory Lead Time:: 2 Weeks Estimated factory production time.

Enter Quantity:

Minimum: 575 Multiples: 575

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

This Product Ships FREE

Pricing (EUR)

Qty.	Unit Price	Ext. Price
Full Reel (Order in multiples of 575)
	7,64 €	4.393,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Sockets
Number of Positions:	120 Position
Pitch:	0.8 mm (0.031 in)
Number of Rows:	4 Row
Termination Style:	Solder
Mounting Angle:	Straight
Current Rating:	1.3 A
Maximum Data Rate:	56 Gbps
Contact Plating:	Gold
Contact Material:	Copper Alloy
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	SEAF8
Packaging:	Reel
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Data Rate:	56 Gbps
Mounting Style:	PCB Mount
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	575
Subcategory:	Board to Board & Mezzanine Connectors
Tradename:	SEARAY

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Resources

Conflict Material Declaration (Spreadsheet)

TARIC:: 8536693000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
BRHTS:: 85366990
ECCN:: EAR99

Flexible Stacking Connectors

Samtec Flex Stacking Board Connectors feature a large variety of board-to-board connectors with design flexibility. These Samtec board-to-board connector systems are available in a variety of pitches, densities, stack heights, orientations, and other standard or modified options, making it easy to find the right connector for any application. Flex-Stack options include one-piece, low profile pass-through, elevated, hermaphroditic, shrouded, coplanar, parallel, and perpendicular. Post heights are adjustable in increments of 0.005” (0.13mm).
