QFSS-052-04.25-L-D-PT4

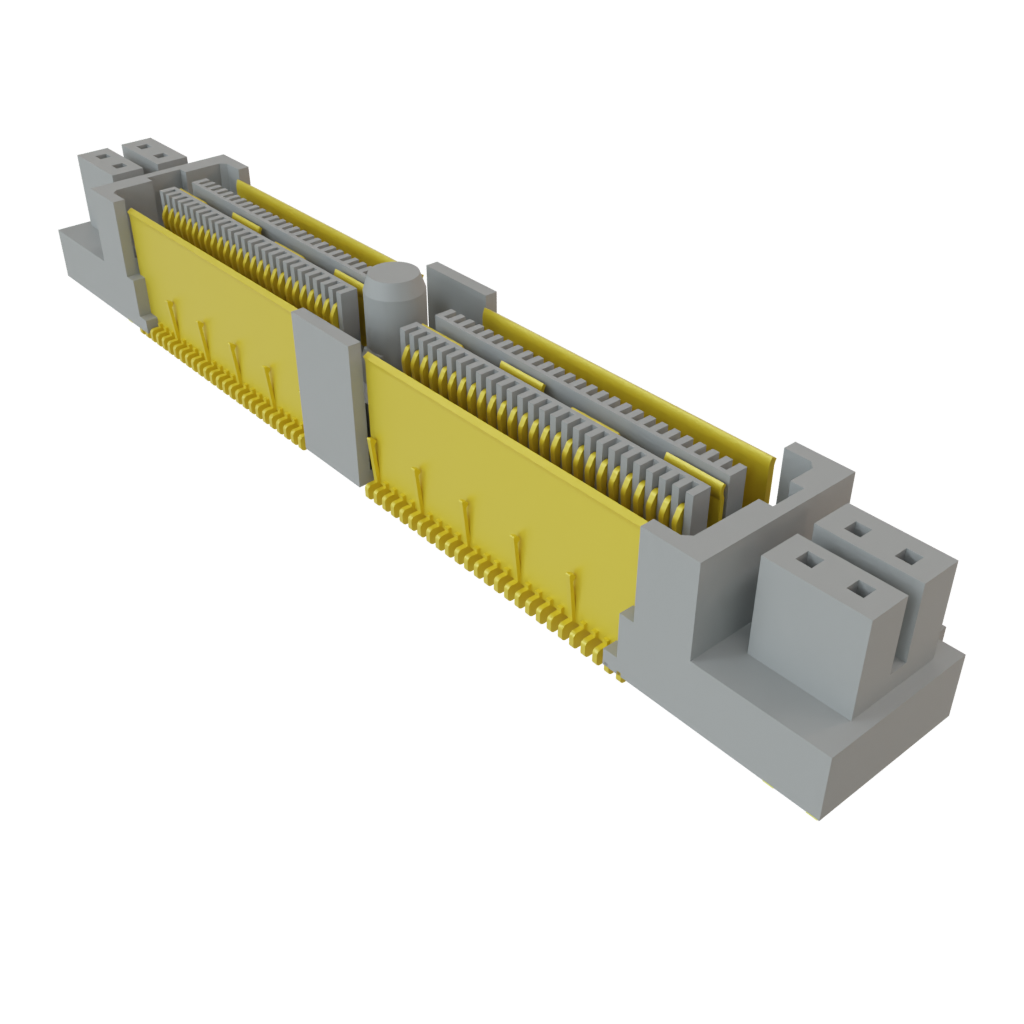

Name: Samtec QFSS-052-04.25-L-D-PT4
Brand: Samtec
SKU: 200-QFSS0520425LDPT4
Price: 18.97 EUR
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

200-QFSS0520425LDPT4

Mfr. No:

QFSS-052-04.25-L-D-PT4

Mfr.:

Samtec

Description:

Board to Board & Mezzanine Connectors 0.635 mm Q2 Shielded Ground Plane Socket Strip

Datasheet:

QFSS-052-04.25-L-D-PT4 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec QFSS-052-04.25-L-D-PT4

Availability

Stock:: Non-Stocked

An unexpected error occurred. Please try again later.
Factory Lead Time:: 14 Weeks Estimated factory production time.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	18,97 €	18,97 €
	17,97 €	179,70 €
	16,93 €	423,25 €
	14,91 €	1.744,47 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Sockets
Number of Positions:	112 Position
Pitch:	0.635 mm (0.025 in)
Number of Rows:	2 Row
Termination Style:	Solder
Mounting Angle:	Straight
Stack Height:	11 mm
Voltage Rating:	300 VAC
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Contact Plating:	Gold
Contact Material:	Phosphor Bronze
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	QFSS
Packaging:	Tray
Application:	Rugged Applications, Standard Shield Grounding
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CR
Mounting Style:	Mounting Peg
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	39
Subcategory:	Board to Board & Mezzanine Connectors
Tradename:	Q2

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Resources

Test Report (PDF)

TARIC:: 8536693000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Q2™ Shielded Ground Plane Connectors

Samtec Q2™ Shielded Ground Plane Connectors are rugged, high-speed, 0.635mm pitch, ground plane sockets and headers with a 19Gbps to 35Gbps performance range. The board-to-board Q2™ Shielded Connectors include the QFSS and QMSS series components that are available in multiple orientations, stack heights, positions, and with power/RF end options. These connectors are also available as a differential pair and/or power combo and meet the PCI/104-Express™ standard specifications.
