PRFIA-SMPM-J-J-S-4

Name: Samtec PRFIA-SMPM-J-J-S-4
Brand: Samtec
SKU: 200-PRFIASMPMJJS4
Price: 10.71 EUR
Availability: InStock

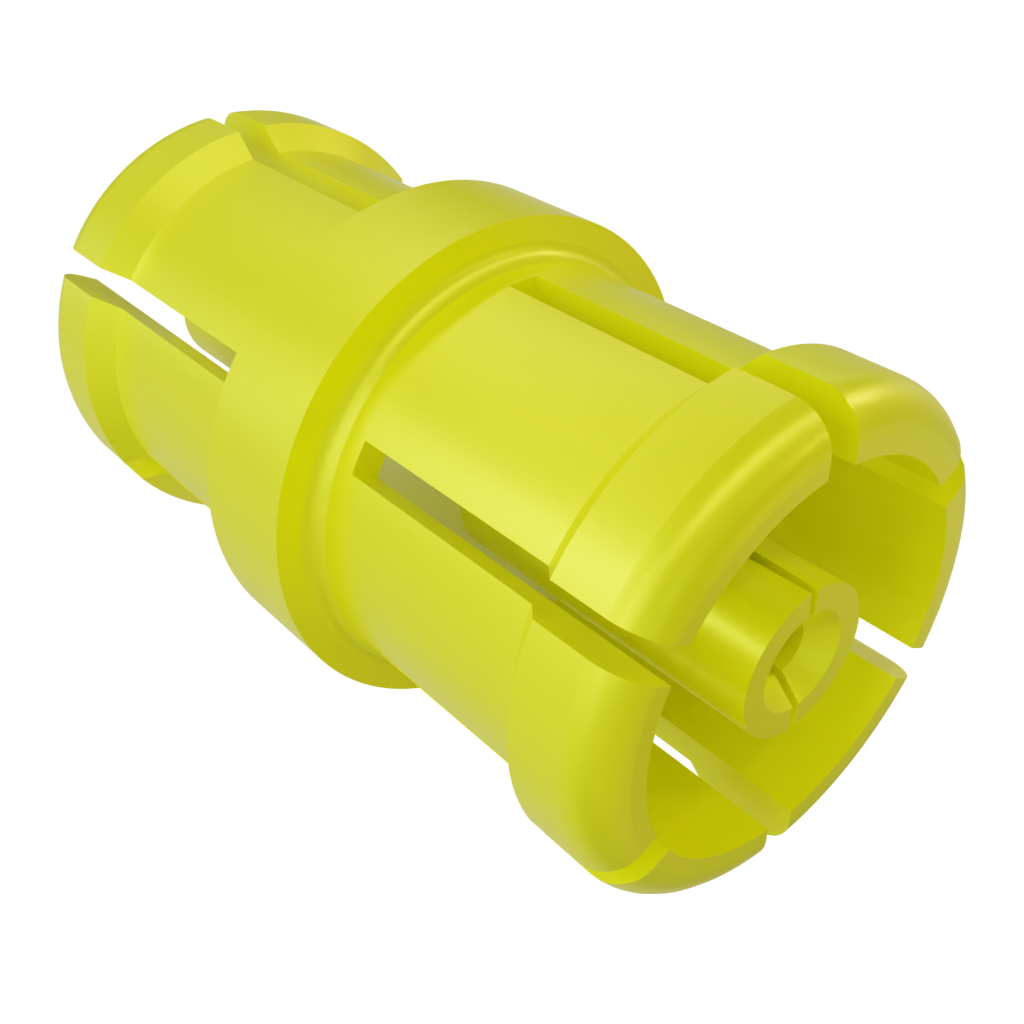

Images are for reference only
See Product Specifications

Mouser No:

200-PRFIASMPMJJS4

Mfr. No:

PRFIA-SMPM-J-J-S-4

Mfr.:

Samtec

Description:

RF Connectors / Coaxial Connectors 50 Ohm

Datasheet:

PRFIA-SMPM-J-J-S-4 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec PRFIA-SMPM-J-J-S-4

In Stock: 1.561

Stock:: 1.561 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 1 Week Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	10,71 €	10,71 €
	9,86 €	98,60 €
	9,37 €	234,25 €
	9,02 €	451,00 €
	8,30 €	830,00 €
	7,80 €	2.246,40 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	RF Connectors / Coaxial Connectors
RoHS:
Product:	Connectors
Gender:	Jack (Socket)
Impedance:	50 Ohms
Orientation:	Straight
Packaging:	Tray
Body Finish:	Gold
Body Material:	Copper
Body Style:	Straight
Brand:	Samtec
Contact Material:	Copper
Contact Plating:	Gold
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	TW
Product Type:	RF Connectors / Coaxial Connectors
Series:	PRFIA
Factory Pack Quantity:	144
Subcategory:	RF Interconnects
Tradename:	Magnum RF

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

PRFIA-SMPM-J-J-S-4 Datasheet (PDF)

Images


Specification Sheets

Technical Resources

Test Report (PDF)

Conflict Material Declaration (Spreadsheet)

TARIC:: 8536691000
CAHTS:: 8536690010
USHTS:: 8536694010
JPHTS:: 853669000
KRHTS:: 8536691000
BRHTS:: 85366990
ECCN:: EAR99

Magnum RF™ Connectors / Cable Assemblies

Samtec Magnum RF™ Connectors / Cable Assemblies are ganged, multi-position RF blocks and cable assemblies for millimeter-wave applications. These products are ideal when limited space and a high operating frequency are required. The ganged SMPM connectors operate mode-free up to 65GHz frequency. These connectors feature a micro-miniature SMPM style that enables small bundle sizes for weight savings and increased airflow for cooling.

PRFIA RF Connectors

Samtec PRFIA RF Connectors are 50Ω, straight-orientation in-series precision RF adapters. The board-to-board PRFIA RF connectors mate with a bullet, standard, or spring-loaded. The SMPM spring-loaded adapters provide higher vibration tolerance for maintaining consistent signal contact. Samtec PRFIA RF Connectors are suitable for precision measurement or SMPM adapters for high-density blind-mate applications.
