MTMM-105-09-L-D-320

Name: Samtec MTMM-105-09-L-D-320
Brand: Samtec
SKU: 200-MTMM-105-09LD320
Price: 1.11 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-MTMM-105-09LD320

Mfr. No:

MTMM-105-09-L-D-320

Mfr.:

Samtec

Description:

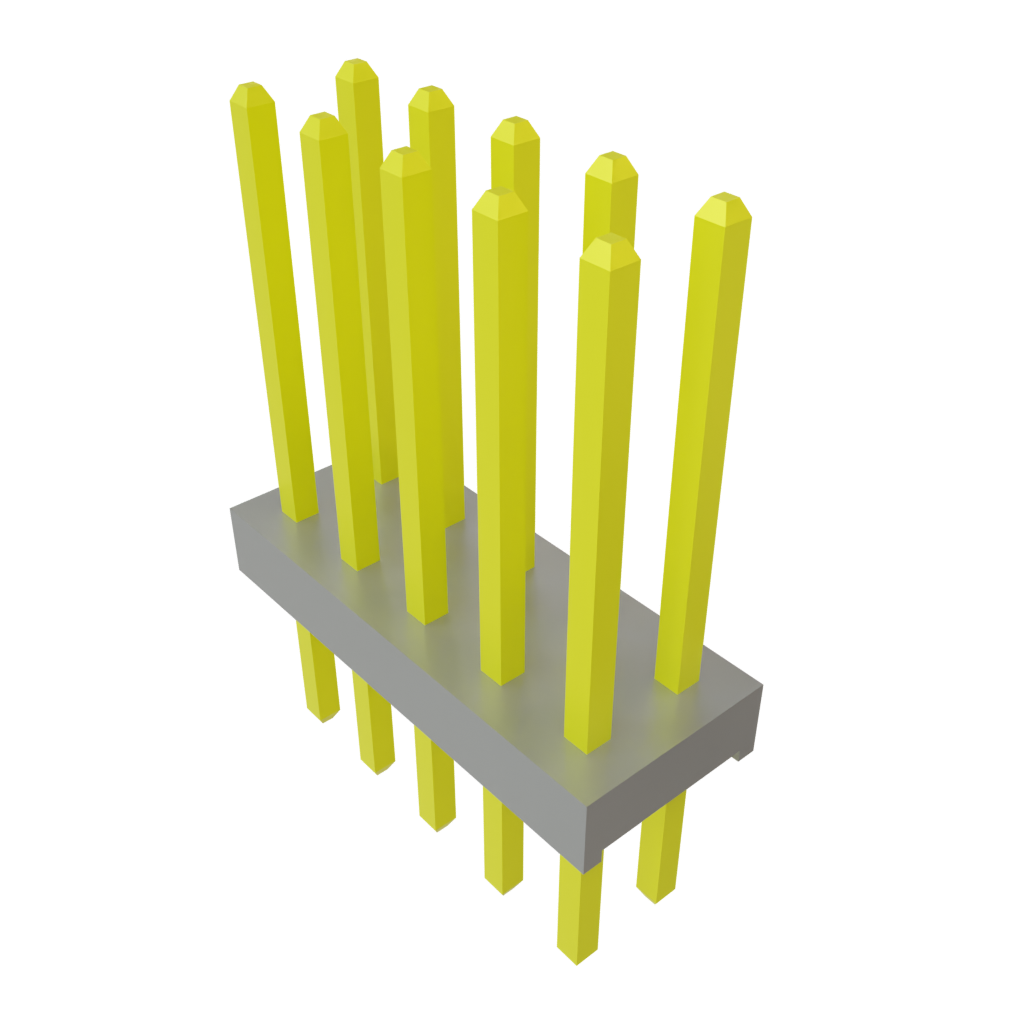

Headers & Wire Housings Variable Post Height Header Strips

Datasheet:

MTMM-105-09-L-D-320 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 24

Stock:: 24 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 1 Week Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	1,11 €	1,11 €
	0,989 €	49,45 €
	0,886 €	88,60 €
	0,791 €	395,50 €
	0,749 €	749,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
Product:	Headers
Type:	Pin Strip
Number of Positions:	10 Position
Pitch:	2 mm (0.079 in)
Number of Rows:	2 Row
Row Spacing:	2 mm (0.079 in)
Mounting Style:	Through Hole
Termination Style:	Solder Pin
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Contact Plating:	Gold
Mating Post Length:	12.09 mm (0.476 in)
Termination Post Length:	1.5 mm (0.059 in)
Series:	MTMM
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Bulk
Brand:	Samtec
Contact Material:	Phosphor Bronze
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Housing Material:	Liquid Crystal Polymer (LCP)
Latching Type:	Unlatched
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	1
Subcategory:	Headers & Wire Housings

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Resources

Dimensional Drawing, Footprint, and Part Number Configuration

USHTS:: 8536694040
ECCN:: EAR99
