HMTSW-124-07-G-D-140

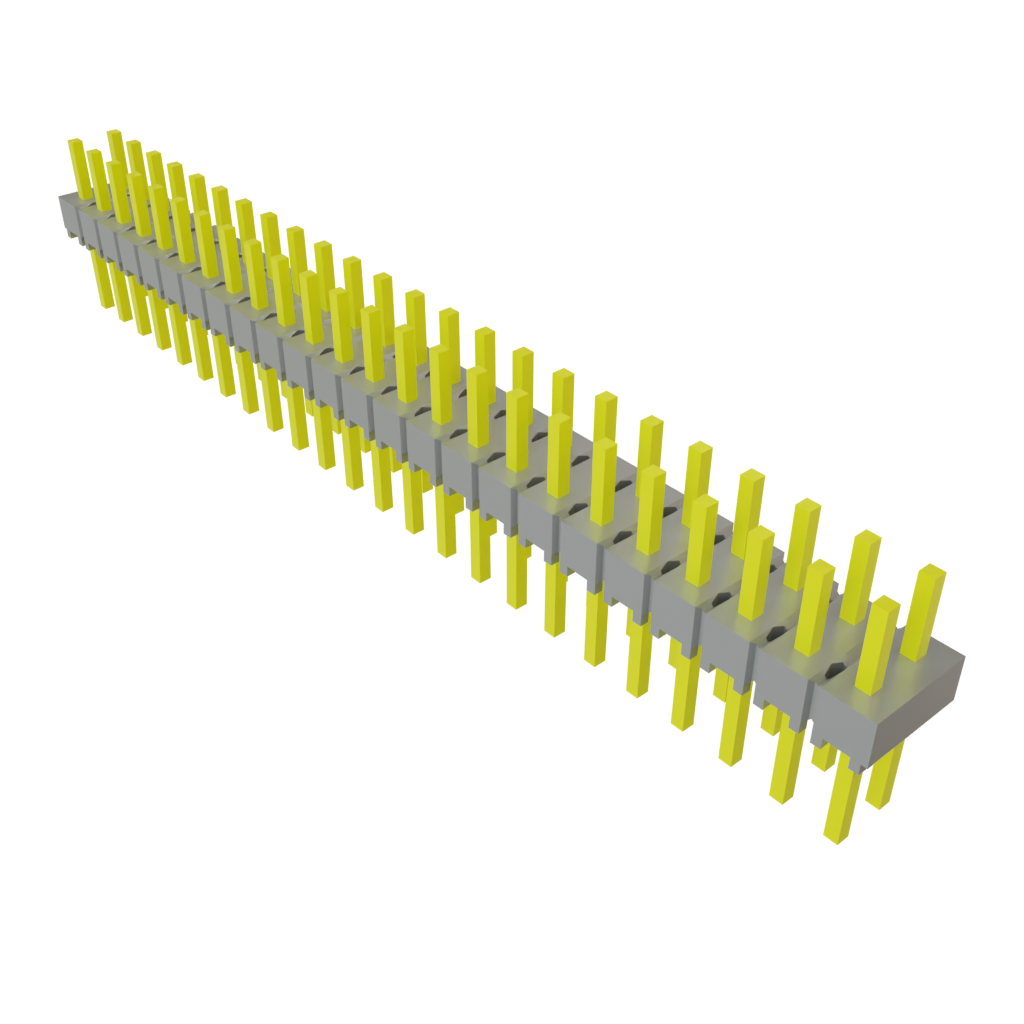

Name: Samtec HMTSW-124-07-G-D-140
Brand: Samtec
SKU: 200-HMTSW12407GD140
Price: 3.6 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-HMTSW12407GD140

Mfr. No:

HMTSW-124-07-G-D-140

Mfr.:

Samtec

Datasheet:

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

Stock:: An unexpected error occurred. Please try again later.

166 Can Dispatch in 10 Days

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Pin Strip
Number of Positions:	48 Position
Pitch:	2.54 mm (0.1 in)
Number of Rows:	2 Row
Mounting Style:	Through Hole
Termination Style:	Solder Pin
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Contact Plating:	Gold
Mating Post Length:	3.556 mm (0.14 in)
Termination Post Length:	6.1 mm (0.24 in)
Series:	HMTSW
Tradename:	Flex Stack
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Bulk
Brand:	Samtec
Contact Material:	Phosphor Bronze
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MY
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Housing Material:	Liquid Crystal Polymer (LCP)
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	1
Subcategory:	Headers & Wire Housings
Unit Weight:	788,160 mg
