HMTSW-120-08-F-D-220

Name: Samtec HMTSW-120-08-F-D-220
Brand: Samtec
SKU: 200-HMTSW12008FD220
Price: 3.32 EUR
Availability: InStock

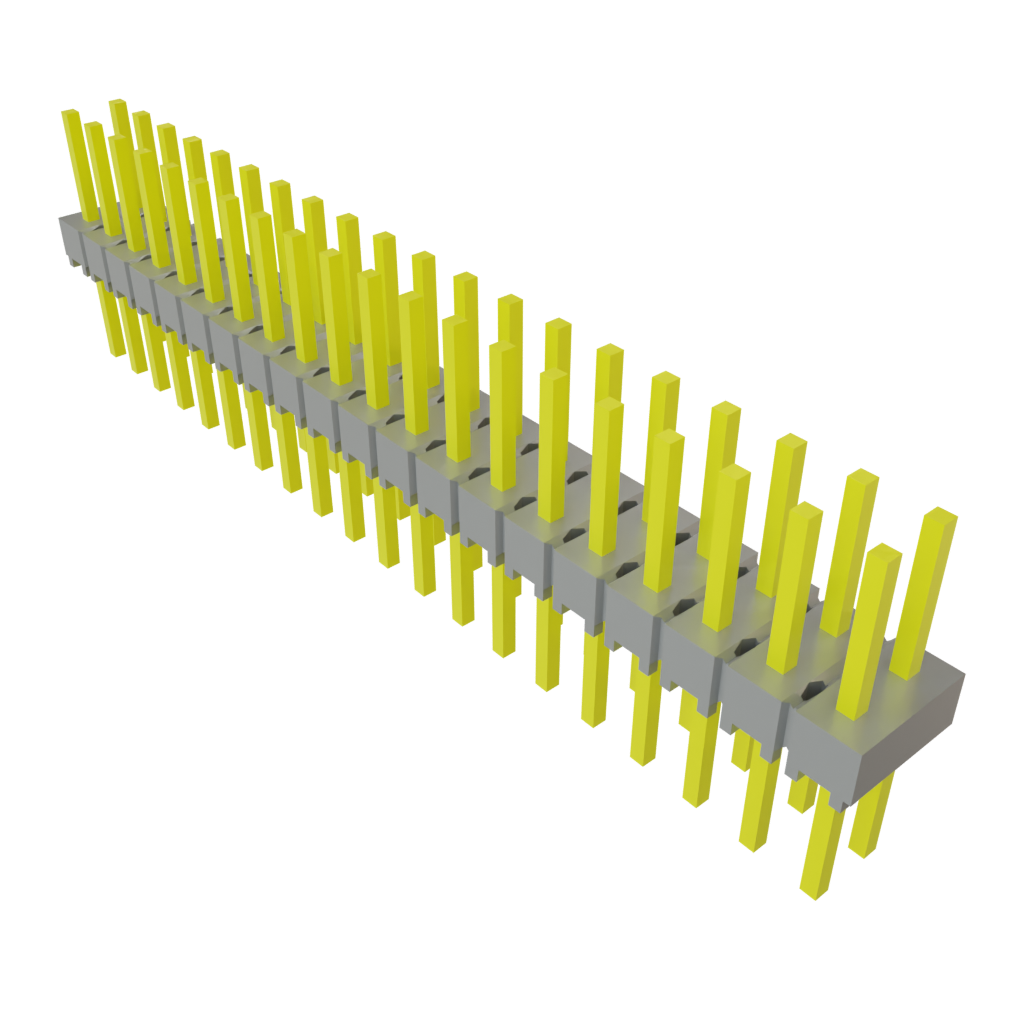

Images are for reference only
See Product Specifications

Mouser No:

200-HMTSW12008FD220

Mfr. No:

HMTSW-120-08-F-D-220

Mfr.:

Samtec

Datasheet:

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

Stock:: 37 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 2 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
RoHS:
Series:	HMTSW
Brand:	Samtec
Contact Gender:	Pin (Male)
Contact Material:	Phosphor Bronze
Contact Plating:	Gold
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Housing Material:	Liquid Crystal Polymer (LCP)
Mating Post Length:	5.588 mm (0.22 in)
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 55 C
Mounting Angle:	Straight
Mounting Style:	Through Hole
Number of Positions:	40 Position
Number of Rows:	2 Row
Packaging:	Bulk
Pitch:	2.54 mm (0.1 in)
Product:	Headers
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	1
Subcategory:	Headers & Wire Housings
Termination Post Length:	8.64 mm (0.34 in)
Termination Style:	Solder Pin
Tradename:	Flex Stack
Type:	Pin Strip
