HLE-113-02-L-DV-BE-A-P-TR

Name: Samtec HLE-113-02-L-DV-BE-A-P-TR
Brand: Samtec
SKU: 200-HLE1132LDVBEAPTR
Price: 3.96 EUR
Availability: InStock

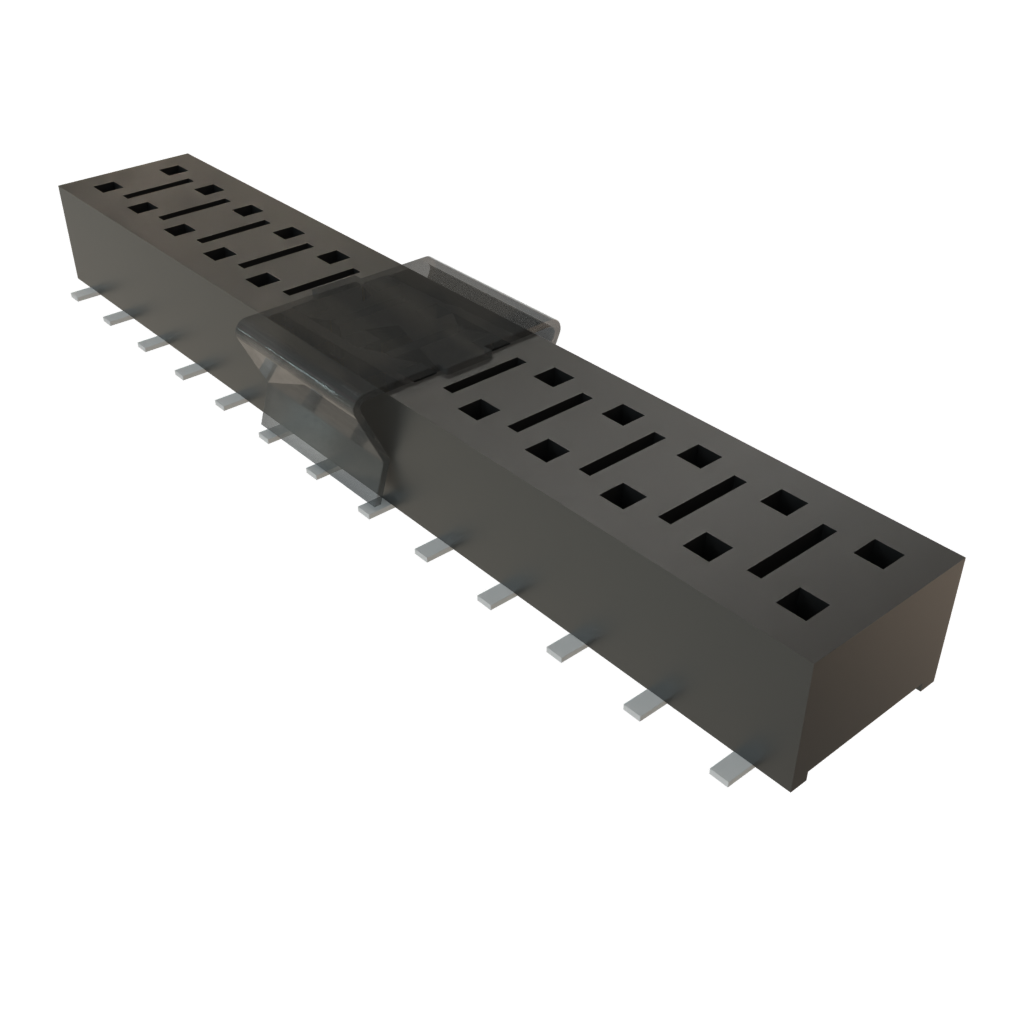

Images are for reference only
See Product Specifications

Mouser No:

200-HLE1132LDVBEAPTR

Mfr. No:

HLE-113-02-L-DV-BE-A-P-TR

Mfr.:

Samtec

Datasheet:

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

Stock:: 31 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 14 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Packaging:

Full Reel (Order in multiples of 750)

Cut Tape

MouseReel™ (+5,00 €)

Qty.	Unit Price	Ext. Price
Cut Tape / MouseReel™ ^†
	3,96 €	3,96 €
	3,66 €	91,50 €
	3,38 €	169,00 €
	3,06 €	306,00 €
	2,82 €	1.410,00 €
Full Reel (Order in multiples of 750)
	2,74 €	2.055,00 €
	2,68 €	6.030,00 €

† A MouseReel™ fee of 5,00 € will be added and calculated in your basket. All MouseReel™ orders are non-cancellable and non-returnable. ↩

Mfr. Part No.:

Packaging:

Tube

Availability:

In Stock

Price:

4,25 €

Min:

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
REACH - SVHC:
Product:	Sockets
Type:	Socket
Number of Positions:	26 Position
Pitch:	2.54 mm (0.1 in)
Number of Rows:	2 Row
Mounting Style:	SMD/SMT
Termination Style:	Solder
Mounting Angle:	Straight
Contact Gender:	Socket (Female)
Contact Plating:	Gold
Termination Post Length:	3.055 mm (0.12 in)
Series:	HLE
Tradename:	Tiger Beam
Application:	Board-to-Board
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	Samtec
Contact Material:	Beryllium Copper
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MY
Current Rating:	4.1 A
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Housing Material:	Liquid Crystal Polymer (LCP)
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	750
Subcategory:	Headers & Wire Housings
Voltage Rating:	400 VAC
