ERCD-020-12.00-TEU-TED-1-B

Name: Samtec ERCD-020-12.00-TEU-TED-1-B
Brand: Samtec
SKU: 200-ERCD2012TEUTED1B
Price: 99.76 EUR
Availability: InStock

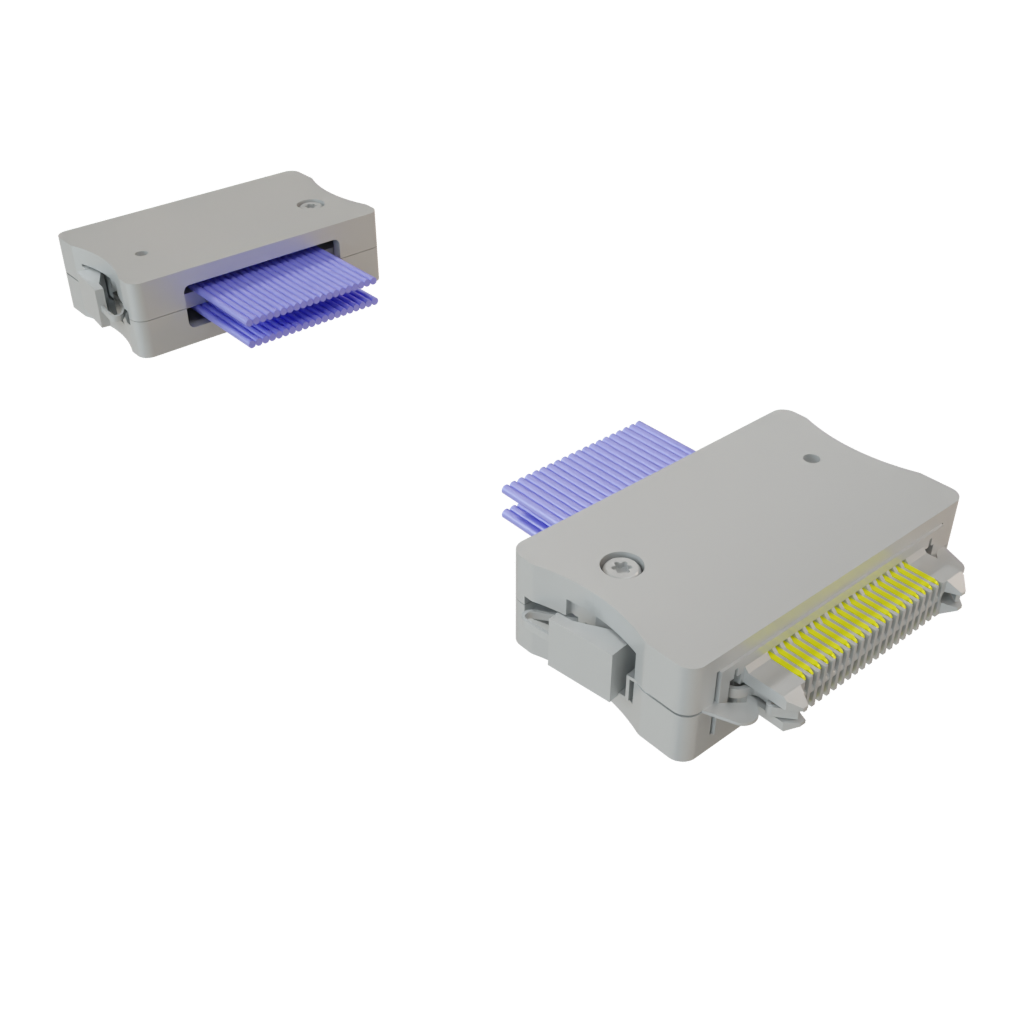

Images are for reference only
See Product Specifications

Mouser No:

200-ERCD2012TEUTED1B

Mfr. No:

ERCD-020-12.00-TEU-TED-1-B

Mfr.:

Samtec

Description:

Ribbon Cables / IDC Cables 0.80 mm Edge Rate Coax Cable Assembly

Datasheet:

ERCD-020-12.00-TEU-TED-1-B Datasheet (PDF)

More Information

Learn more about Samtec ERCD-020-12.00-TEU-TED-1-B

In Stock: 6

Stock:: 6 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 4 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

This Product Ships FREE

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	99,76 €	99,76 €
	95,66 €	4.783,00 €
250	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Ribbon Cables / IDC Cables
RoHS:
Type:	Coax Ribbon Cable
Connector End A:	Plug
Connector End A Pin Count:	40 Position
Connector End B:	Plug
Connector End B Pin Count:	40 Position
Pitch:	0.8 mm
Gender:	Male / Male
Cable Length:	304.8 mm
Wire Gauge - AWG:	34 AWG
Series:	ERCD
Packaging:	Bag
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CR
Current Rating:	1.3 A
Product:	Edge Rate Coax Cable Assemblies
Product Type:	Ribbon Cables / IDC Cables
Factory Pack Quantity:	1
Subcategory:	Cable Assemblies

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

ERCD-020-12.00-TEU-TED-1-B Datasheet (PDF)

Images


Specification Sheets

Technical Resources

Test Report (PDF)

TARIC:: 8544429090
CNHTS:: 8544421100
USHTS:: 8544200000
ECCN:: EAR99

High-Speed Cable Assemblies

Samtec High-Speed Cable Assemblies include AcceleRate® slim body, ERCD 0.80mm Edge Rate®, HLCD high-speed hermaphroditic, HQCD 0.50mm Q Strip®, and SEAC SEARAY™ series. The AcceleRate cable assembly consists of the ARC6 slim cable body that mates together with the ARF6 series for a secure connection. The ERCD 0.80mm Edge Rate assemblies use Samtec's Eye Speed cable to provide a 14Gbps performance and feature a double-row system to 120 pins and a standard metal latching system. Eye Speed cable technology offers excellent signal integrity performance with an individual copper serve or braid shielding, 26AWG to 38AWG coax and twinax construction, and 20Ω, 50Ω, 85Ω, and 100Ω ratings.
