EJH-110-02-F-D-SM-P-TR

Name: Samtec EJH-110-02-F-D-SM-P-TR
Brand: Samtec
SKU: 200-EJH11002FDSMPTR
Price: 5.47 EUR
Availability: InStock

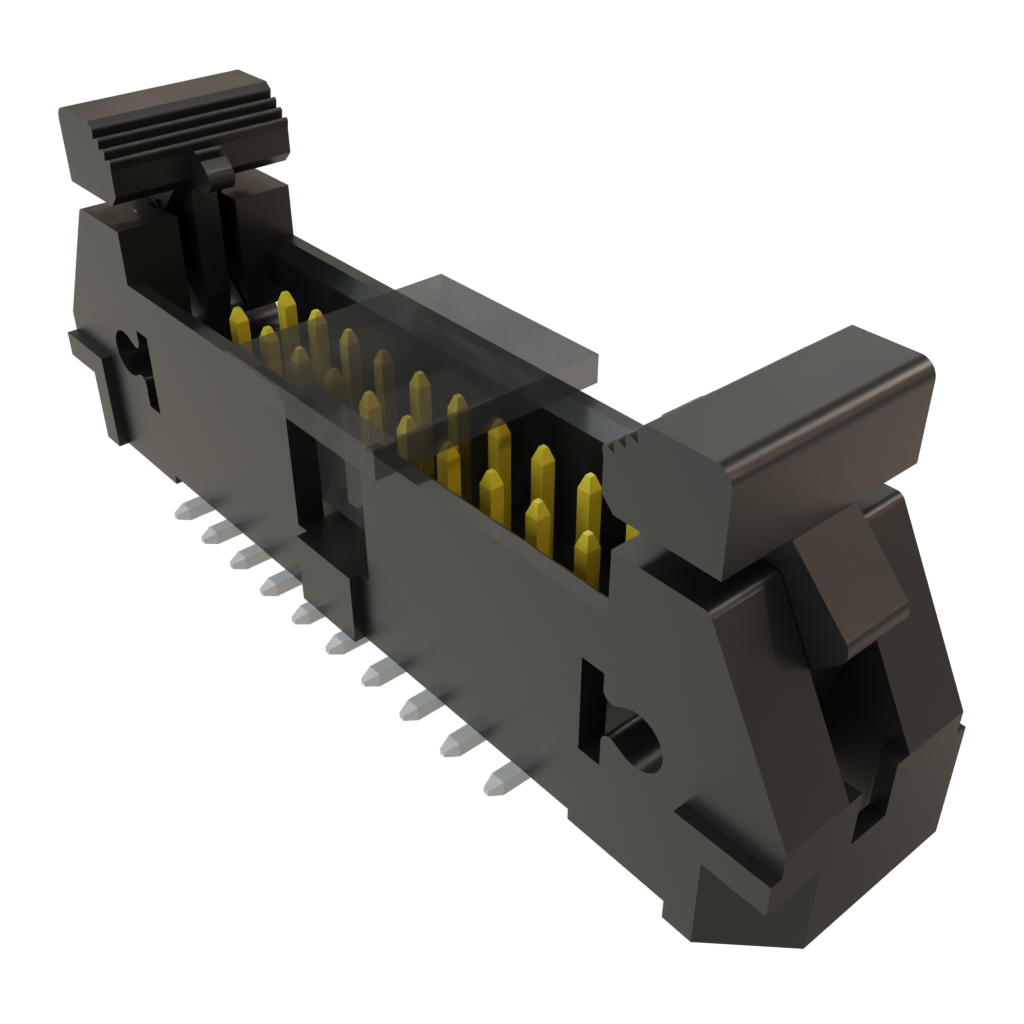

Images are for reference only
See Product Specifications

Mouser No:

200-EJH11002FDSMPTR

Mfr. No:

EJH-110-02-F-D-SM-P-TR

Mfr.:

Samtec

Description:

Headers & Wire Housings .100 Shrouded IDC Ejector Header

Datasheet:

EJH-110-02-F-D-SM-P-TR Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec EJH-110-02-F-D-SM-P-TR

In Stock: 18

Stock:: 18 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 2 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	5,47 €	5,47 €
	5,11 €	127,75 €
	4,47 €	223,50 €
	4,46 €	446,00 €
	4,28 €	2.140,00 €
Full Reel (Order in multiples of 75)
	4,47 €	335,25 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Shrouded
Number of Positions:	20 Position
Pitch:	2.54 mm (0.1 in)
Number of Rows:	2 Row
Row Spacing:	2.54 mm (0.1 in)
Mounting Style:	SMD/SMT
Termination Style:	Solder
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Contact Plating:	Gold
Mating Post Length:	5.72 mm (0.225 in)
Series:	EJH
Application:	Board-to-Cable
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Reel
Packaging:	Cut Tape
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MY
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	75
Subcategory:	Headers & Wire Housings
Unit Weight:	1,650 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Resources

Dimensional Drawing, Footprint, and Part Number Configuration

TARIC:: 8536693000
CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

EJH 2.54mm (.100") Shrouded IDC Ejector Headers

Samtec EJH 2.54mm (.100") Pitch Shrouded IDC Ejector Headers are polarized connectors that feature an ejector mechanism with surface mount, right-angle, or through-hole tail options. These connectors are also available in standard and extended lead styles. Operating in a temperature range of -55°C to +125°C, the EJH Shrouded IDC Ejector Headers mate with the IDSD (-01 lead standard style required) and the HCSD (-02 lead standard style required) components.
