EBCF-1-4-10-V-1-06-V-1

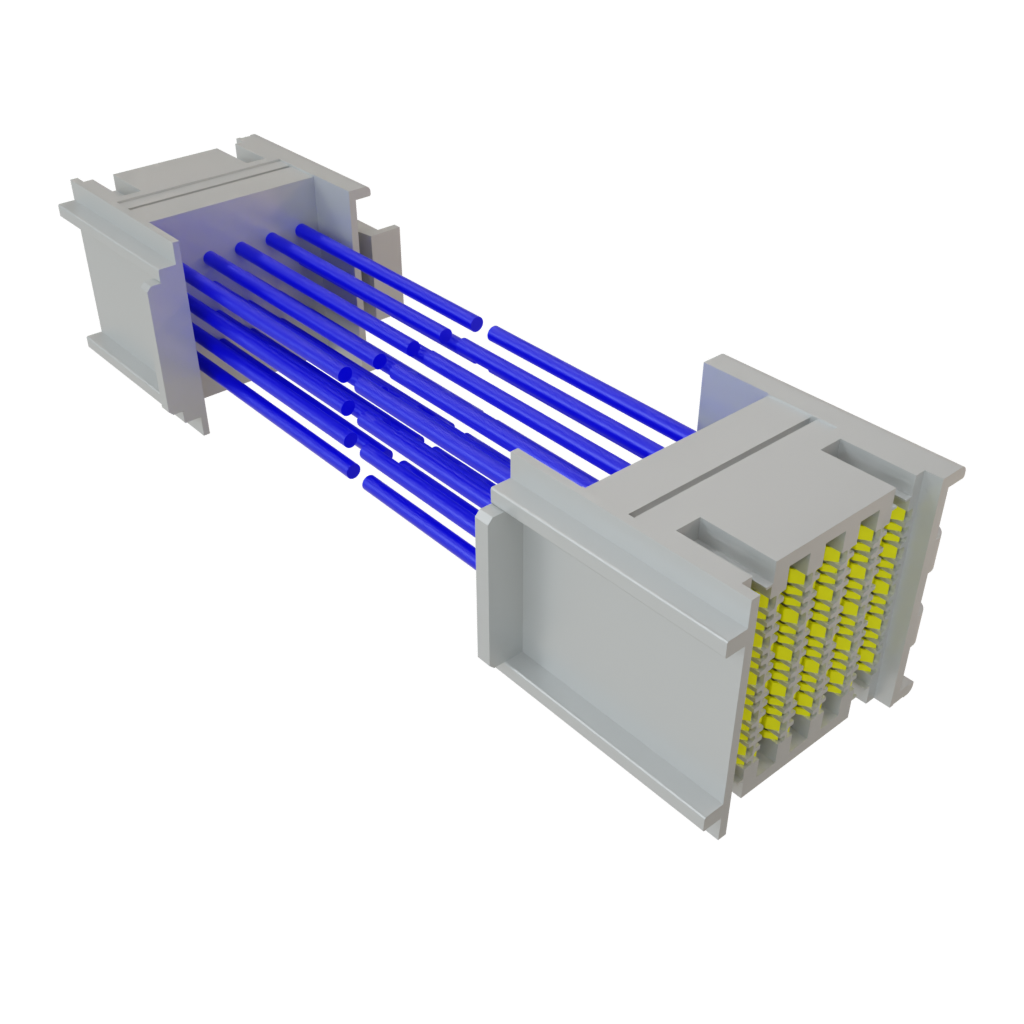

Name: Samtec EBCF-1-4-10-V-1-06-V-1
Brand: Samtec
SKU: 200-EBCF1410V106V1
Price: 314.41 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-EBCF1410V106V1

Mfr. No:

EBCF-1-4-10-V-1-06-V-1

Mfr.:

Samtec

Description:

Rectangular Cable Assemblies ExaMAX 2.00 mm High-Speed Backplane Cable Socket

Datasheet:

EBCF-1-4-10-V-1-06-V-1 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec EBCF-1-4-10-V-1-06-V-1

In Stock: 7

Stock:: 7 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 11 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

This Product Ships FREE

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	314,41 €	314,41 €
	296,55 €	2.965,50 €
50	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Rectangular Cable Assemblies
RoHS:
Series:	EBCF
Product:	Cable Assemblies
Type:	Backplane Cable
Connector End A:	Receptacle
Connector End A Pin Count:	80 Position
Connector End B:	Receptacle
Connector End B Pin Count:	80 Position
Gender:	Female
Cable Length:	6 in
Wire Gauge - AWG:	34 AWG
Current Rating:	4.2 A
Packaging:	Bag
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Pitch:	2 mm
Product Type:	Rectangular Cable Assemblies
Subcategory:	Cable Assemblies
Tradename:	ExaMAX

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Resources

Test Report (PDF)

This functionality requires JavaScript to be enabled.

USHTS:: 8544420000
ECCN:: EAR99

EBCF ExaMAX 2mm High-Speed Backplane Cable Sockets

Samtec EBCF ExaMAX® 2mm High-Speed Backplane Cable Sockets offer a 2.00mm pitch and mate with Samtec EBCM, EBTM, and EBCL products. These cable sockets feature improved signal integrity, increased flexibility and routability, and have 4-pair and 6-pair options available. Multiple end options are provided, including vertical latch and right angle. Samtec EBCF ExaMAX 2mm High-Speed Backplane Cable Sockets provide a 4.2A current rating per pin and an operating temperature range of -55°C to +105°C.

Artificial Intelligence Connectivity Solutions

Samtec Artificial Intelligence (AI) Connectivity Solutions feature an extensive portfolio of high-performance products that support next-generation system designs. These AI solutions are engineered with the complete system in mind, including architectures that demand increased speeds, frequencies, bandwidths, and densities, as well as configurability and scalability. The product lineup consists of high-speed cable assemblies, high-speed board-to-board connectors, high power and signal connectors, and RF cables, assemblies, and connectors. Samtec AI Connectivity Solutions are ideal for next-generation applications, from testing and development to full system optimization support.

ExaMAX® High-Speed Backplane System
