DWM-18-60-G-S-625

Name: Samtec DWM-18-60-G-S-625
Brand: Samtec
SKU: 200-DWM1860GS625
Price: 4.15 EUR
Availability: InStock

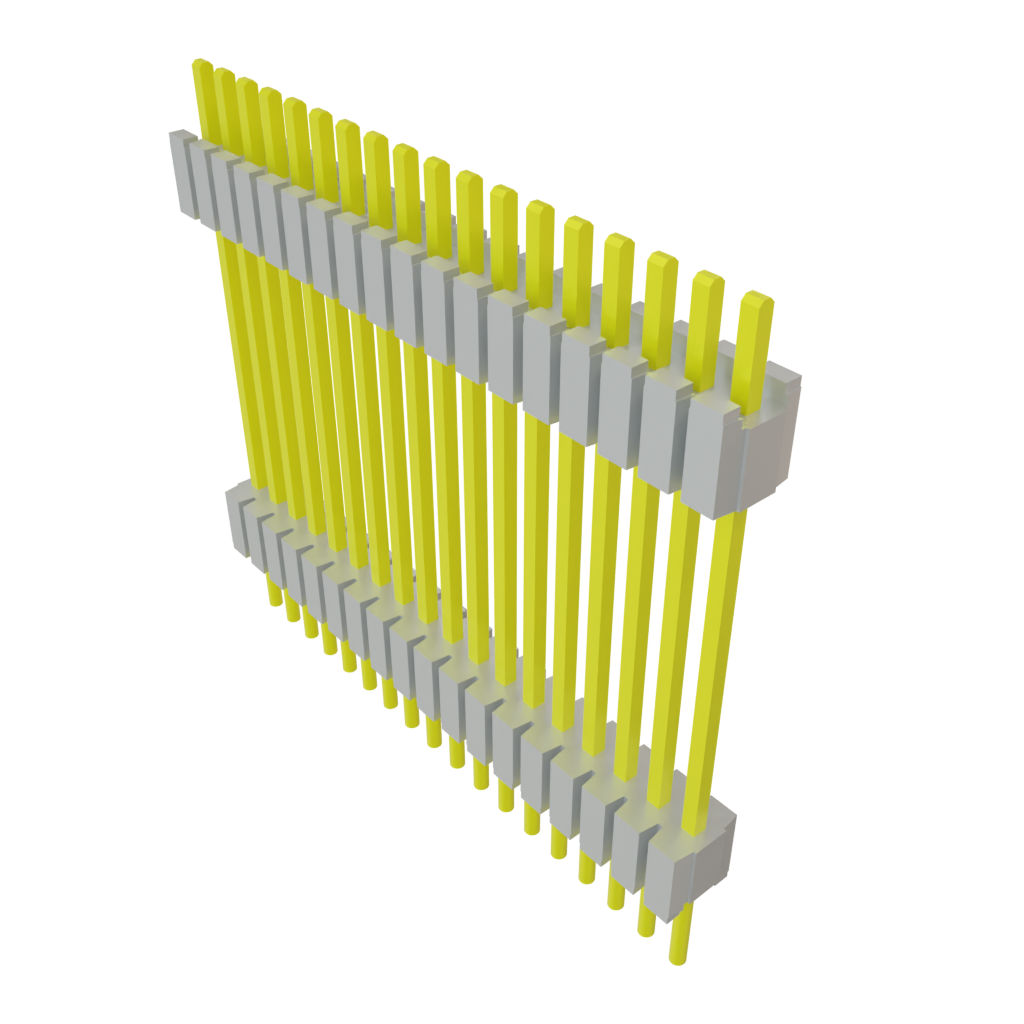

Images are for reference only
See Product Specifications

Mouser No:

200-DWM1860GS625

Mfr. No:

DWM-18-60-G-S-625

Mfr.:

Samtec

Description:

Board to Board & Mezzanine Connectors .050 x .100 Flex Stack

Datasheet:

DWM-18-60-G-S-625 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

Availability

Stock:: An unexpected error occurred. Please try again later.

84 Can Dispatch in 10 Days

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	4,15 €	4,15 €
	3,74 €	93,50 €
	3,48 €	174,00 €
	3,31 €	331,00 €
	3,24 €	1.620,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Headers
Number of Positions:	18 Position
Pitch:	1.27 mm (0.05 in)
Number of Rows:	1 Row
Termination Style:	Solder
Mounting Angle:	Vertical
Stack Height:	15.87 mm
Current Rating:	1 A
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Contact Plating:	Gold
Contact Material:	Phosphor Bronze
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	DWM
Packaging:	Tube
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Flammability Rating:	UL 94 V-0
Mounting Style:	PCB Mount
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	25
Subcategory:	Board to Board & Mezzanine Connectors
Termination Post Length:	3.05 mm
Tradename:	Flex Stack
Unit Weight:	144 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

DWM-18-60-G-S-625 Datasheet (PDF)

Images


Specification Sheets

Technical Resources

Test Report (PDF)

TARIC:: 8536693000
CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Flexible Stacking Connectors

Samtec Flex Stacking Board Connectors feature a large variety of board-to-board connectors with design flexibility. These Samtec board-to-board connector systems are available in a variety of pitches, densities, stack heights, orientations, and other standard or modified options, making it easy to find the right connector for any application. Flex-Stack options include one-piece, low profile pass-through, elevated, hermaphroditic, shrouded, coplanar, parallel, and perpendicular. Post heights are adjustable in increments of 0.005” (0.13mm).
