CLP-108-02-F-D-A-P-TR

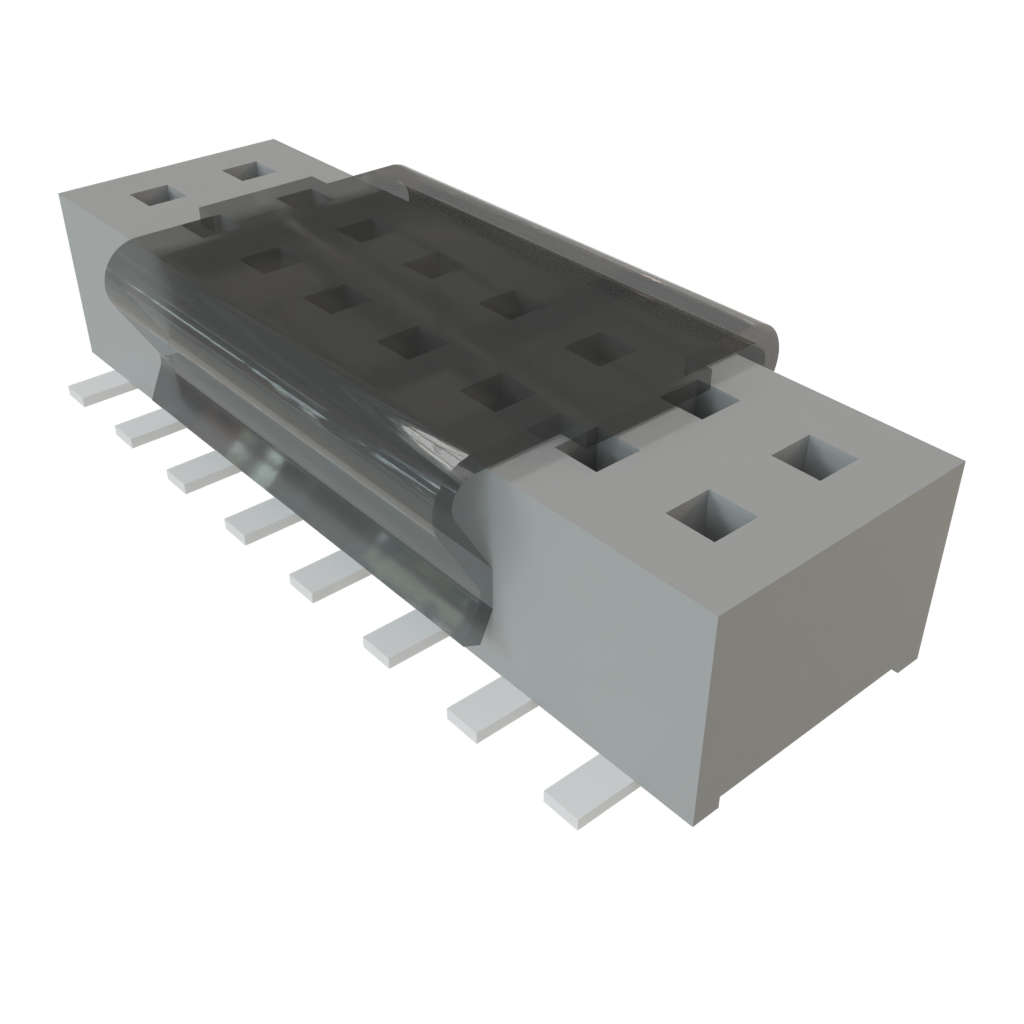

Name: Samtec CLP-108-02-F-D-A-P-TR
Brand: Samtec
SKU: 200-CLP10802FDAPTR
Price: 2.45 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-CLP10802FDAPTR

Mfr. No:

CLP-108-02-F-D-A-P-TR

Mfr.:

Samtec

Description:

Headers & Wire Housings Low Profile Dual-Wipe Socket

Datasheet:

CLP-108-02-F-D-A-P-TR Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec CLP-108-02-F-D-A-P-TR

In Stock: 654

Stock:: 654 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 1 Week Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	2,45 €	2,45 €
	2,08 €	208,00 €
	1,87 €	935,00 €
Full Reel (Order in multiples of 1050)
	1,66 €	1.743,00 €
	1,59 €	3.339,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
RoHS:
Product:	Sockets
Type:	Socket
Number of Positions:	16 Position
Pitch:	1.27 mm (0.05 in)
Number of Rows:	2 Row
Mounting Style:	SMD/SMT
Termination Style:	Solder
Mounting Angle:	Straight
Contact Gender:	Socket (Female)
Contact Plating:	Gold
Series:	CLP
Tradename:	Tiger Claw
Application:	Board-to-Board
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Reel
Packaging:	Cut Tape
Brand:	Samtec
Contact Material:	Phosphor Bronze
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Current Rating:	3.4 A
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Housing Material:	Liquid Crystal Polymer (LCP)
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	1050
Subcategory:	Headers & Wire Housings
Voltage Rating:	280 VAC, 395 VDC

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

CLP-108-02-F-D-A-P-TR Datasheet (PDF)

Images


Specification Sheets

Technical Resources

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Tiger Claw™ CLM, CLP & CLT Dual Wipe Socket Strips

Samtec Tiger Claw™ Dual Wipe Socket Strips are available in 1.00mm, 1.27mm, and 2.00mm pitches and feature a low-profile Tiger Claw contact system. These rugged sockets are insulated with black liquid crystal polymer and withstand 100 mating cycles. Samtec Tiger Claw socket strips have a -55°C to +125°C operating temperature and are RoHS compliant.
