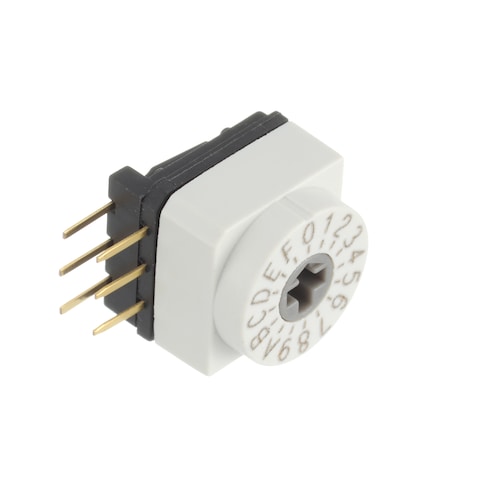

RDS3-16S-1012-RA-254-D

Same Sky
179-S316S1012RA254D
RDS3-16S-1012-RA-254-D

Mfr.:

Description:
Coded Rotary Switches 16 Position Through Hole 2.54 mm Pitch Right Angle Flush Cross Actuator w/ Cap

Datasheet:
ECAD Model:
Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.
More Information
Learn more about Same Sky RDS3-16S-1012-RA-254-D
Mouser does not presently sell this product in your region.

Availability

Stock:

Product Attribute Attribute Value Select Attribute
Same Sky
Product Category: Coded Rotary Switches
Delivery Restriction:
 Mouser does not presently sell this product in your region.
RoHS:
16 Position
PCB Mount
Through Hole
Tube
Actuator Length: 2.2 mm
Actuator Material: Polyoxymethylene (POM)
Actuator Style: Rotary
Brand: Same Sky
Country of Assembly: Not Available
Country of Diffusion: Not Available
Country of Origin: KR
Current Rating: 150 mA, 200 mA
Illuminated: Non-Illuminated
Lamp Type: -
Life: 10000 Cycle
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Product Type: Rotary Switches
Factory Pack Quantity: 50
Subcategory: Switches
Voltage Rating DC: 42 VDC
Products found:
To show similar products, select at least one checkbox
Select at least one checkbox above to show similar products in this category.
Attributes selected: 0

Datasheet

Models

This functionality requires JavaScript to be enabled.

CNHTS:
8536500090
USHTS:
8536509020
KRHTS:
8536501000
ECCN:
EAR99

DIP Switches

Same Sky DIP Switches offer piano, rotary, and slide actuator types with 24VDC to 50VDC rated voltage range, 400mA maximum current, and operating temperatures from -60°C to +125°C. These series feature a through-hole or surface mount design, a range of actuator levels, and long, short, or right-angle pins. Same Sky DIP switches further provide a 1.27mm, 2.54mm, or 5.08mm pitch and pole options from 1 up to 16 while meeting the UL 94 V-0 flammability rating and RoHS compliance.
