617360001

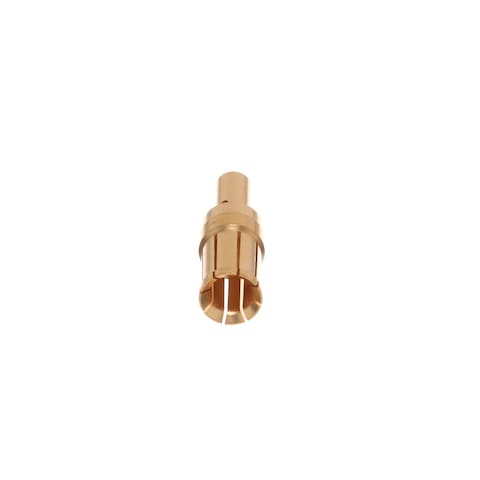

Name: Radiall 617360001
Brand: Radiall
SKU: 501-617360001
Price: 87.42 EUR
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

501-617360001

Mfr. No:

617360001

Mfr.:

Radiall

Description:

Heavy Duty Power Connectors EPX CT #5 SKT CRP RDC BARL

Datasheet:

617360001 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Radiall 617360001

Availability

Stock:: 0

You can still purchase this product for backorder.

An unexpected error occurred. Please try again later.
Factory Lead Time:: 18 Weeks Estimated factory production time.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

This Product Ships FREE

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	87,42 €	87,42 €
	79,18 €	791,80 €
	76,14 €	1.903,50 €
	73,59 €	3.679,50 €
	69,53 €	6.953,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Radiall
Product Category:	Heavy Duty Power Connectors
REACH - SVHC:
Product:	Contacts
Termination Style:	Crimp
Insert/Contact Gender:	Socket (Female)
Contact Plating:	Gold
Contact Material:	Copper Alloy
Wire Gauge Max:	12 AWG
Packaging:	Bulk
Tradename:	EPX
Brand:	Radiall
Contact Gender:	Socket (Female)
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CH
Product Type:	Heavy Duty Power Connectors
Factory Pack Quantity:	1
Subcategory:	Power Connectors

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

617360001 Datasheet (PDF)

PCN

Product Change Notification (PDF)

CNHTS:: 8538900000
CAHTS:: 8538909020
USHTS:: 8538908140
BRHTS:: 85389090
ECCN:: EAR99

EPX® Rectangular Modular Connectors

Radiall EPX® Rectangular Modular Connectors are space-saving with high-density inserts and stackable shells. The EPX connectors are modular and expandable with lightweight shells from size 1 to multi-gang versions. Radiall EPX inserts can cover various contact technologies including signal, power, quadrax, and fiber optics. The backshells of these heavy-duty power connectors are available in aluminum and composite versions. The insert of these connectors can be easily installed and removed from the shell. The EPX shell can accommodate a wide variety of inserts for signal, power, coax, data bus, fiber-optic, and high-frequency BMA contacts. The EPX rectangular modular connectors provide an excellent trade-off between the number of available contacts and the space used. These connectors meet the most stringent requirements of the OEM and are ideal for various applications including disconnect panel.
