2800867

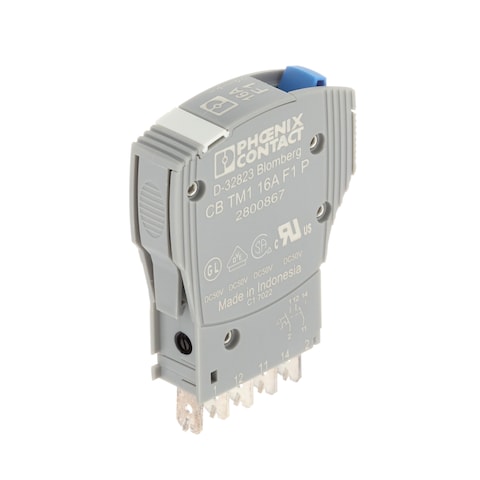

Name: Phoenix Contact 2800867
Brand: Phoenix Contact
SKU: 651-2800867
Price: 41.89 EUR
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

651-2800867

Mfr. No:

2800867

Mfr.:

Phoenix Contact

Description:

Circuit Breakers CB TM1 16A F1 P

Datasheet:

2800867 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Phoenix Contact 2800867

Availability

Stock:: 0

You can still purchase this product for backorder.

An unexpected error occurred. Please try again later.
Factory Lead Time:: 11 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	41,89 €	41,89 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Phoenix Contact
Product Category:	Circuit Breakers
RoHS:
Series:	CB TM1
Product:	Circuit Breaker
Type:	Thermal Magnetic
Current Rating:	16 A
Voltage Rating DC:	50 VDC
Number of Poles:	1 Pole
Actuator Type:	Slide
Minimum Operating Temperature:	- 30 C
Maximum Operating Temperature:	+ 60 C
Illuminated:	Non-Illuminated
Brand:	Phoenix Contact
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	ID
Height:	45 mm
Length:	52 mm
Mounting Style:	Pluggable
Product Type:	Thermomagnetic Circuit Breakers
Factory Pack Quantity:	1
Subcategory:	Circuit Breakers
Termination Style:	Quick Connect
Voltage Rating:	50 V
Width:	12.3 mm
Part # Aliases:	CB_TM1_16A_F1_P CBTM116AF1P
Unit Weight:	41,400 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

2800867 Datasheet (PDF)

PCN

Specification Sheets

Conflict Material Declaration (Spreadsheet)

TARIC:: 8536201090
CNHTS:: 8536300000
CAHTS:: 8536309090
USHTS:: 8536200020
JPHTS:: 8536300006
KRHTS:: 8536300000
ECCN:: EAR99

CB Pluggable Circuit Breakers

Phoenix Contact CB Pluggable DIN Rail Circuit Breakers offer thermal-magnetic and electronic circuit breakers designed to plug into a DIN Rail mounted base. The compact design features push-in wire termination technology and precise nominal current levels. A Selective Fuse Blow (SFB) trip option is available for the thermal-magnetic type, and visual status with remote reset / On-Off controls are available for electronic type. SFB technology triggers standard circuit breakers magnetically and quickly to provide up to six times the nominal current for 12ms. Supply / remote signaling can be bridged with CLIPLINE complete accessories. The bases are also available with a UT screw termination.

Control Cabinet Solutions

Phoenix Contact Control Cabinet Solutions offer flexibility, innovation, and cost-effective products for applications. Ranging from power supplies and DIN-rail terminal blocks to relays, circuit breakers, lighting, and more, Phoenix Contact offers a single-source solution for all control cabinet needs. Control cabinet solutions are designed to the required standards and directives, enabling the finished products to meet the highest requirements.
