1609565

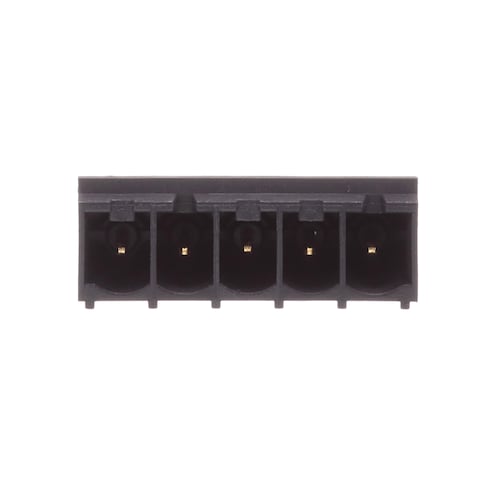

Name: Phoenix Contact 1609565
Brand: Phoenix Contact
SKU: 651-1609565
Price: 2.46 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

651-1609565

Mfr. No:

1609565

Mfr.:

Phoenix Contact

Description:

Heavy Duty Power Connectors MSTBAV2,5/5GB5,08 5P MSTB HEADER

Datasheet:

1609565 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Phoenix Contact 1609565

In Stock: 43

Stock:: 43 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 5 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	2,46 €	2,46 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Phoenix Contact
Product Category:	Heavy Duty Power Connectors
RoHS:
Product:	Inserts
Current Rating:	16 A
Number of Positions:	5 Position
Termination Style:	Solder Pin
Voltage Rating:	24 V
Insert/Contact Gender:	Male
Housing Material:	Polyamide (PA)
Contact Plating:	Gold
Contact Material:	Copper Alloy
Tradename:	PLUSCON Data
Brand:	Phoenix Contact
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	DE
Housing Gender:	Female
Maximum Operating Temperature:	+ 70 C
Minimum Operating Temperature:	- 40 C
Mounting Angle:	Straight
Mounting Style:	Panel
Pitch:	5.08 mm
Product Type:	Heavy Duty Power Connectors
Factory Pack Quantity:	50
Subcategory:	Power Connectors
Part # Aliases:	VS-MSTBVA_2,5/_5-GB-5,08-BK-A VSMSTBVA255GB508BKA
Unit Weight:	2,432 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

TARIC:: 8536693000
CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

HEAVYCON Connectors

Phoenix Contact HEAVYCON Connectors feature heavy-duty components that protect interfaces and ensure secure power, data, and signal transmission under the harshest conditions. The robust housings and matching contact inserts can be combined across series types to create the right plug-in connector for an application. The entire HEAVYCON product line consists of metal and plastic hoods and housings, contact inserts, cable glands, and accessories. The standard connectors are versatile with corrosion-resistant metal housing and single- or double-locking latches. The EVO products offer a flexible selectable cable outlet direction via swiveled bayonet locking. The HEAVYCON Advance series is robust without compromise and cost-effective with the direct mounting option. Phoenix Contact HEAVYCON Standard, EVO, Advanced, D7, and HPR series comprise the complete HEAVYCON solution. HEAVYCON Complete provides the right connector for every application.

Everything Goes Data

Phoenix Contact provides optimized components with shielding that meet specifications for reliable data transmission in various applications. Today's digital world relies on electrification, networking, and automation, requiring the manufacturing of smart networked devices with many more end-to-end interfaces. The growing demand for the performance of connection technology in field applications means intelligent devices are becoming increasingly networked, increasing the total number of interfaces. Data connectivity forms the basis for high data rates and stable connections, while consistent quality in data transmissions depends on the interaction of all cables and connector components. Phoenix Contact offers suitable connections on the device and in the field for the designer's applications.

Variosub Push-Pull Ethernet and Power Connectors

Phoenix Contact offers the Variosub Push-Pull Ethernet and Power Connector system that provides IP67 protection for data and power transmission. An RJ45 version for copper data transmission is easily assembled in the field to ensure compatibility with control cabinet solutions. For power transmission, a COMBICON device connection technology is available and features a new five-position power connector to power the device via two 24V circuits.
